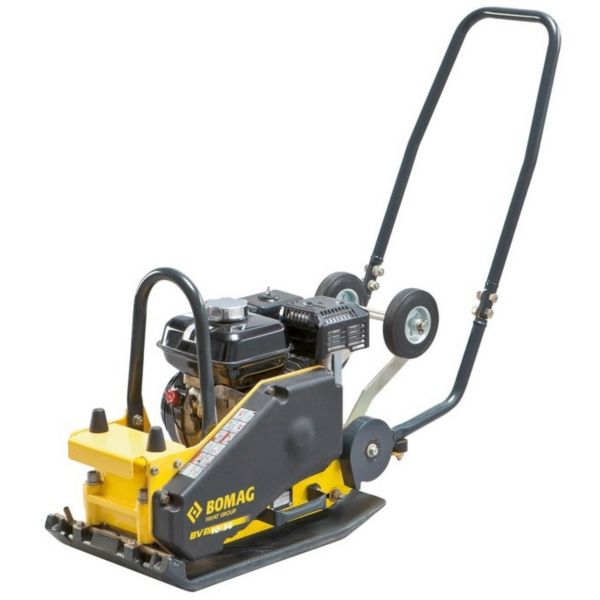

BOMAG BVP 10/30 300mm Petrol Compaction Plate

Standard equipped with the time-tested and proven Honda gasoline engine

Large and stable crane yoke that can also be used for steering sideways

Transporting and storing made simple thanks to the guide handle that can be swung forwards

Sturdy design minimizes maintenance costs: lifelong lubricated ball bearings and high-quality and thus more durable V-belt

• 2000/14/EC
• 2014/30/EU
• EN 500-1:2006 + A1:2009
• EN 500-4:2011 EN ISO 13766-1:2018

The lightweight and compact design allows the user to easily manoeuvre and transport the machine will fit into a small car.

Light enough to allow the operator to manually reverse the plate.

Effective compaction is achieved through the use of a Dual Force Baseplate.

Compact size means the machine is well suited to confined areas.

Air cooled 4-stroke OHV petrol engine,

horizontal shaft

Operator Handle: Steel

Hand Grip: Rubber

Main Frame: Steel

Base Plate: Steel

Eccentric Weight: Steel

Petrol Engine Housing: Aluminium

Petrol Engine Covers: Synthetic Material

Various Parts: Steel & Aluminium

- 2008 No. 1597 Supply of Machinery (Safety) Regulations 2008

- 2001 No. 1701 Noise Emission in the Environment by Equipment for use

Outdoors Regulations 2001

- EN ISO 12100:2010 Safety of machinery

- EN 500-4:2011 Mobile road construction machinery. Safety.

- ISO 3744:2010 Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure

Operator Handle: Steel

Base Plate: Steel

Eccentric Weigh: Steel

Vibrator Housing: Aluminium

Engine Housing: Aluminium

Engine Covers: Synthetic Material

Various Parts: Steel & Aluminium

Low-maintenance design for low TCO

Low hand-arm vibration

Control handle

Low-maintenance design for low TCO

Low hand-arm vibration

Control handle

Large and stable crane yoke that can also be used for steering sideways

Transporting and storing made simple thanks to the guide handle that can be swung forwards

Sturdy design minimizes maintenance costs: lifelong lubricated ball bearings and high-quality and thus more durable V-belt

• 2000/14/EC
• 2014/30/EU
• EN 500-1:2006 + A1:2009
• EN 500-4:2011 EN ISO 13766-1:2018

Trusted Bolt-On Vibrator with increased bearing life

Vibration Damped Handle Design

Rounded Baseplate Edges improving surface finish on asphalt

Fully enclosed belt cover increasing belt life

Including a vibrator seal which prevents ingress behind the pulley

Furthermore, it has angled AV Mounts providing increased belt stability

Textured Paint finish for greater durability

Offers ultra-compaction ratios of 1540 Kg/m2 available through the range

4-stroke single cylinder

OHV petrol engine

25° inclined cylinder

horizontal shaft

Light and manoeuvrable

Robust and reliable

Safe transport

Maintenance Free Exciter

Fast running and simple handling

4-stroke single cylinder

OHV petrol engine

25° inclined cylinder

horizontal shaft

Low Hand Arm Vibration design for longer, safe usage times.

High performance 11kN vibration unit for excellent forward travel speed.

Sealed oil-filled vibrator with top quality bearings for reliability and durability.

Front and rear manual handling points for an easy 2-person lift.

Removable and ultra low folding operator’s handle for ease of transportation and storage.

8mm thick long life base plate for optimum compaction and reliability.

Engineered to be robust and durable for rental and heavy contractor use.

Optional Block Paving Pad available.

- 2006/42/EC - New machinery directive

- 2000/14/EC - Noise - equipment for use outdoors

- EN ISO 12100:2010 Safety of machinery

- EN 500-4:2011 Mobile road construction machinery. Safety.

- ISO 3744:2010 Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure

Operator Handle: Steel

Main Frame: Steel

Baseplate: Steel

Hand Grips: Rubber

Engine: Aluminium

Flexible Mounts: Steel & Rubber

Various Parts: Steel & Aluminium

Hours of efficient work

Easy handling

Protect the paving

Saving storage space

Only weighs 45 kg so it’s easy to handle.

Heavy duty long life bearings.

Centrifugal clutch pulley as standard.

Fully folding handle, will fit in the boot of most cars.

Rubber mat available for block paving.

4-stroke single cylinder

OHV petrol engine

25° inclined cylinder

horizontal shaft

Engine: Aluminium and steel

Baseplate: Steel

Engine Frame: Steel

Engine Bedplate: Steel

Belt Cover: High Density Polyethylene

Handle: Steel and Polyurethane

Anti vibration Mounts: Steel and rubber

Powerful petrol engine.

Engine power transmitted to the exciter system through a centrifugal clutch and V belt.

Optional water sprinkler system for work on bituminous surfaces.

Well-protected, robust centrifugal clutch with wear-resistant V belt.

Service-friendly exciter unit with long lifetime.

Wear-resistant, self-cleaning base plate.

Low-cost upkeep.

Good match for many applications.

Easy for new users to operate.

Vibration-isolated to reduce stress on the operator

Foldable and removable, crucial attributes when working in confined areas or during transport.

4-stroke single cylinder

OHV petrol engine

25° inclined cylinder

horizontal shaft
