3t Diesel Mini/Micro Tracked Excavators

Name: 3t Diesel Mini Excavators | Sunbelt Rentals
SKU: 10000702

Product Code: 10000702

Introducing our 3t diesel mini/micro tracked excavator, the perfect solution for tight spaces and smaller job sites. This compact yet powerful excavator boasts exceptional manoeuvrability and efficiency, making it ideal for landscaping, utility work, and general excavation tasks. Its robust diesel engine ensures reliable performance, while the tracked design provides stability on various terrains. Experience the convenience and versatility of this mini excavator, designed to tackle your toughest tasks with ease. Product ID: 10000702

We'll pick the exact model you receive, as availability can change day-to-day.

They all perform to the same high standard, so whichever one you receive will do the job perfectly.

Choose a product

Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

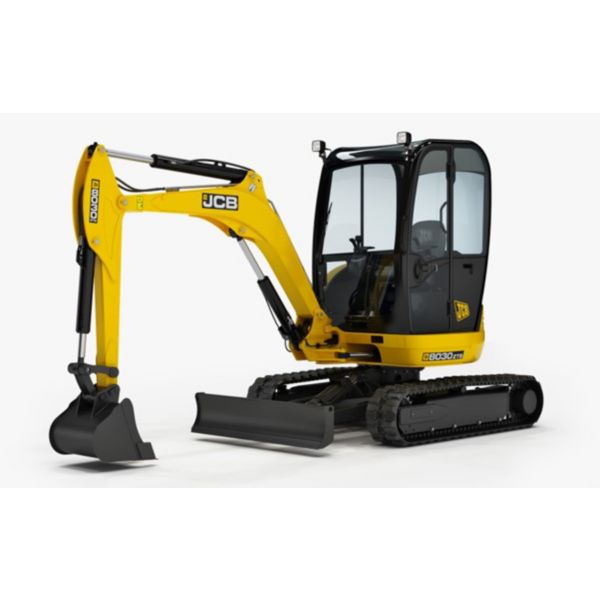

The JCB 8030 ZTS Tier 3 mini excavator is designed for exceptional performance in tight spaces. Its compact dimensions ensure agility on site, while the powerful engine delivers robust digging capability. Perfect for landscaping and construction projects, this machine combines reliability with efficiency, making it an ideal choice for both professional contractors and DIY enthusiasts.

Item ID: 50002881

Reference: 021025

Length (mm)

4280

Height (mm)

2470

Width (mm)

1650

Weight (kg)

3217

Ground Clearance (mm)

300

Length - Undercarriage (mm)

2050

Kingpost Clearance (mm)

620

Length - Cab/Canopy (mm)

1200

Width - Cab/Canopy (mm)

980

Height - Cab/Canopy (mm)

2470

Height - Dump (Range) (m)

3.2

Distance - Sprocket Idler Centres (mm)

1600

Radius - Tailswing (m)

0.8

Width - Dozer (mm)

350 - 1650

Reach - Infront of Tracks (m)

0.68

Width - Substructure (mm)

1650

Width - Over Tracks (mm)

1650

Distance - Track Centres (mm)

1590

Height - Track (mm)

500

Width - Track (mm)

250

Gauge - Track (m)

1.35

Height - Dig (max) (m)

4.45

Reach - Digging (max) (m)

50.3

Reach - Digging on Ground (max) (m)

4.9

Depth - Dig Below Ground (m)

0.62

Height - Dozer Above Ground (max) (m)

0.41

Depth - Dig Dozer Up (m)

2.79

Depth - Dig Dozer Down (m)

3.12

Height - To Dipper Nose Pivot Pin (mm)

3800

Radius - Front Swing No Offset (m)

2.15

Radius - Front Swing Fully Offset (m)

2.01

Length - Dipper (mm)

1300

Depth - Vertical Wallcut (m)

1.74

Capacity - Hydraulic System (L)

Capacity - Fuel Tank (L)

Capacity - Hydraulic Tank (L)

Torque (Nm @ rpm)

96 (70.8) @ 1600

No. of Cylinders

Displacement (L)

1.496

Gradeability (%)

Cooling System

Water Cooled

Speed - Travel (Range) (mph)

2.7

Pressure - Working (bar)

Power - Tractive (kN)

24.6

Payload (t)

3.2

Capacity - Cooling Tank (L)

8.5

Pump Type

2 Variable and 1 Gear

Capacity - Engine Oil (L)

4.5

Output - Nominal (lpm)

102

Motor - Hydraulic

Piston

Tailswing Type

Zero

Tearout - Bucket (max) (kN)

Tearout - Dipper (max) (kN)

Speed - Slew (rpm)

9.6

No. of Bottom Rollers

Pressure - Ground Bearing (kg/cm2)

0.31

Track Tensioning Type

Grease

Angle - Boom Swing Right (°)

Angle - Boom Swing Left (°)

Angle - Dipper Rotation (°)

119

Angle - Approach (°)

24.5

Angle - Bucket Rotation (°)

186

Capacity - Bucket (m3)

0.1–4.3

Weight - With Steel Tracks (kg)

+70

Weight - FOPS Guard (kg)

+36

Pressure - Main Relief (bar)

190 - 245

Flow Rate - Hydraulic Aux (L)

190
