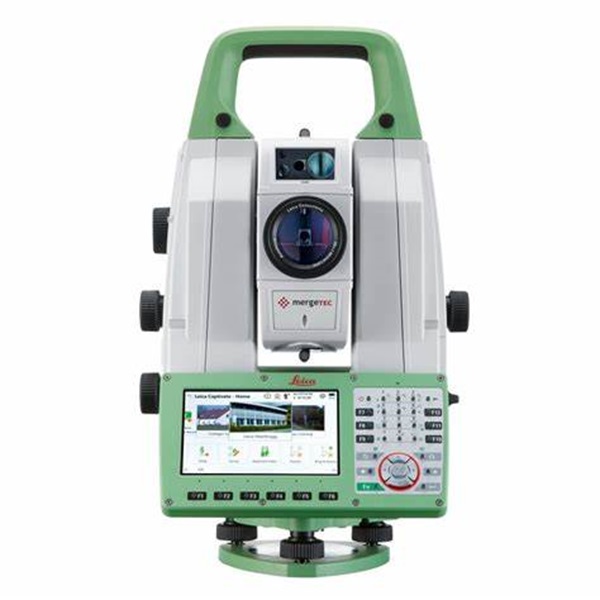

AntennaSmartAntenna, Radio Antenna, Bluetooth (Integrated), WLAN (Integrated) - Gain (dBi): 2
Frequency2402 – 2480MHz (Bluetooth) / 2400 – 2473MHz (WLAN), channel 1-11
HumidityMax 95% non condensing
InterfacesRS232, USB, Bluetooth®, WLAN
Operating System / ProcessorTI OMAP4430 1GHz Dual-core ARM® Cortex™- A9 MPCore™
Ports- Serial/USB: 8 pin LEMO-1 for power, communication, data transfer
- RadioHandle: Hotshoe connection for RadioHandle with Remote Mode and SmartAntenna Adapter with SmartStation
- Bluetooth: Bluetooth module for communication
- WLAN: WLAN module for communication
- USB Host Port: USB memory stick port for data transfer
Purpose/Made forIdeally suited for tasks from simple surveys to complex applications.
TechnologyWindows EC7 / Leica Captivate and its apps, supports onsite and realtime decisions
Level- Compensation: Centralised quadruple axis compensation
- Circular level sensitivity: 6ft/2 mm
- Electronic level resolution: 2 inch
Maintenance / Calibration- Blow dust off lenses and prisms.
- Never touch the glass with your fingers.
- Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components.
TelescopeMagnification / Focus Range: 30 x / 1.7m to infinity
Recording- Resolution / Frame rate: 5 MPx CMOS / up to 20 fps
- Field of view (overview / telescope): 19.4° / 1.5°
Storage- Internal: 2GB
- External: SD card 1 GB or 8 GB
Controls- Display: 5 (inch), WVGA, colour, touch, both faces
- Keyboard: 37 keys, illumination
Display & Keyboard- Display: 5 (inch), WVGA, colour, touch, both faces
- Keyboard: 37 keys, illumination
Data Transfer / CommunicationsData can be transferred in various ways. SD cards can directly be used in an OMNI drive as supplied by Leica Geosystems. Other PC card drives can require an adaptor.
Laser ClassClass: 3R
Type: Coaxial, visible red laser
Carrier wave: 658 nm
Measuring system: System analyser basis 100 MHz - 150 MHz
CompensationAll Types: 0.5 inch, 0.15 mgon, ±4, 0.07 gon
Accuracy - Angular1 inch (0.3 mgon)
AutoHeight- Distance accuracy: 1.0 mm (1 Sigma)
- Distance range: 0.7 m to 2.7 m
Automatic Corrections- Line of sight error
- Vertical index error
- Tilting axis error
- Standing axis tilt
- Earth curvature
- Refraction
- Circle eccentricity
- ATRplus zero point error
- Compensator index error
- Telescope camera zero point error
CharacteristicsAbsolute, continuous, quadruple
Conditions - Atmospheric- Range A: Strong haze, visibility 5 km; or strong sunlight, severe heat shimmer
- Range B: Light haze, visibility about 20 km; or moderate sunlight, slight heat shimmer
- Range C: Overcast, no haze, visibility about 40 km; no heat shimmer
- Range D: Object in strong sunlight, severe heat shimmer
- Range E: Object in shade, sky overcast
- Range F: Underground, night and twilight
Electronic Guide Light (EGL)360° prism (GRZ4, GRZ122): 300m / typically 5s
Laser PlummetType: Visible red laser class 2
Location: In standing axis of instrument
Accuracy: Deviation from plumbline: 1.5 mm (2 sigma) at 1.5 m instrument height
Diameter of laser point: 2.5 mm at 1.5 m instrument height
LOC8Integrate with LOC8 – Lock & Locate
Data - Scan3D point cloud including true colour, intensity and signal-to-noise data
Duration - Scan- Full dome scan 400gon x 155gon: Resolution 50mm @ 15m, duration 12mins
- Band Scan 400gon x 50gon: Resolution 12.5mm @ 50m, duration 45mins
Range / Range noise - 1 sigma (max)- 30 kHz mode: 60m / 3mm @ 50m
- 8 kHz mode: 150m / 1.5mm @ 50m
- 1 kHz mode: 300m / 1.0mm @ 50m
- 1 Hz mode: 1,000m / 0.6mm @ 50m
Speed - Lock (m/s)Rotation speed / Time to change face: Maximum 400 gon (360°) per s / typically 2.9s
Speed - Scan Rate30.000 Hz / 30,000 points per second
