0.8t Diesel Mini/Micro Tracked Excavators

Name: 0.8t Diesel Mini Excavators | Sunbelt Rentals
SKU: 10000698

Product Code: 10000698

The 0.8t diesel mini/micro tracked excavators are compact, efficient machines ideal for tight spaces. With a safe working load of 0.8t and low emissions, they ensure optimal performance while minimising environmental impact. Perfect for various construction tasks, these excavators are a reliable choice for any project. Product ID: 10000698

We'll pick the exact model you receive, as availability can change day-to-day.

They all perform to the same high standard, so whichever one you receive will do the job perfectly.

Choose a product

Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

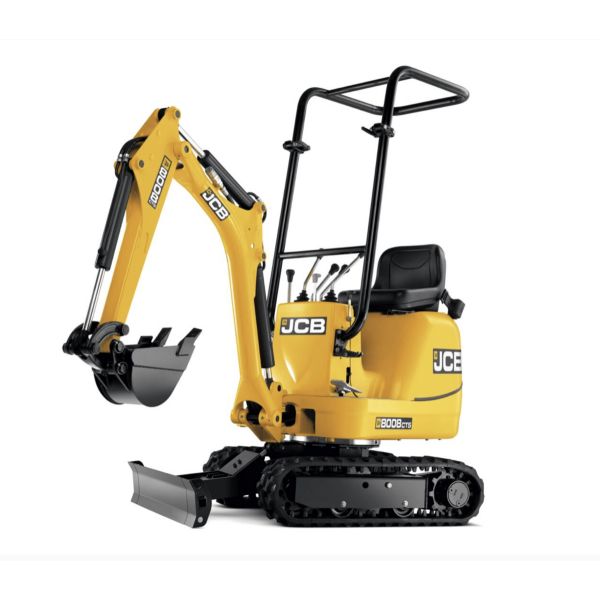

The JCB 8008 CTS Tier 4 is a compact and efficient mini excavator, ideal for tight spaces on construction sites. With impressive digging capabilities and a robust build, it ensures optimal performance and reliability. Designed for ease of operation, this model combines power with versatility, making it a perfect choice for your excavation needs.

Item ID: 50002863

Reference: 021005

Length (mm)

2680

Height (mm)

2310

Width (mm)

700

Weight (kg)

950

Ground Clearance (mm)

130

Length - Undercarriage (mm)

1170

Kingpost Clearance (mm)

360

Height - Dump (Range) (m)

1.98

Distance - Sprocket Idler Centres (mm)

867

Radius - Tailswing (m)

0.8

Height - Dozer (mm)

200

Width - Dozer (mm)

700 - 900

Width - Substructure (mm)

700

Width - Over Tracks (mm)

700 - 870

Width - Track (mm)

180

Height - Dig (max) (m)

2.48

Reach - Digging on Ground (max) (m)

3.11

Depth - Vertical Dig (max) (m)

1.48

Depth - Dig Dozer Up (m)

1.69

Radius - Slew/Boom Swing (m)

1.24

Length - Dozer Cut Above Ground (m)

0.2

Length - Dozer Cut Below Ground (m)

0.11

Capacity - Hydraulic System (L)

Capacity - Fuel Tank (L)

11.5

Capacity - Hydraulic Tank (L)

Torque (Nm @ rpm)

46 @ 1800

No. of Cylinders

Displacement (L)

0.762

Gradeability (%)

Speed - Travel (Range) (mph)

1.12

Power - Tractive (kN)

7.75

Payload (t)

0.95

Aspiration

Naturally Aspirated

Pump Type

2 section gear

Capacity - Engine Oil (L)

Output - Nominal (lpm)

11.2 x 2

Capacity - Water System (L)

2.6

Tailswing Type

Conventional

Tearout - Bucket (max) (kN)

9.3

Tearout - Dipper (max) (kN)

4.6

Speed - Slew (rpm)

No. of Bottom Rollers

Pressure - Ground Bearing (kg/cm2)

0.23

Track Tensioning Type

Grease

Angle - Boom Swing Right (°)

Angle - Boom Swing Left (°)

Angle - Bucket Rotation (°)

191

Pressure - Main Relief (bar)

90 - 170

Flow Rate - Hydraulic Aux (L)

22.4

Weight - 2 Post TOPS (kg)
