13t Diesel Tracked Excavators Stage V HFR TU

Name: 13t Diesel Excavators Stage V HFR TU | Sunbelt Rentals
SKU: 10000711

Product Code: 10000711

Discover our advanced 13-tonne diesel tracked excavator, equipped with cutting-edge human form recognition technology. This machine is designed for superior performance in construction and excavation tasks, offering exceptional power and manoeuvrability on any site. The innovative human form recognition feature enhances safety by detecting personnel in the vicinity, ensuring a secure working environment. Experience efficiency and peace of mind with this state-of-the-art excavator. Product ID: 10000711

We'll pick the exact model you receive, as availability can change day-to-day.

They all perform to the same high standard, so whichever one you receive will do the job perfectly.

Choose a product


Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

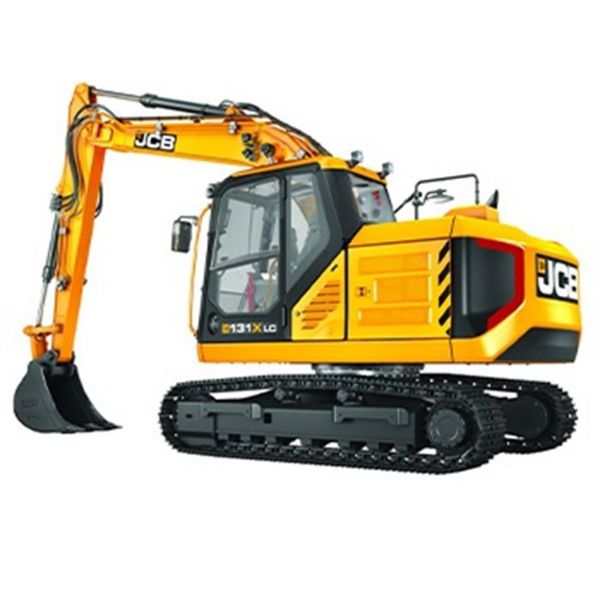

The JCB 131X Stage V HFR is a robust and efficient mini excavator, ideal for tight spaces on construction sites. With its powerful performance and compact design, it delivers exceptional versatility and precision for various tasks. Perfect for both professionals and DIY enthusiasts.

Item ID: 50002912

Reference: 021806

Length (mm)

7660

Height (mm)

3000

Width (mm)

2490

Weight (kg)

14819

Ground Clearance (mm)

430

Bore & Stroke (mm)

92 and 112

Length - Track (mm)

2870

Length - Undercarriage (mm)

3590

Height - Cab/Canopy (mm)

2870

Height - Dump (Range) (m)

2.39 - 6.68

Radius - Tailswing (m)

2.15

Width - Substructure (mm)

2490

Width - Over Tracks (mm)

2490 - 2840

Height - Track (mm)

810

Gauge - Track (m)

1.99

Height - Dig (max) (m)

9.16

Reach - Digging (max) (m)

8.39

Reach - Digging on Ground (max) (m)

8.24

Depth - Dig Below Ground (m)

5.56 - 6.16

Counterweight Clearance (mm)

910

Depth - Vertical Wallcut (m)

5.1

Length - Tail (mm)

2100

Height - Swing (m)

3.11 - 6.71

Radius - Bucket Struck (m)

1.25

Width - Bucket (mm)

1350

Height - Over Grab Rail (mm)

3000

Height - Over Cab (Vandal Guard - Optional) (mm)

3170

Height - Over Cab (FOPS Guard) (mm)

2970

Diameter - Bore & Rod (mm)

100 x 75 (Boom), 115 x 80 (Arm), 95 x 70 (Bucket)

Capacity - Hydraulic System (L)

126

Capacity - Fuel Tank (L)

260

Capacity - Hydraulic Tank (L)

133

No. of Cylinders

Displacement (L)

Gradeability (%)

Cooling System

Water Cooled

Speed - Travel (Range) (mph)

2.4 – 4.1

Pressure - Working (bar)

314

Power - Tractive (kN)

116

Service Brake Type

Hydraulic counter balance valve

Payload (t)

Aspiration

Turbocharged and intercooled

Capacity - Cooling Tank (L)

19.7

Pump Type

Grease Pump

Capacity - Engine Oil (L)

Air Filtration

Dry element with secondary safety element and in cab warning indicator

Capacity - Swing Reduction Gear (L)

2.2

Capacity - Track Reduction Gear (Each Side) (L)

3.5

Tearout - Bucket (max) (kN)

0.09

Tearout - Dipper (max) (kN)

0.06

Speed - Slew (rpm)

13.1

No. of Bottom Rollers

Pressure - Ground Bearing (kg/cm2)

0.5

Track Tensioning Type

Grease cylinder type

Angle - Dipper Rotation (°)

182

Angle - Bucket Rotation (°)

182

Capacity - Bucket (m3)

0.89

Weight - With Steel Tracks (kg)

14,388 – 14,819

No. of Upper Rollers (per side)

No. of Lower Rollers (per side)

No. of Track Guides (per side)

2 optional

No. of Track Shoes (per side)

Weight - Bucket (kg)

542

Pressure - Main Relief (bar)

314

No. of Hydraulic Cylinders

2 (Boom), 1 (Arm), 1 (Bucket)

Swing Motor Type

Axial piston

Swing Brake Type

Hydraulic braking plus automatic spring applied disc type parking brake

Torque - Swing (KNm)

Speed - Swing (rpm)

13.1

Swing Gear Type

Large diameter, internally toothed fully sealed grease bath lubricated

Dipstick Type

Remote

Track Drive Type

Fully hydrostatic, two speed with autoshift

Travel Motor Type

Variable swash axial piston type, fully guarded within undercarriage frame

Final Drive Type

Planetary reduction, bolt-on sprockets

Park Brake Type

Disc type, spring applied, automatic hydraulic release

Optional Blade

Height – Blade: 0.9m
Blade Lift – Above Ground: 0.45m
Blade Cut – Below Ground: 0.51m
Blade – Forward of Track: 0.41m
Width – Dozer (500mm Tracks): 2490mm
Weight – Additional Machine with 500mm Tracks: 806kg

Hydraulic Pump Type

2 variable displacement axial piston type

Flow - Hydraulic (lpm)

2 x 130

Hydraulic Servo Pump Type

Gear type

Flow - Servo Pump (lpm)

Relief - Valve (bar)

314

Pressure - With Power Boost (bar)

343

Pressure - Swing Circuit (bar)

279

Pressure - Travel Circuit (bar)

343

Pressure - Pilot Control (bar)

Filtration - In Tank (micron)

105 (Suction strainer)

Return - Main Line (micron)

10 (Glass fibre element)

Drain - Pilot Line (micron)

10 (Glass fibre element)

Pilot Line (micron)

10 (Glass fibre element)

Return - Hydraulic Hammer (micron)

10 (Reinforced microform element)
