13t Diesel Tracked Excavators

Name: 13t Diesel Excavators | Sunbelt Rentals
SKU: 10000710

Product Code: 10000710

Discover our 13t diesel tracked excavators, engineered for superior performance in various construction environments. These robust machines offer an impressive safe working load (SWL) of 13 tonnes, making them perfect for heavy-duty tasks. With an average consumption rate of 11.6 and emissions of only 36.8 per operating hour, they ensure efficiency without compromising on environmental standards. Designed for an average operational time of 4.3 hours a day, these excavators are your reliable partner for excavation and earthmoving projects.Product ID: 10000710

We'll pick the exact model you receive, as availability can change day-to-day.

They all perform to the same high standard, so whichever one you receive will do the job perfectly.

Choose a product

Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

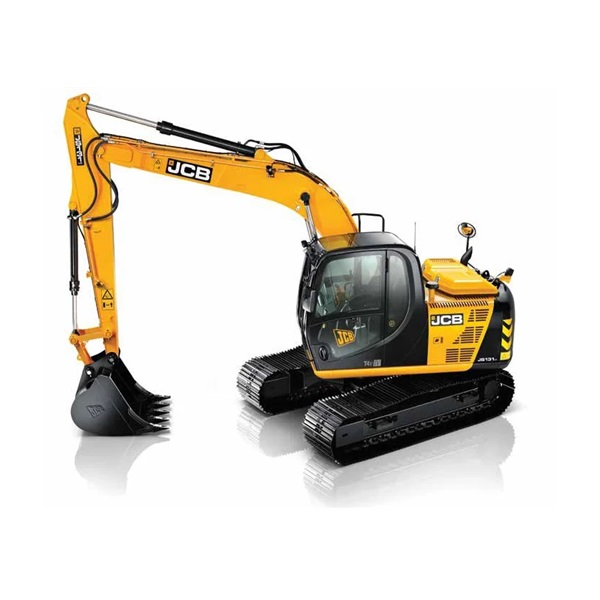

The JCB JS131 LC Tier 4 is a robust and efficient excavator, ideal for various construction tasks. Its compact design and powerful performance ensure optimal productivity on-site. Experience exceptional versatility and reliability with this top-of-the-range machine.

Item ID: 50002910

Reference: 021125

Length (mm)

7520

Height (mm)

2870

Width (mm)

2490

Weight (kg)

13991

Ground Clearance (mm)

430

Bore & Stroke (mm)

103 & 132

Length - Track (mm)

2860

Length - Undercarriage (mm)

3610

Height - Cab/Canopy (mm)

2850

Height - Dump (Range) (m)

6.12

Radius - Tailswing (m)

2.14

Width - Substructure (mm)

2410

Width - Over Tracks (mm)

2490

Width - Track (mm)

Gauge - Track (m)

1.99

Height - Dig (max) (m)

8.37

Reach - Digging (max) (m)

7.51

Reach - Digging on Ground (max) (m)

7.36

Depth - Dig Dozer Down (m)

4.01

Radius - Front Swing No Offset (m)

2.34

Counterweight Clearance (mm)

910

Depth - Vertical Wallcut (m)

3.22

Capacity - Hydraulic System (L)

126

Capacity - Fuel Tank (L)

220

Capacity - Hydraulic Tank (L)

Torque (Nm @ rpm)

36.2 @

No. of Cylinders

Displacement (L)

4.4

Gradeability (%)

Cooling System

Water Cooled

Speed - Travel (Range) (mph)

2.4 - 4.1

Power - Tractive (kN)

101.9

Payload (t)

Aspiration

Dry

Capacity - Cooling Tank (L)

19.7

Pump Type

2 variable displacement axial piston type. (Servo Pump Gear type.)

Capacity - Engine Oil (L)

Output - Nominal (lpm)

2 x 130

Tearout - Bucket (max) (kN)

91.9

Tearout - Dipper (max) (kN)

72.5

Speed - Slew (rpm)

13.3

No. of Bottom Rollers

Pressure - Ground Bearing (kg/cm2)

0.44 (Rubber Tracks 500mm), 0.27 (Rubber Tracks 850mm)

Angle - Bucket Rotation (°)

182

Capacity - Bucket (m3)

0.35 – 0.89
