1.6t Diesel Mini/Micro Tracked Excavators Stage V

Name: 1.6t Diesel Mini Excavators Stage V | Sunbelt Rentals
SKU: 10003013

Product Code: 10003013

Introducing our 1.6t diesel mini/micro tracked excavators stage V, designed for optimal performance in tight spaces. This compact excavator combines power and agility, making it ideal for construction projects requiring precision and efficiency. With advanced stage V emission standards, it ensures reduced environmental impact while delivering exceptional digging capabilities. Perfectly suited for both residential and commercial applications, this machine is a reliable choice for any contractor. Product ID: 10003013

We'll pick the exact model you receive, as availability can change day-to-day.

They all perform to the same high standard, so whichever one you receive will do the job perfectly.

Choose a product

Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

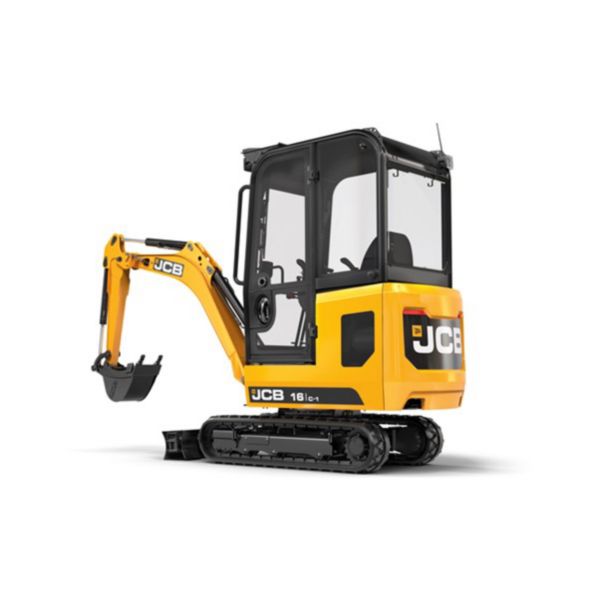

The JCB 16C-1 Stage V is a compact, powerful excavator designed for efficiency on construction sites. With its exceptional manoeuvrability and robust performance, it excels in tight spaces while delivering impressive digging capabilities. Ideal for a range of applications, this model combines reliability with advanced Stage V engine technology for reduced emissions.

Item ID: 50002869

Reference: 021113

Length (mm)

3200

Height (mm)

2320

Width (mm)

1450

Weight (kg)

1639 - 1749

Ground Clearance (mm)

160

Bore & Stroke (mm)

67 x 72

Length - Track (mm)

1220

Length - Undercarriage (mm)

1580

Kingpost Clearance (mm)

410

Length - Cab/Canopy (mm)

1202 (Cab) / 1427 (Canopy)

Width - Cab/Canopy (mm)

976 (Cab) / 978 (Canopy)

Height - Cab/Canopy (mm)

2320 (Cab) / 2420 (Canopy)

Height - Dump (Range) (m)

2.60 (950 mm Dipper) / 2.64 (1100mm Dipper)

Distance - Sprocket Idler Centres (mm)

1230

Radius - Tailswing (m)

1.1

Height - Dozer (mm)

230

Width - Dozer (mm)

980 - 1340

Width - Substructure (mm)

990

Width - Over Tracks (mm)

980 - 1330

Height - Track (mm)

380

Width - Track (mm)

230

Gauge - Track (m)

0.75 - 1.11 (retracted/extended)

Height - Dig (max) (m)

3.56 (950 mm Dipper) / 3.67 (1100mm Dipper)

Length - Boom (mm)

1.8

Reach - Digging (max) (m)

3.89 (950 mm Dipper) / 4.04 (1100mm Dipper)

Reach - Digging on Ground (max) (m)

3.83 (950 mm Dipper) / 3.98 (1100mm Dipper)

Depth - Dig Below Ground (m)

2.84

Height - Dozer Above Ground (max) (m)

0.24

Depth - Dig Dozer Up (m)

2.27 (950 mm Dipper) / 2.42 (1100mm Dipper)

Depth - Dig Dozer Down (m)

2.43 (950 mm Dipper) / 2.58 (1100mm Dipper)

Height - To Dipper Nose Pivot Pin (mm)

3120 (950 mm Dipper) / 3150 (1100mm Dipper)

Radius - Front Swing No Offset (m)

1.49 (950 mm Dipper) / 1.52 (1100mm Dipper)

Radius - Front Swing Fully Offset (m)

1.17 (950 mm Dipper) / 1.20 (1100mm Dipper)

Length - Dozer Centre of Boss (mm)

790

Counterweight Clearance (mm)

430

Length - Dipper (mm)

9500 - 1100

Depth - Vertical Wallcut (m)

1.93 (950 mm Dipper) / 2.14 (1100mm Dipper)

Capacity - Hydraulic System (L)

Capacity - Fuel Tank (L)

18.5

Capacity - Hydraulic Tank (L)

Torque (Nm @ rpm)

45.6 @ 2000

No. of Cylinders

Displacement (L)

0.762

Gradeability (%)

Cooling System

Water cooled

Speed - Travel (Range) (mph)

1.5 - 2.5

Pressure - Working (bar)

200

Power - Tractive (kN)

11.5

Payload (t)

1.6

Aspiration

Naturally Aspirated

Capacity - Cooling Tank (L)

4.7

Pump Type

Hydraulic 10 cc

Capacity - Engine Oil (L)

2.5

Output - Nominal (lpm)

Motor - Hydraulic

Gear

Tailswing Type

Conventional

Tearout - Bucket (max) (kN)

Tearout - Dipper (max) (kN)

9.1 - 10.1

Speed - Slew (rpm)

7.9

No. of Bottom Rollers

Pressure - Ground Bearing (kg/cm2)

Rubber Tracks - 0.35 (Canopy) / 0.36 (Cab), Steel Tracks - 0.36 (Canopy) / 0.38 (Cab)

Angle - Boom Swing Right (°)

Angle - Boom Swing Left (°)

Angle - Dipper Rotation (°)

126

Angle - Approach (°)

25.3

Angle - Bucket Rotation (°)

201

Angle - Service Door (°)

180

Capacity - Bucket (m3)

1.5

Weight - With Steel Tracks (kg)

Weight - With Long Dozer (kg)

Weight - With Mechanical Quickhitch (kg)

Weight - FOPS Guard (kg)

Pressure - Main Relief (bar)

205

Flow Rate - Hydraulic Aux (L)
