1.6t Diesel Mini/Micro Tracked Excavators

Name: 1.6t Diesel Mini Excavators | Sunbelt Rentals
SKU: 10000700

Product Code: 10000700

The 1.6t diesel mini/micro tracked excavator is an ideal solution for tight spaces, combining power and versatility. With a safe working load of 1.6 tonnes, this compact digger ensures efficient performance on any construction site. Perfect for precision digging and manoeuvring. Product ID: 10000700

We'll pick the exact model you receive, as availability can change day-to-day.

They all perform to the same high standard, so whichever one you receive will do the job perfectly.

Choose a product


Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

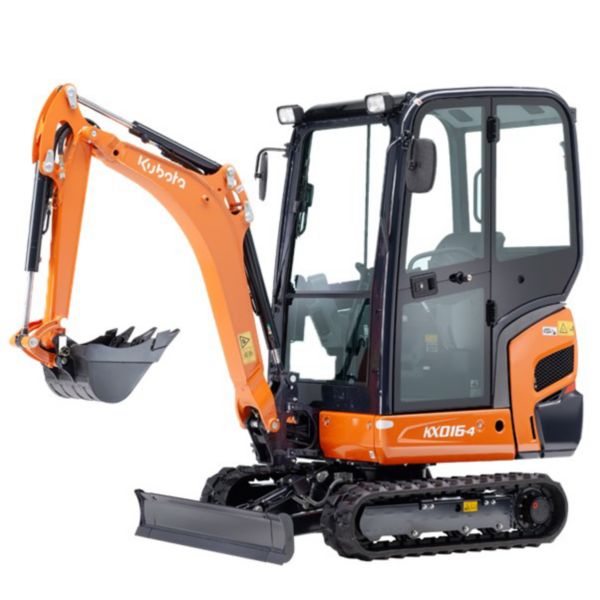

Discover the Kubota KX016-4, a compact and powerful mini excavator designed for efficiency in tight spaces. With its robust performance and advanced technology, this machine is perfect for construction projects requiring precision and agility. Its total dimensions ensure easy transport and access to challenging sites, making it an ideal choice for contractors.

Item ID: 50002870

Reference: 021011

Length (mm)

3710

Height (mm)

2330 - 2350

Width (mm)

1240

Weight (kg)

1565 - 1615

Ground Clearance (mm)

160

Bore & Stroke (mm)

67 x 73.6

Height - Dump (Range) (m)

2.29

Width - Dozer (mm)

990 - 1240

Height - Dozer Blade (mm)

230

Width - Dozer Blade (mm)

990 - 1240

Width - Over Tracks (mm)

990

Width - Track (mm)

230

Gauge - Track (m)

1.24

Length - Boom (mm)

0.95

Reach - Digging (max) (m)

3.73

Depth - Dig Below Ground (m)

2.25

Height - Dozer Above Ground (max) (m)

0.23

Depth - Dig Dozer Down (m)

2.25

Radius - Front Swing Fully Offset (m)

1.07

Depth - Vertical Wallcut (m)

1.81

Capacity - Hydraulic System (L)

15.5

Capacity - Fuel Tank (L)

Capacity - Hydraulic Tank (L)

No. of Cylinders

Displacement (L)

0.778

Gradeability (%)

Cooling System

Water Cooled

Speed - Travel (Range) (mph)

1.30 - 2.36

Pressure - Working (bar)

20.6

Payload (t)

1.6

Pump Type

Variable Displacement

Output - Nominal (lpm)

16.6

Tearout - Bucket (max) (kN)

12.7

Tearout - Dipper (max) (kN)

7.3

Speed - Slew (rpm)

9.1

Pressure - Ground Bearing (kg/cm2)

0.26 / 0.27

Angle - Boom Swing Right (°)

Angle - Boom Swing Left (°)

Flow Rate - Hydraulic Aux (L)
