17m Diesel Telescopic Handlers Stage V

Name: 17m Diesel Telescopic Handlers Stage V | Sunbelt Rentals
SKU: 10002993

Product Code: 10002993

The 17m diesel telescopic handler stage V is a powerful and versatile machine designed for heavy-duty lifting and material handling on construction sites. With an impressive reach of 17 metres, it offers exceptional performance and stability, making it ideal for various tasks. Complies with stage V emissions standards, ensuring a reduced environmental impact while delivering reliable power. Its robust design and advanced features make it perfect for both construction and industrial applications. Product ID: 10002993

We'll pick the exact model you receive, as availability can change day-to-day.

They all perform to the same high standard, so whichever one you receive will do the job perfectly.


Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

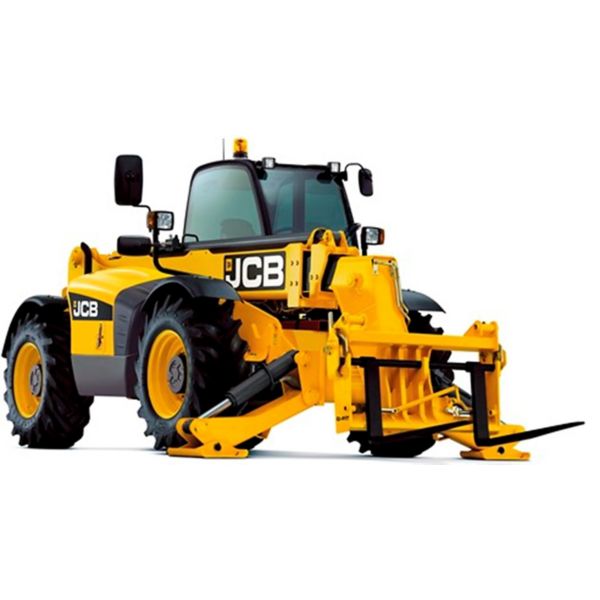

The JCB 540-170 Stage V is a robust telehandler designed for superior lifting performance on construction sites. With impressive reach and stability, it effortlessly handles heavy loads, making it an essential tool for any project. Its compact design ensures versatility in tight spaces.

Item ID: 50002727

Reference: 026082

Length (mm)

6360

Height (mm)

2690

Width (mm)

2440

Weight (kg)

12060

Power Source / Fuel Type

Diesel

Battery (V/Ah)

12V

Voltage - System (V)

Engine Make

JCB

Engine Model

430DieselMAX

Engine Serial Number

FN320/41537U0638321 (2021) / FN320/41537U2996922 (2022) / FN320/41537u2576723 (2023)

Engine Variant Options

JCB 430 DieselMAX Stage V, 3 litre, 4 cylinder, turbo charged - Engine 55kW (74hp) @ 2200rpm, 440Nm torque at 1300rpm JCB 448 DieselMAX Stage V, 4.8 litre, 4 cylinder, turbo charged - Engine 81kW (109hp) @ 2200rpm, 516Nm torque at 1300rpm - Option

Engine Stage/Tier

StageV

Power - Engine (max) (kW)

Power - I.C. Engine Rating (hp)

Time - Boom Raise (Sec)

22.7

Time - Boom Lower (Sec)

23.4

Time - Boom Extend (Sec)

18.3

Time - Retract (Sec)

16.7

Time - Bucket Dump (Sec)

4.2

Time - Bucket Crowd (Sec)

4.6

Angle - Carriage Roll Back (°)

Angle - Carriage Dump (°)

8.8

Capacity - Lifting (kg)

4000

Capacity - At Full Forward Reach (kg)

800

Capacity - At Full Lift Height (kg)

2500

Speed - Travel (mph)

Steering & Traction Drive

2/4WD

Flow Rate - System Pressure (l/min @ bar)

170@260

Loads - Axle (kg)

5325-6045 (11370)

Loads - Axle (Laden) (kg)

1480-2667 (17147)

Capacity - Fuel Tank (L)

146

Capacity - Hydraulic Tank (L)

180

Speed - Rated (rpm)

2200

Torque (Nm @ rpm)

440@1300

No. of Cylinders

Cylinder Arrangement

In Line

Combustion System

4- Stroke Direct Injection

Displacement (L)

2.98

No. of Valves - Per Cylinder

Pressure - Lubricating Oil (bar)

4.5

Fuel Injection Pump

High pressure pump, with a common rail and electronic

controlled injectors with combined fuel metering
