20' Electric Scissor Lift

Name: 20' Electric Scissor Lifts | Sunbelt Rentals
SKU: 10000002

Product Code: 10000002

The 20' electric scissor lift is designed for safe and efficient elevation in indoor and outdoor environments. With a compact footprint and quiet operation, this lift is ideal for construction, maintenance, and installation tasks. It features a robust platform that can accommodate multiple workers and tools, ensuring productivity while adhering to safety standards. Easy to manoeuvre, it provides excellent stability and reach for various applications. Product ID: 10000002

We'll pick the exact model you receive, as availability can change day-to-day.

They all perform to the same high standard, so whichever one you receive will do the job perfectly.

Choose a product

Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

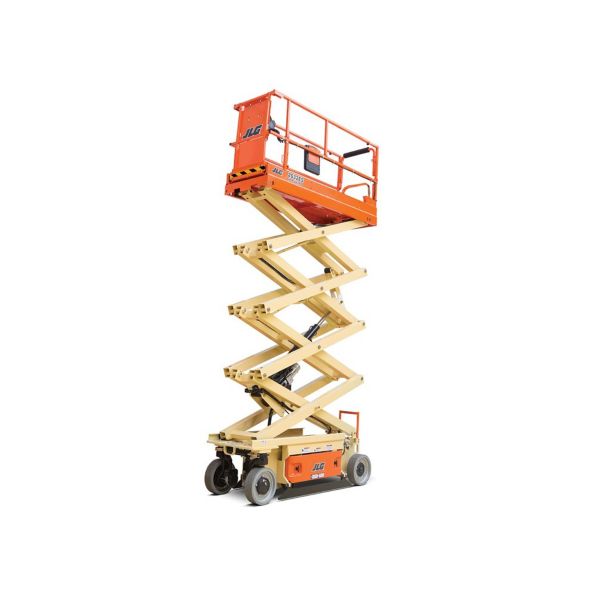

Introducing the JLG 2032ES 20' Electric Scissor Lift, a dependable solution for indoor construction projects. With its compact design, this lift offers outstanding reach and stability, ensuring safety and productivity on site. Its electric drive provides a quieter and cleaner operation, while the narrow width allows easy access through standard doorways. Item ID: 50000013 Reference: 075230

Length (m)

2.30

Width (m)

0.81

Height (m)

2.2

Weight (kg)

1638

All Motion Alarm

Yes

Non Marking Tyres

Yes

Power To Cage

Yes

Proportional Controls

Yes

All-Wheel Steering

Extended Platform

Yes

Fold Down Hinged Railing System

Yes

Self Locking Gate

Yes

Outriggers

Dual Flow Hydraulics

Hourmeter

Yes

Lifting Check Valves

Yes

Manual Descent

Yes

Oscillating Axle Chassis

Proportional Direct DC Electric Drive

Yes

Proportional Lift Up

Yes

Quad Holding Brakes

Single Pump Hydraulics

Yes

Slide-Out Engine Tray

Tilt Sensor

Yes

Area - Platform (m²)

1.84

Ground Clearance (m)

0.09

Ground Clearance - Stowed (mm)

0.09

Height - Closed (m)

1.82

Height - Drive (m)

6.1

Height - Guardrail (m)

1.1

Height - Stowed (m)

2.2

Height - Working (m)

7.92

Length - Platform (m)

2.3

Size - Tyre

15 x 5

Turning Radius - Inside (m)

Turning Radius - Outside (m)

2.06

Wheelbase (m)

1.88

Width - Platform (m)

0.8

Height - Hand Rails Down (m)

1.82

Height - Platform (m)

6.1

Height - Working (max) (m)

7.92

Deck Extension (m)

0.9

Capacity - Hydraulic Tank (L)

4.73

Capacity - Platform Unrestricted (kg)

362.87

Gradeability (%)

Load - Safe Working (kg)

363

No. of Lifting Eyes

No. of Persons (Max)

Pressure - Per Tyre Contact (psi/kPa)

81 / 559

Slope (Max) (%)

Speed - Drive (Elevated) (mph)

0.5

Speed - Drive (Lowered) (mph)

2.8

Speed - Drive (Raised) (mph)

0.5

Speed - Drive (Stowed) (mph)

2.8

Speed - Falling (Loaded) (s)

Speed - Rising (Loaded) (s)

Speed - Wind (max) (mph)

Tyre Type

Non-Marking Solid

Charger Type

20 Amp automatic battery charger (120/240 V, 50/60 Hz)

Drive Type

Electric drive – dual motor, front‑wheel drive & steer

Output - Power

6 kW

Hydraulic System

Electro‑hydraulic system

Capacity - Distributed (Extension Deck) (kg)

120

Capacity - Distributed (Main Platform) (kg)

362.87

Capacity - Total (kg)

360

Weight - Total Aerial Platform (max) (kg)

1970

Building Information Modelling (BIM)

Digital Download

View Model
