2.5t Diesel Mini/Micro Tracked Excavators

Name: 2.5t Diesel Mini Excavators | Sunbelt Rentals
SKU: 10000701

Product Code: 10000701

Discover our 2.5t diesel mini/micro tracked excavators, engineered for versatility and power on any construction site. These compact machines boast an impressive safe working load (SWL) of 2.5 tonnes, making them perfect for a wide range of excavation tasks. With an average fuel consumption of just 3.1 per operating hour and low emissions of 8.9, they are both environmentally friendly and cost-effective. Designed for ease of use, these excavators can navigate tight spaces with ease, ensuring you get the job done efficiently. Product ID: 10000701

We'll pick the exact model you receive, as availability can change day-to-day.

They all perform to the same high standard, so whichever one you receive will do the job perfectly.

Choose a product

Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

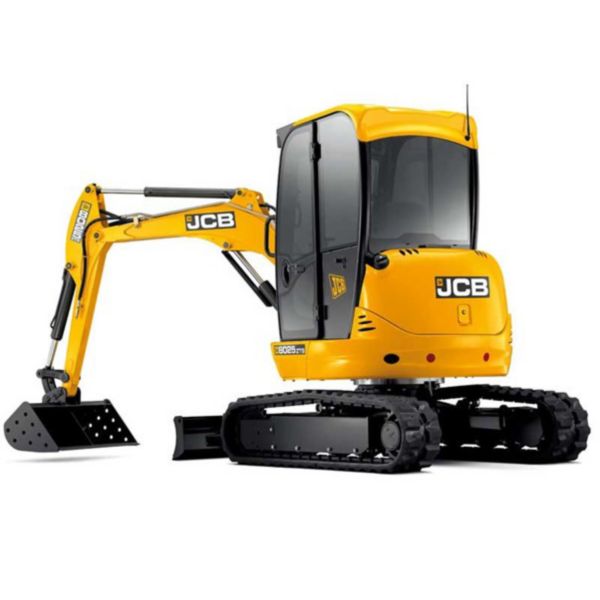

The JCB 8025 ZTS Tier 3 is a compact and versatile mini excavator designed for efficient operation in tight spaces. With robust performance and excellent manoeuvrability, it is ideal for various construction tasks. Its reliable engine and advanced hydraulic system ensure productivity while maintaining fuel efficiency, making it the perfect choice for small to medium-sized projects.

Item ID: 50002877

Reference: 021015

Length (mm)

4280

Height (mm)

2430

Width (mm)

1550

Weight (kg)

2685

Ground Clearance (mm)

300

Length - Undercarriage (mm)

1890

Kingpost Clearance (mm)

620

Length - Cab/Canopy (mm)

1210

Width - Cab/Canopy (mm)

980

Height - Cab/Canopy (mm)

1520

Height - Dump (Range) (m)

3.15

Distance - Sprocket Idler Centres (mm)

1440

Radius - Tailswing (m)

0.75

Height - Dozer (mm)

340

Width - Dozer (mm)

1550

Reach - Infront of Tracks (m)

0.32

Width - Over Tracks (mm)

4280

Height - Track (mm)

450

Width - Track (mm)

268 (Rubber), 265 (Steel)

Gauge - Track (m)

1.25

Height - Dig (max) (m)

4.33

Length - Boom (mm)

2.13

Reach - Digging (max) (m)

4.83

Reach - Digging on Ground (max) (m)

4.69

Depth - Dig Below Ground (m)

0.39

Height - Dozer Above Ground (max) (m)

0.34

Depth - Dig Dozer Up (m)

2.58

Depth - Dig Dozer Down (m)

2.83

Height - To Dipper Nose Pivot Pin (mm)

3700

Radius - Front Swing No Offset (m)

2.13

Radius - Front Swing Fully Offset (m)

1.91

Length - Dipper (mm)

1100

Depth - Vertical Wallcut (m)

1.54

Capacity - Hydraulic System (L)

Capacity - Fuel Tank (L)

Capacity - Hydraulic Tank (L)

Torque (Nm @ rpm)

96 (70.8) @ 1600 (Net 92 (67.9) @1600)

Displacement (L)

1.496

Gradeability (%)

Cooling System

Water Cooled

Speed - Travel (Range) (mph)

1.5 - 2.7

Pressure - Working (bar)

Power - Tractive (kN)

24.6

Payload (t)

2.5

Capacity - Cooling Tank (L)

8.5

Pump Type

2 Variable and 1 Gear

Capacity - Engine Oil (L)

4.5

Output - Nominal (lpm)

102

Motor - Hydraulic

Piston

Tearout - Bucket (max) (kN)

Tearout - Dipper (max) (kN)

Speed - Slew (rpm)

9.6

No. of Bottom Rollers

Pressure - Ground Bearing (kg/cm2)

0.31

Track Tensioning Type

Grease

Angle - Boom Swing Right (°)

Angle - Boom Swing Left (°)

Angle - Dipper Rotation (°)

118.5

Angle - Approach (°)

Angle - Bucket Rotation (°)

189

Capacity - Bucket (m3)

0.15 – 1.3

Weight - With Steel Tracks (kg)

+60

Weight - With Long Dozer (kg)

+24

Weight - FOPS Guard (kg)

+36

Pressure - Main Relief (bar)

190 - 220
