355mm Hydraulic Pipe Handlers

Name: 355mm Hydraulic Pipe Handlers | Sunbelt Rentals
SKU: 10003371

Product Code: 10003371

The 355mm hydraulic pipe handlers are essential tools for safely and efficiently managing pipes on construction sites. Designed for heavy-duty applications, these handlers provide superior control and stability when lifting and moving pipes. Their robust hydraulic system ensures smooth operation, making them ideal for both professional contractors and diy enthusiasts. With a focus on safety and ease of use, these pipe handlers enhance productivity while minimising the risk of injury. Product ID: 10003371

We'll pick the exact model you receive, as availability can change day-to-day.

They all perform to the same high standard, so whichever one you receive will do the job perfectly.

Choose a product


Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

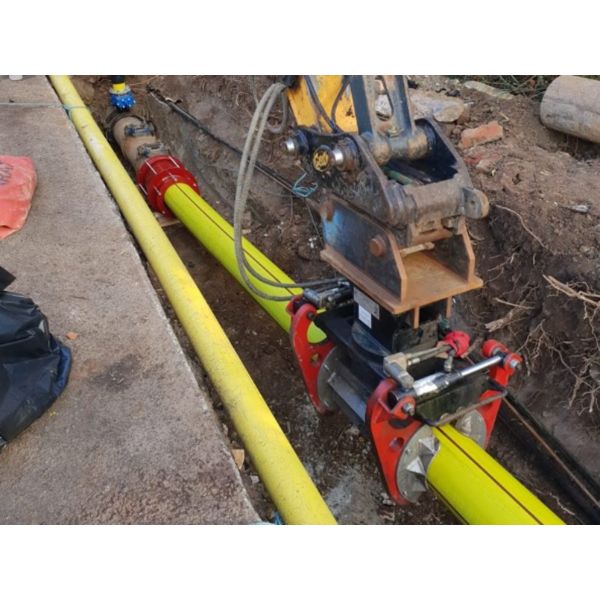

The Steve Vick 355 Hydraulic Pipe Handler is designed for excavator mounting, accommodating pipes from 180 to 355mm. Compact in transport with dimensions of 560mm height and 350mm length, it ensures compliance with key safety regulations for reliable performance on site.

Item ID: 50000879

Reference: 072392

Length (mm)

720

Width (mm)

1360

Height (mm)

2120

Weight (kg)

340 - 490 (depending on size of PH)

Features

Safety - safer alternative to using an excavator bucket and sling to insert PE pipe and avoids the need for operators to work in the trench
Simple – one stage set up for entire insertion operation and no need for anchoring pins
Fast – typical insertion speeds of 10 metres per minute and capable of inserting long lengths of pipe up to 500m
Accuracy - swivel head allows pipe to be positioned ready for insertion

Compliance

2006/42/EC // SI 2011-2157 // SI 2008-1597

Contents - Kit

Mini Pipe Handler // Extension Hose // 3/8" to 3/4" Adaptor Connector // 25mm, 30mm and 34mm Pins for different size excavators and R-Pins // Range of sizing down shells // Allen Key // Shell bolts (if requested) // Instruction Manual

Finish

Painted

Purpose/Made for

Gas // Water

Material - Pipe

Size - Excavator (Typical) (t)

5 - 8

Fittings

Typically, 3/8” and 3/4” flat face quick fit couplers

Functions

Grip/release – PE pipe is inserted or retracted using excavator arm

Speed - Achievable Insertion (m/min)

5 - 10
