39' Electric Compact Mast Boom Lift

Name: 39' Electric Compact Mast Boom Lift Hire | Sunbelt Rentals
SKU: 10000077

Product Code: 10000077

The 39' electric compact mast boom lift is designed for efficient, flexible access in tight spaces. Ideal for indoor and outdoor applications, this lift offers a compact design without compromising on height, enabling operators to reach elevated work areas with ease. Its electric operation ensures a quiet and environmentally friendly performance, making it suitable for sensitive environments. With user-friendly controls and exceptional stability, this boom lift is perfect for construction, maintenance, and installation tasks. Product ID: 10000077

We'll pick the exact model you receive, as availability can change day-to-day.

They all perform to the same high standard, so whichever one you receive will do the job perfectly.

Choose a product

Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

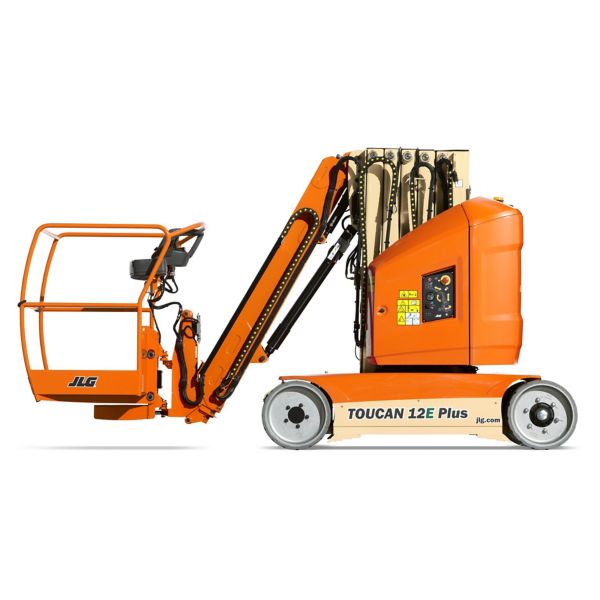

The JLG T12E Plus is a robust and reliable lift designed for efficient vertical access in various construction environments. Its compact design allows for easy manoeuvrability, ensuring optimal performance where space is limited. Ideal for both indoor and outdoor tasks, this lift enhances productivity on site.

Item ID: 50000185

Reference: 080106

Length (m)

3.65

Width (m)

1.2

Weight (kg)

4900

All Motion Alarm

Yes

Articulating Jib

Yes

Descent & Travel Alarm

Yes

Non Marking Tyres

Yes

Platform Load Sense System

Yes

Proportional Controls

Yes

Dual Wheel Brakes

Yes

Fork Pockets

On Board Diagnostic System

Yes

Work Station Tray

Yes

2WD Electric Drive

Yes

Auto Power Save When Idle

Yes

Chain Slack Detection System

Yes

Extended Reach And Up-&-Over Height

Yes

Heavy Duty Forklift Style Mast

Yes

Low Charge Function Cut-Out

Yes

Manual Descent System

Yes

Powered Battery Fill

Yes

Powered Platform/Basket Rotation

Yes

Strobe Light

Yes

Versatile Articulating Jib

Yes

Ground Clearance (m)

0.1

Height - Closed (m)

1.99

Height - Drive (m)

10.65

Height - Guardrail (m)

1.1

Height - Stowed (m)

1.99

Height - Up & Over (m)

7.12

Length - Jib (Overall) (m)

4.14

Length - Platform (m)

0.7

Length - Stowed (m)

3.65

Outreach - Horizontal (m)

6.05

Outreach - Working (m)

6.05

Size - Tyre

45.7x17.8

Tail Swing (m)

0.13

Turning Radius - Inside (m)

0.75

Turning Radius - Outside (m)

2.6

Wheelbase (m)

1.6

Width - Platform (m)

1.05

Height - Platform (max) (m)

6.15

Length - Articulated Jib (m)

4.14

Height - Working (max) (m)

12.65

Length - Platform (max) (m)

1.05

Tailswing (m)

0.13

Width - Frame (m)

1.20

Capacity - Hydraulic Tank (L)

Capacity - Lift (kg)

200

Controls

Gradeability (%)

Load - Safe Working (kg)

200

Load - Tyre (max) (kg)

2280

No. of Lifting Eyes

No. of Persons (Max)

Pressure - Ground Bearing (max) (kg/cm2)

Range - Articulated Jib (°)

120

Rotation - Horizontal Jib (°)

120

Speed - Drive (Elevated) (mph)

0.47

Speed - Drive (Lowered) (mph)

3.73

Speed - Wind (max) (mph)

Swing Non Continuous (°)

345

Tyre Type

Solid Non Marking

Capacity (max) (kg)

200

Motor Type

Drive Motor: Dual AC / Pump Motor: 3.5 / 48

Speed - Lower/Raise Function (s)

23-27/24-28

Rotation - Mast (°)

345

Building Information Modelling (BIM)

Digital Download

View Model
