400-449mm Petrol Reversible Compaction Plates

Name: 400-449mm Petrol Reversible Compaction Plates Hire | Sunbelt
SKU: 10000925

Product Code: 10000925

Our petrol compaction plate is an essential piece of equipment for any construction project. Engineered for optimal performance, this powerful compactor effectively consolidates soil and gravel, ensuring a solid foundation for your work. The petrol engine provides impressive force, making it suitable for a variety of applications, from roadworks to landscaping. Its compact design allows for easy manoeuvrability in tight spaces, while the robust construction ensures longevity and reliability on site. Product ID: 10000925

We'll pick the exact model you receive, as availability can change day-to-day.

They all perform to the same high standard, so whichever one you receive will do the job perfectly.

Choose a product

Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

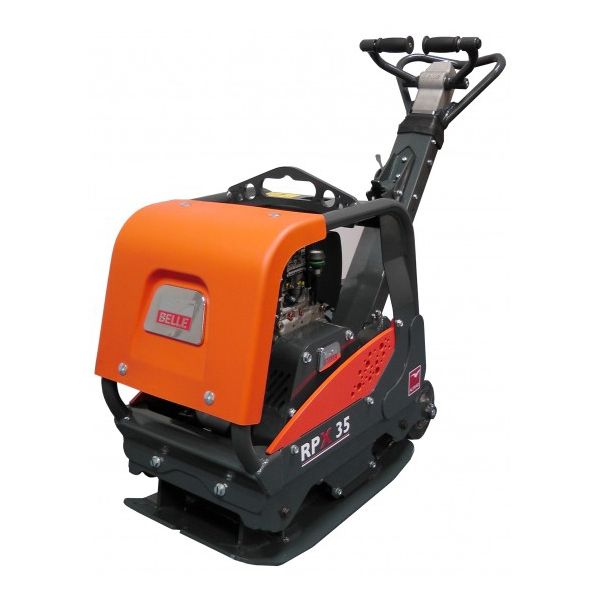

The Altrad Belle RPX 35/40 Petrol Reversible Compaction Plate offers exceptional performance for compacting various surfaces. With its powerful petrol engine and reversible functionality, this machine ensures effective soil and asphalt compaction, enhancing productivity on construction sites.

Item ID: 50003936

Reference: 065200

Length (mm)

1205

Height (mm)

1067

Width (mm)

400

Weight (kg)

176

Consumption - Fuel (L/hr)

1.7

CO2 per Litre of Fuel Consumed

757

Emission Level

EU Stage V, US Phase 2

Average Usage Emissions Per Operating Hour (ERA)

2.2

Average Consumption Per Operating Hour (ERA)

0.8

Average Engine Operating Hours Over A Rental Day (ERA)

2.5

Average Usage Emissions Per Operating Hour (ERA)

2.2

Average Consumption Per Operating Hour (ERA)

0.8

Average Engine Operating Hours Over A Rental Day (ERA)

2.5

Features

Robust design for long-life and use in the harshest site conditions.

Petrol & Diesel models to suit all kind of applications combining low weight with high compaction force.

Electric start with key ignition & LED warning lamps, eliminates need for operator training with manual starting (Hatz models only)

Integrated Wheel Kit, ready for safe and easy transporation.

Control Handle & Additional Fixed Handle with strong locking:-

More positive handling & control.

Reduces shock loading on control handles.

Better fulcrum for pulling machine onto its wheels.

Safe for operator moving without relying on moving

control handles.

No damage to the forward/reverse mechanism.

Angled baseplate for excellent gradability and travel speeds.

Low HAV handle, safe for operators to use for long periods.

High Compaction force for fast work and deep compaction.

Handle mounted throttle, perfect for the operator

Water Tank Included

Material

Handle: Steel

Front Cover: HDPE

Main Frame: Steel

Baseplate: Steel

Hand Grips: Polyurethane Foam

Flexible Mounts: Steel & Rubber

Various Parts: Steel & Aluminium

Engine: Aluminium

Cylinder Sleeve Type

Cast iron sleeve

Displacement

196 cc

Compression

8.5 : 1

Power - Net

4.3 kW (5.8 HP)

Power - Continuous Rated

3.3-3.7 kW (4.4-5.0 HP)

Torque - Net (Nm)

12.4

Ignition Type

Transistorised

Starter Type

Recoil (Electric start optional)

Capacity - Fuel Tank (L)

3.1

Capacity - Engine Oil (L)

0.6

Weight - Engine Dry (kg)

16.1

Speed - Engine (rpm)

3000

Cooling Type

Air

Drive Type

Belt Driven

Force - Centrifugal (kN)

Speed - Travel (m/min)

Area - Working Surface (m2/hr)

1351

Gradient (°/%)

20 degrees
