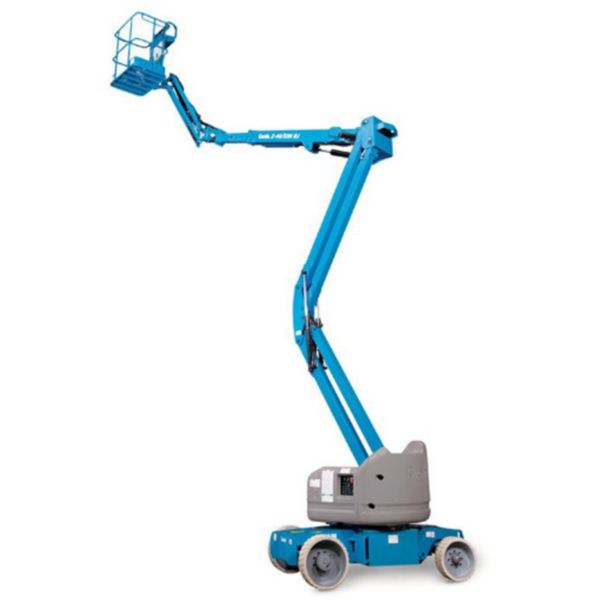

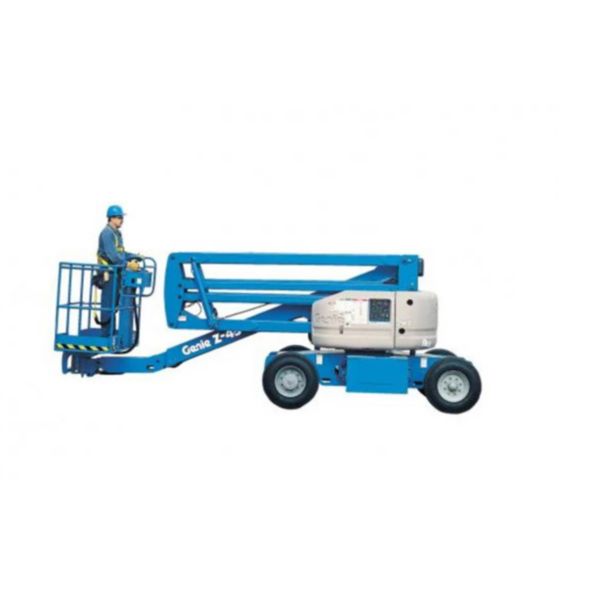

Genie Z-45/25DC 45' Electric Articulated Boom Lift
The Genie Z-45/25DC is a versatile and efficient boom lift, ideal for reaching heights up to 15.9 metres. Its compact design ensures easy navigation on tight job sites, making it perfect for construction and maintenance tasks. Experience reliability and performance with this exceptional piece of equipment.
Item ID: 50000113
Reference: 076360
Basic Dimensions
Length (m)5.56-6.83
Width (m)1.79
Height (m)2
Weight (kg)7400
Environmental & Sustainability
Sound Power (dB)70-78
Sound Pressure (dB)70
Convenience Features
All Motion AlarmYes
Articulating JibYes
GeneratorYes
Non Marking TyresYes
Platform Load Sense SystemYes
Power To CageYes
Proportional ControlsYes
Power Source
Power Source / Fuel TypeElectric
Battery (V/Ah)8 x 6 V batteries, 350 Ah capacity)
Voltage (V)48
Safety Information
Flashing BeaconYes
Harness RingsYes
HornYes
Tilt AlarmYes
Vibration Level (m/s2)2.5
Technical Dimensions
Area - Platform (m²)1.39
Ground Clearance (m)0.24
Height - Elevated Platform (m)13.94
Height - Stowed (m)2.00
Height - Up & Over (m)7.24
Height - Working (m)15.94
Length - Platform (m)1.83
Length - Stowed (m)6.83
Outreach - Horizontal (m)7.65
Size - Tyre23 x 37
Tail Swing (m)0
Turning Radius - Inside (m)1.83
Turning Radius - Outside (m)4.27
Wheelbase (m)2.03
Width - Platform (m)0.76
Technical Specifications
Capacity - Fuel Tank (L)34.1
Capacity - Hydraulic Tank (L)30.3
Capacity - Lift (kg)227
Capacity - Platform (kg)227
Controls24V DC proportional
Gradeability (%)30
Hydraulic PlatformYes
Load - Wheel (max) (kg)3355
No. of Persons (Max)2
Pressure - Floor (Occupied) (psf/kPa)307-311/13.45-15.16
Pressure - Per Tyre Contact (psi/kPa)100/690
Rotation - Cage (°)160
Rotation - Hydraulic Platform (°)160
Rotation - Turntable (°)355
Rotation - Jib (°)135
Speed - Drive (Elevated) (mph)0.48
Speed - Drive (Lowered) (mph)3
Speed - Drive (Raised) (mph)0.61
Speed - Drive (Stowed) (mph)3
Speed - Wind (max) (mph)28
Tyre TypeIndustrial Foam Filled (standard)
