450-499mm Petrol Compaction Plates

Name: 450-499mm Petrol Compaction Plates Hire | Sunbelt Rentals
SKU: 10000927

Product Code: 10000927

Our petrol compaction plate is an essential piece of equipment for any construction project. Engineered for optimal performance, this powerful compactor effectively consolidates soil and gravel, ensuring a solid foundation for your work. The petrol engine provides impressive force, making it suitable for a variety of applications, from roadworks to landscaping. Its compact design allows for easy manoeuvrability in tight spaces, while the robust construction ensures longevity and reliability on site. Product ID: 10000927

We'll pick the exact model you receive, as availability can change day-to-day.

They all perform to the same high standard, so whichever one you receive will do the job perfectly.

Choose a product


Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

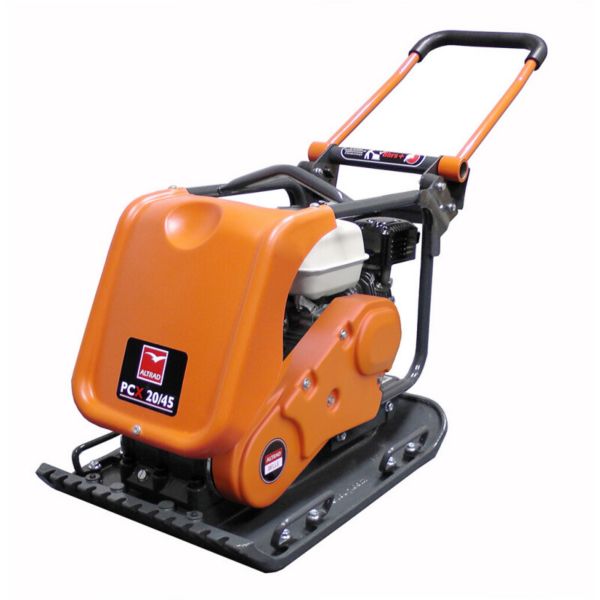

The Altrad Belle PCX 20/45 Petrol Compaction Plate is engineered for optimal soil compaction on construction sites. Its powerful petrol engine ensures efficient operation, while its compact design allows for easy transport and manoeuvrability. Ideal for achieving stable and firm ground levels.

Item ID: 50003951

Reference: 065017

Length (mm)

1167

Height (mm)

987

Width (mm)

450

Weight (kg)

Consumption - Fuel (L/hr)

1.4

CO2 per Litre of Fuel Consumed

757

Emission Level

EU Stage V, US Phase 2

Average Usage Emissions Per Operating Hour (ERA)

2.2

Average Consumption Per Operating Hour (ERA)

0.8

Average Engine Operating Hours Over A Rental Day (ERA)

2.5

Average Usage Emissions Per Operating Hour (ERA)

2.2

Average Consumption Per Operating Hour (ERA)

0.8

Average Engine Operating Hours Over A Rental Day (ERA)

2.5

Features

Compaction all-rounder for soils, asphalt and pavements, a plate with unlimited possibilities.

The optimum vibratory plate for finishing or patching a surface.

Highest degree of operator comfort: patented vibration neutralisation of the operating handle.

Wear and fracture resistant cast base continuous load applications, manufactured out of extremely resistant cast iron (GJS-700)

The sturdy protective frame with integrated Lifting Point makes this plate resistant to rough treatment or mechanical shocks.

Fold-Flat handle for easy storage & transportation.

High power 20kN Vibration Force.

Improved productivity with fast travel speeds.

Water Tank Included

Material

Handle: Steel

Front Cover: HDPE

Main Frame: Steel

Baseplate: Steel

Hand Grips: Rubber

Flexible Mounts: Steel & Rubber

Various Parts: Steel & Aluminium

Engine: Aluminium

Cylinder Sleeve Type

25° inclined cylinder

Displacement

163 cc

Compression

9.0 : 1

Power - Net

3.6 kW (4.8 HP)

Power - Continuous Rated

2.5-2.9 kW (3.4-3.9 HP)

Torque - Net (Nm)

10.3

Ignition Type

Transistorised

Starter Type

Recoil (Electric start optional)

Capacity - Fuel Tank (L)

3.1 - 3.6

Capacity - Engine Oil (L)

0.6

Weight - Engine Dry (kg)

15.1

Speed - Engine (rpm)

3600

Cooling Type

Air

Drive Type

Belt Driven

Force - Centrifugal (kN)

Speed - Travel (m/min)

Area - Working Surface (m2/hr)

463

Gradient (°/%)

20 degrees
