500mm Hydraulic Pipe Handlers

Name: 500mm Hydraulic Pipe Handlers | Sunbelt Rentals
SKU: 10003372

Product Code: 10003372

Introducing the 500mm hydraulic pipe handlers, expertly designed for heavy-duty applications in the construction industry. These portable and adjustable handlers ensure efficient manoeuvrability and secure handling of pipes, making them an essential tool for any site. Crafted from durable steel, they offer high capacity and stability, ensuring safe operation even under demanding conditions. Ideal for both industrial and construction projects, these compact hydraulic pipe handlers will enhance your productivity with ease. Product ID: 10003372

We'll pick the exact model you receive, as availability can change day-to-day.

They all perform to the same high standard, so whichever one you receive will do the job perfectly.

Choose a product


Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

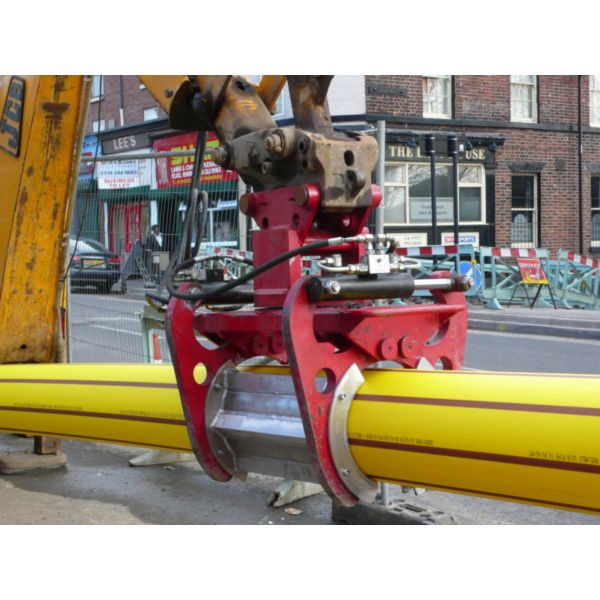

The Steve Vick 500 Hydraulic Pipe Handler is excavator mounted, designed for pipes measuring 400-500mm. With compact transport dimensions of 560mm in height and 350mm in length, it ensures efficient handling on site. Compliant with safety regulations, it's ideal for construction projects.

Item ID: 50000880

Reference: 072393

Length (mm)

720

Width (mm)

1360

Height (mm)

2120

Weight (kg)

380 - 490 (depending on size of PH)

Features

Safety - safer alternative to using an excavator bucket and sling to insert PE pipe and avoids the need for operators to work in the trench
Simple – one stage set up for entire insertion operation and no need for anchoring pins
Fast – typical insertion speeds of 10 metres per minute and capable of inserting long lengths of pipe up to 500m
Accuracy - swivel head allows pipe to be positioned ready for insertion

Compliance

2006/42/EC // SI 2011-2157 // SI 2008-1597

Contents - Kit

Mini Pipe Handler // Extension Hose // 3/8" to 3/4" Adaptor Connector // 25mm, 30mm and 34mm Pins for different size excavators and R-Pins // Range of sizing down shells // Allen Key // Shell bolts (if requested) // Instruction Manual

Finish

Painted

Purpose/Made for

Gas // Water

Material - Pipe

Size - Excavator (Typical) (t)

Fittings

Typically, 3/8” and 3/4” flat face quick fit couplers

Functions

Grip/release – PE pipe is inserted or retracted using excavator arm

Speed - Achievable Insertion (m/min)
