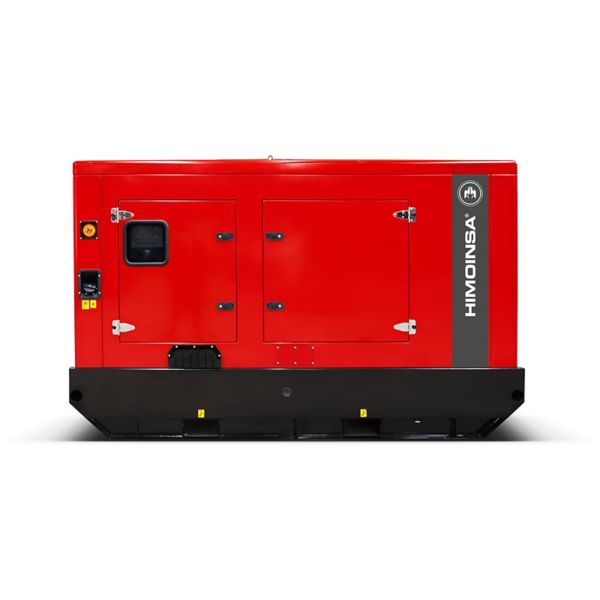

Himoinsa HRFW-60-T5 60kVA Diesel Generator Stage V Sync
The Himoinsa HRFW-60-T5 is a robust and reliable generator, designed to meet the demanding needs of construction sites. This model delivers a powerful output, ensuring your operations run smoothly without interruption. Its compact design allows for easy transportation and placement on-site, making it an ideal choice for various applications. With user-friendly controls and durable construction, the HRFW-60-T5 is built to withstand tough environments while providing consistent performance.
Item ID: 50001310
Reference: 029006
Basic Dimensions
Length (cm)266
Width (cm)111
Height (cm)160
Weight (kg)1690
Environmental & Sustainability
Consumption - Fuel (l/hr)13.9 (100%) / 9.8 (70%) / 7.2 (50%)
Sound Pressure (dB)62-64.4
Average Usage Emissions Per Operating Hour (ERA)42.4
Average Consumption Per Operating Hour (ERA)13.4
Average Engine Operating Hours Over A Rental Day (ERA)5.3
Engine Stage/TierStageV
Power Source
Power Source / Fuel TypeDiesel
Voltage - Options (V)230 / 400
Phase3
Power - Prime (kVA/kW)60kVA / 48kW
Power - Standby (kVA/kW)66kVA / 52.8kW
Power - Factor (cos)0.8
Capacity - Fuel Tank (L)240
EngineFPT_IVECO F34.TEVP01
Battery (V/Ah)12V
Voltage (V)12
Engine MakeIvecoFPT
Engine ModelF34TEVP01
Safety Information
Insulation ClassH
Temperature - Standby (max) (°C)60
Technical Dimensions
Bore & Stroke (mm)99 x 110
Technical Specifications
Controller OptionsDSE 8610 MKII
Frequency50 / 60Hz
Alternator TypeSynchronous alternator, 3‑phase + Neutral (3PH+N)
Autonomy
22.5hrs @ 50% load
14hrs @ 75% load
11.1hrs @ 100% load
Starting SystemElectric (battery powered)
No. of Cylinders4
Speed - Engine (rpm)1500-1800
AspirationTurbocharged and after-cooled
Displacement (L)3.4
Displacement (cm³)3400
Capacity - Engine Oil (L)9.5
Ratio - Compression0.709027777777778
Injection TypeDirect, common rail
No. of Poles2
Exciter SystemBrushless via AVR
Coupling TypeFlexible disc
No. of Wires4
Coolant TypeLiquid (Water + 50% glycol)
Capacity - Coolant (L)14.6
Current (A)87 (PRP)
Connection3‑phase + Neutral (3PH + N)
Air Flow - Standby Intake (kg/hr)193.3
Air Flow - Standby Cooling (m3/min)1m3/s
Air Flow - Alternator Fan (m3/s)0.216
Output - Engine54
GovernorElectrical
FilterDry Type, Paper Element
Consumption - Engine Oil0.0025
Location - Fuel TankInternal (integrated in base frame / bedplate)
Relative Humidity30% (reference conditions)
Installation - PlaceIndoor or Outdoor (model dependent)
Volume - Shipping (Sea Ready) (m3)4.72
Recommended OilACEA E6 / ACEA E9 / API CJ-4
Size - Exhaust Discharge90
Power - Starter Motor (kW)4.2
Regulator TypeAVR
Air Flow
193.3kg/h (Standby intake)
1m3/min (Standby cooling)
0.216m3/s (Alternator fan)
