6t Diesel 4WD Site Dumpers

Name: 6t Diesel 4WD Site Dumpers | Sunbelt Rentals
SKU: 10000687

Product Code: 10000687

Introducing our 6t diesel 4wd site dumper, engineered for superior manoeuvrability and performance on construction sites. With a safe working load of 6 tonnes, this robust dumper is perfect for transporting heavy materials across rugged terrain. It features efficient fuel consumption at 5.4 litres per hour, with average emissions of just 17 units per operating hour, promoting environmentally responsible work practices. Ideal for construction professionals seeking reliability and power in their operations. Product ID: 10000687

We'll pick the exact model you receive, as availability can change day-to-day.

They all perform to the same high standard, so whichever one you receive will do the job perfectly.

Choose a product

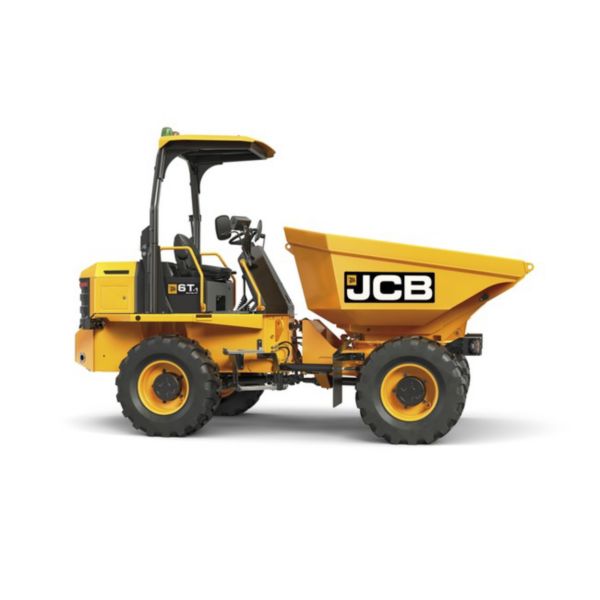

50002849_JCB_6T_1_6t_Diesel_4WD_PSHUTTLE_Front_Tip_Site_Dumper_Tier_4_Right_View15724.jpeg

Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

The JCB 6T-1 Front Tip Tier 4 is a robust and efficient machine, designed for versatility in construction tasks. Its compact dimensions enhance manoeuvrability, making it ideal for tight spaces on site. Experience reliable performance and exceptional build quality with this powerful front tip dumper.

Item ID: 50002849

Reference: 015179

Length (mm)

4790

Height (mm)

3350

Width (mm)

2260

Weight (kg)

4840

Ground Clearance (mm)

310

Wheelbase (m)

2.48

Size - Tyres

405–70–20 14PR

Height - Loadover (m)

1.79

Radius - Turning (Range) (m)

5.76 - 5.9

Height - To Skip Front Lip (Untipped) (m)

1.67

Height - To Skip Front Lip (Tipped) (m)

0.31

Height - Over Skip (Tipped) (m)

2.41

Distance - Front Discharge (m)

0.6

Height - To Top of ROPS (With/w/o Beacon) (mm)

3350 / 3130

Height - To Top of ROPS/FOPS (With/w/o Beacon) (mm)

3350 / 3170

Height - ROPS Folded (mm)

2010

Height - ROPS/FOPS Folded (mm)

2940

Height - To Top of Cab (With/w/o Beacon) (mm)

3300 / 3010

Width - Skip (mm)

2310

Width - Track (Standard/Narrow Tyres) (mm)

1850

Length - ROPS (mm)

5020

Transmission Type

4-Speed powershift

Capacity - Fuel Tank (L)

Capacity - Hydraulic Tank (L)

Torque (Nm @ rpm)

400

No. of Cylinders

Brakes Type

Foot brake-oil immersed discs on front/rear / Over center parking brake-dry disc on gearbox

Speed - Travel (Range) (mph)

3.1 (1st Gear), 5 (2nd Gear), 9.4 (3rd Gear), 15.9 (4th Gear)

Drive Control Type

4 / 4 forward and reverse – permanent 4WD

Payload (t)

Angle - Skip Tip (°)

Weight - Operating (ROPS - Full Tank & 75kg Operator) (kg)

4900

Weight - Operating (ROPS/FOPS - Full Tank & 75kg Operator) (kg)

4980

Weight - Operating (Cab - Full Tank & 75kg Operator) (kg)

5240

Tipping Type

Front Tip

Angle - Steering (°)

Oscillation (°)

Capacity - Skip (Struck) (L)

2540

Capacity - Skip (Heaped) (L)

3190

Capacity - Skip (Liquid) (L)

1974

Aspiration

Turbocharged
