7m Diesel Telescopic Handlers

Name: 7m Diesel Telescopic Handlers | Sunbelt Rentals
SKU: 10000605

Product Code: 10000605

The 7m diesel telescopic handler is a versatile and robust machine designed for lifting and moving materials on construction sites. With its impressive reach and powerful diesel engine, this handler ensures efficiency in a variety of applications, from loading to unloading tasks. Its durable design and intuitive controls make it an essential tool for any construction project that requires heavy lifting. Product ID: 10000605

We'll pick the exact model you receive, as availability can change day-to-day.

They all perform to the same high standard, so whichever one you receive will do the job perfectly.

Choose a product

Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

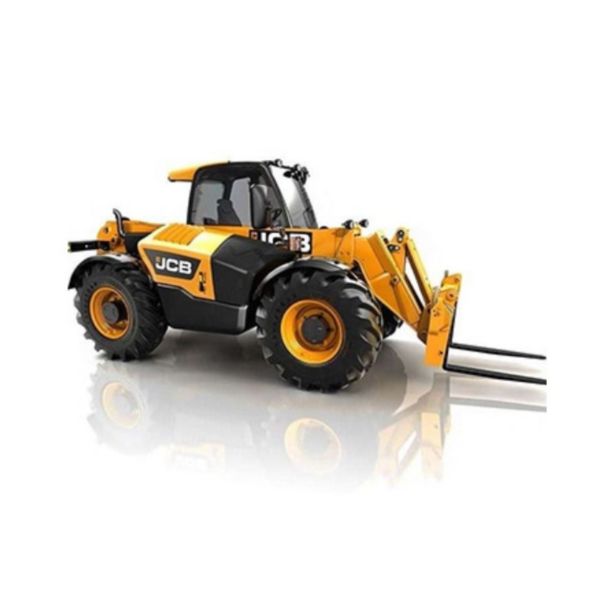

The JCB 531-70 Tier 4 is a robust telehandler, designed for versatility on construction sites. With its powerful performance and compact dimensions, it effortlessly lifts materials to impressive heights, enhancing productivity and efficiency. Ideal for various applications, this machine combines reliability with advanced technology for superior operation.

Item ID: 50002710

Reference: 026053

Length (mm)

4990

Height (mm)

2490

Width (mm)

2230

Weight (kg)

7060

Power Source / Fuel Type

Diesel

Battery (V/Ah)

12V

Voltage - System (V)

Engine Make

JCB

Engine Model

430DieselMAX

Engine Serial Number

FN320/41537U1445621 (2021) / FN320/41537U1125422 (2022)

Engine Variant Options

JCB 430 DieselMAX Stage V, 3 litre, 4 cylinder, turbo charged 3L turbocharged and aftercooled electronic common rail fuel injection (Stage V) > 55kW Engine 55kW (74hp) @ 2200rpm, 440Nm torque at 1300rpm JCB 448 DieselMAX Stage V, 4.8 litre, 4 cylinder, turbo charged Engine 81kW (109hp) @ 2200rpm, 516Nm torque at 1300rpm

Engine Stage/Tier

StageV

Power - Engine (max) (kW)

Power - I.C. Engine Rating (hp)

Time - Boom Raise (Sec)

7.2

Time - Boom Lower (Sec)

5.4

Time - Boom Extend (Sec)

6.8

Time - Retract (Sec)

Time - Bucket Dump (Sec)

3.5

Time - Bucket Crowd (Sec)

2.9

Angle - Carriage Roll Back (°)

42.6

Angle - Carriage Dump (°)

37.5

Capacity - Lifting (kg)

3100

Capacity - At Full Forward Reach (kg)

1250

Capacity - At Full Lift Height (kg)

2400

Speed - Travel (mph)

Steering & Traction Drive

2/4WD, 3 steer modes

Flow Rate - System Pressure (l/min @ bar)

82@240

Transmission Type

4 speed powershift gearbox.

Loads - Axle (kg)

3660-3690 (7350)

Loads - Axle (Laden) (kg)

8920-1520 (10450)

Capacity - Fuel Tank (L)

146

Capacity - Hydraulic Tank (L)

115

Speed - Rated (rpm)

2200

Torque (Nm @ rpm)

440@1300

No. of Cylinders

Cylinder Arrangement

In Line

Combustion System

4- Stroke Direct Injection

Displacement (L)

2.98

No. of Valves - Per Cylinder

Pressure - Lubricating Oil (bar)

4.5

Fuel Injection Pump

High pressure pump, with a common rail and electronic

controlled injectors with combined fuel metering

Building Information Modelling (BIM)

Digital Download

View Model
