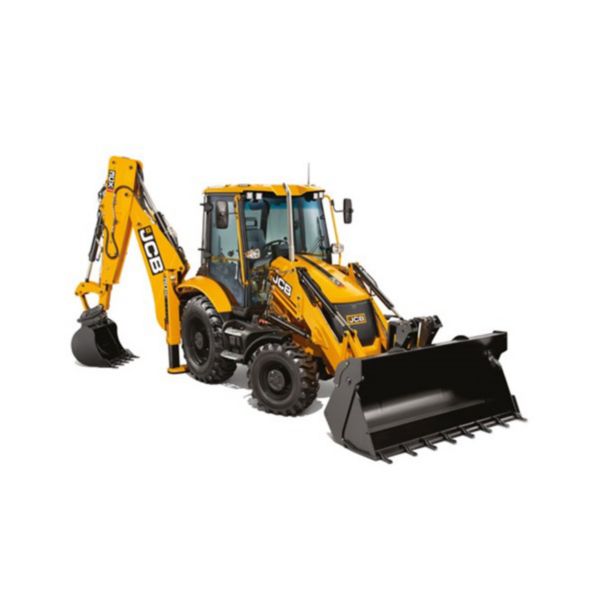

JCB 3CX 8t Diesel Backhoe Loader Stage V
The JCB 3CX Stage V is a versatile backhoe loader, perfect for construction projects. Its compact design and powerful performance make it ideal for digging, lifting, and loading tasks. Experience reliability and efficiency on-site with this exceptional machine.
Item ID: 50002917
Reference: 021014
Basic Dimensions
Length (mm)5900
Height (mm)3500
Width (mm)2300
Weight (kg)7887 (Fixed dipper) / 8320 (Extended dipper)
Environmental & Sustainability
Average Usage Emissions Per Operating Hour (ERA)33.2
Average Consumption Per Operating Hour (ERA)10.5
Average Engine Operating Hours Over A Rental Day (ERA)3.8
Convenience Features
HeaterYes
TelematicsYes
ImmobiliserYes
LED WorklightsYes
Air ConditioningYes
Mechanical Suspension SeatYes
2WSYes
AWSNo
Crab SteerNo
SRSYes
TorqueLockYes
Power Source
Power Source / Fuel TypeDiesel
Battery (V/Ah)120Ah
Output - Alternator (Ah)105
Engine MakeJCB
Engine ModelDieselMAX430StageV55kW
Engine Stage/TierStageV
Power - Engine (max) (kW)55
Power - I.C. Engine Rating (hp)74
Safety Information
Vibration - Whole Body (m/s2)0.5
Vibration - Hand-Arm (m/s2)2.5
Noise Level (dB)74 - 75
Sound Pressure (dB)102
WipersYes
SeatbeltYes
Travel AlarmYes
Technical Dimensions
Size - Wheel (in)18/20 (front), 26 (rear)
Bore & Stroke (mm)92 x 112
Height - Dump (m)2.74
Height - Loadover (m)3.84
Height - To Hinge Pin (Fully Raised) (m)3.45
Reach - At Ground Level (Toe Plate Horizontal) (m)1.42
Reach - At Full Height (max) (m)1.2
Reach - At Full Height Fully Dumped (m)0.83
Width - Shovel (mm)2350
Kingpost Clearance (mm)520
Depth - Dig Below Ground (m)0.07
Turning Circle (Kerb to Kerb) (m)6.9 - 8.1
Clearance - Loader Circle (m)9.5 - 10.4
Depth - Dig SAE (max) (m)4.24
SAE 2ft Flat Bottom (m)4.21
Depth - Dig with Deep Profile Bucket (max) (m)4.75
Reach - GLTRWC (m)6.72
Reach - Ground Level to Slew Centre (m)5.37
Reach - At Full Height to Slew Centre (m)2.74
Reach - Side to Machine Centre Line (m)5.94
Height - Operating SAE (m)5.53
Height - Loadover SAE (m)3.4
Travel - Kingpost (m)1.16
Travel - Kingpost (Narrow Frame Option) (m)1.05
Distance - Axle Centre Line (m)2.17
Distance - Slew Centre to Rear Axle (m)1.36
Clearance - Stabiliser Feet (mm)370
Height - Steering Wheel Centre (mm)1940
Height - Cab Roof (mm)3030
Clearance - Total Travel (mm)3610
Width - Rear Frame (mm)2350
Reach - Pin Forward (m)0.36
Length - Forks Tine (mm)1100
Width - Forks Tine (mm)80
Reach - Forks @ Ground Level (m)1.95 (Quickhitch), 2.66 (6-in-1)
Reach - Forks @ Full Height (m)1.73 (Quickhitch), 2.25 (6-in-1)
Height - Fork Lift (m)2.92 (6-in-1), 3.25 (Quickhitch)
Length - Fork Spacing (mm)200 - 2170 (6-in-1), 380 - 1360 (Quickhitch)
Width - 6-in-1 Shovel (mm)2240 - 2350
Width - GP Shovel (mm)2240 - 2350
Technical Specifications
Speed - Travel (mph)25
Steering & Traction DriveSteer drive
Capacity - Hydraulic System (L)117
Transmission TypeJCB 6 speed Autoshift TorqueLock
Capacity - Fuel Tank (L)150
Speed - Rated (rpm)2200
Torque (Nm @ rpm)440 @ 1200
No. of Cylinders4
Displacement (L)3
Cooling SystemHot climate specification, pressurised 1.0 bar suction fan. Pressurised recovery tank with integral filler neck
Axles Type
JCB steer drive with torque proportional / JCB epicyclic hub reduction with torque
proportional
Angle - Ground Rollback (°)45
Angle - Dump (°)43
Flow Rate - Pump (l/min)165
Lighting TypeFRONT: 4 x 1000 lumen LED adjustable lights (standard) / 4 x 2000 lumen LED adjustable lights (option). REAR: 4 x 1000 lumen LED adjustable lights (standard) / 6 x 2000 lumen LED adjustable lights (option).
Payload (t)8
AspirationTurbocharged and Intercooled
Capacity - Cooling Tank (L)18.5
Capacity - Engine Oil (L)15
Tearout - Bucket (max) (kN)53.26 - 62.02
Tearout - Dipper (max) (kN)31.55
Angle - Approach (°)66
Angle - Bucket Rotation (°)201
Pressure - Main Relief (bar)251
Capacity - Gearbox (L)16
Capacity - Rear Axle (L)16
Capacity - Front Drive Axle (L)16
Flow - Loader Aux (lpm)140
Excavator Type14ft Fixed / ExtraDig
Capacity - Shovel (6-in-1) (m³)1
Load - Static Rating16500 - 25000
Load - Dynamic Rating8300 - 12500
Steering Turns (Lock to Lock)2 and 3⁄4
Speed - Transmission3.2 (Gear 1), 5.9 (Gear 2), 8.4 (Gear 3), 12 (Gear 4), 22 (Gear 5), 25 (Gear 6)
Capacity - Lift (Bucket @ Full Treach) (kg)1584
Fuel Filter TypeReplaceable cartridge plus water/sediment separator prefilter
Air Cleaner TypeDual, dry element type, with self cleaning internal air intake precleaner
Oil Filter & Lubrication TypeFull flow, spin-on type filter
Angle - Interference (°)120
Angle - Departure (°)20
Breakout - Loader Shovel (kN)60.5 - 64
Breakout - Loader Arms (kN)46.4 - 48.5
Capacity - Operating Rated 7ft 4 (kN)31.7 - 34.1
Capacity - Operating Rated 7ft 8 (kN)30.1 - 33.7
Force - Clamping Shovel (kN)28.8
Load - Safe Working (500mm Load Centres) (kg)1000 (6-in-1), 2000 (Quickhitch)
Rated - GP Shovel (m³)1.1
Struck - GP Shovel0.83 - 0.91
Rated - 6-in-1 Shovel (m³)1.1 - 1.12
Struck - 6in-1 Shovel0.76 - 1.02
