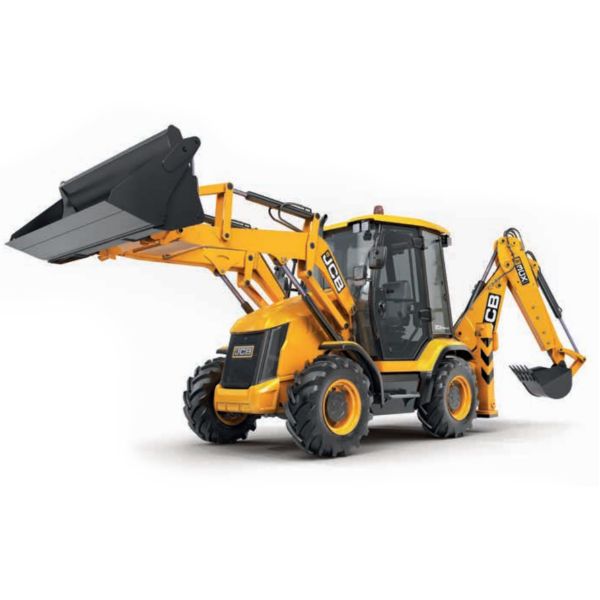

JCB 3CX 8t Diesel Backhoe Loader Tier 4
The JCB 3CX Tier 4 is a versatile and powerful backhoe loader, perfect for construction projects. With superior digging capabilities and robust performance, it ensures efficiency on site. Its compact design allows for easy manoeuvrability in tight spaces.
Item ID: 50002918
Reference: 021210
Basic Dimensions
Length (mm)5520
Height (mm)3500
Width (mm)2010
Weight (kg)5905 (12 ft fixed) / 6130 (12 ft extradig)
Convenience Features
HeaterYes
TelematicsYes
ImmobiliserYes
LED WorklightsYes
Air ConditioningYes
Mechanical Suspension SeatYes
2WSYes
AWSNo
Crab SteerNo
SRSYes
TorqueLockYes
Power Source
Power Source / Fuel TypeDiesel
Battery (V/Ah)120Ah
Output - Alternator (Ah)105
Engine MakeKohler
Engine ModelKDI2504TCR
Engine Stage/TierTier4
Power - Engine (max) (kW)55
Power - I.C. Engine Rating (hp)74
Safety Information
Vibration - Whole Body (m/s2)0.5
Vibration - Hand-Arm (m/s2)2.5
Noise Level (dB)71
Sound Pressure (dB)101
WipersYes
SeatbeltYes
Travel AlarmYes
Technical Dimensions
Size - Wheel (in)18/20 (front), 26 (rear)
Bore & Stroke (mm)88 x 102
Height - Dump (m)2.15
Height - Loadover (m)3.05
Height - To Hinge Pin (Fully Raised) (m)3.2
Reach - At Ground Level (Toe Plate Horizontal) (m)1.52
Reach - At Full Height (max) (m)1.16
Reach - At Full Height Fully Dumped (m)0.64
Width - Shovel (mm)2010
Kingpost Clearance (mm)520
Depth - Dig Below Ground (m)4.33
Turning Circle (Kerb to Kerb) (m)5.8 - 6.7
Depth - Dig SAE (max) (m)3.38
SAE 2ft Flat Bottom (m)3.36
Reach - GLTRWC (m)5.82
Reach - Ground Level to Slew Centre (m)4.6
Reach - At Full Height to Slew Centre (m)2.71
Reach - Side to Machine Centre Line (m)4.91
Height - Operating SAE (m)4.57
Height - Loadover SAE (m)3.32
Travel - Kingpost (m)1
Distance - Axle Centre Line (m)1.99
Distance - Slew Centre to Rear Axle (m)1.16
Clearance - Stabiliser Feet (mm)330
Height - Steering Wheel Centre (mm)1940
Height - Cab Roof (mm)2650
Clearance - Total Travel (mm)2740
Width - Rear Frame (mm)1890
Reach - Pin Forward (m)0.43
Width - Jaw Opening (mm)700
Length - Forks Tine (mm)1100
Width - Forks Tine (mm)80
Reach - Forks @ Ground Level (m)1.95 (Quickhitch), 2.66 (6-in-1)
Reach - Forks @ Full Height (m)1.73 (Quickhitch), 2.25 (6-in-1)
Height - Fork Lift (m)2.92 (6-in-1), 3.25 (Quickhitch)
Length - Fork Spacing (mm)200 - 2170 (6-in-1), 380 - 1360 (Quickhitch)
Width - 6-in-1 Shovel (mm)2240 - 2350
Width - GP Shovel (mm)2010
Technical Specifications
Speed - Travel (mph)25
Steering & Traction DriveFront and rear
Capacity - Hydraulic System (L)117
Transmission TypeBosch Hydrostatic Rexroth A6VM – 3 speed
Capacity - Fuel Tank (L)21.13
Speed - Rated (rpm)2200
Torque (Nm @ rpm)300 - 440 @ 2350
No. of Cylinders4
Displacement (L)2.4
Cooling SystemHot climate specification, pressurised 1.0 bar suction fan. Pressurised recovery tank with integral filler neck
Axles Type
JCB Max-trac steer drive torque proportioning standard,
LSD - limited slip differential optional
Oscillation - Axles (˚)9.5
Angle - Ground Rollback (°)45
Angle - Dump (°)45
Flow Rate - Pump (l/min)165
Lighting TypeFRONT: 4 x 1000 lumen LED adjustable lights (standard) / 4 x 2000 lumen LED adjustable lights (option). REAR: 4 x 1000 lumen LED adjustable lights (standard) / 6 x 2000 lumen LED adjustable lights (option).
Payload (t)8
AspirationTurbo charged
Capacity - Cooling Tank (L)4.23
Capacity - Engine Oil (L)2.96
Angle - Approach (°)45
Angle - Bucket Rotation (°)187
Pressure - Main Relief (bar)251
Capacity - Rear Axle (L)2.38
Capacity - Front Drive Axle (L)2.38
Flow - Loader Aux (lpm)70
Excavator Type12ft fixed 12ft extending
Capacity - Shovel (6-in-1) (m³)1
Load - Static Rating7484
Load - Dynamic Rating3765
Steering Ram TypeDouble acting
Steering Turns (Lock to Lock)4
Speed - Transmission6 (Gear 1), 10 (Gear 2), 40 (Gear 3)
Fuel Filter TypeReplaceable cartridge plus water/sediment separator prefilter
Air Cleaner TypeDual, dry element type, with self cleaning internal air intake precleaner
Oil Filter & Lubrication TypeFull flow, spin-on type filter
Angle - Interference (°)124.5
Angle - Departure (°)19
Load - Safe Working (500mm Load Centres) (kg)1000 (6-in-1), 2000 (Quickhitch)
Rated - GP Shovel (m³)1.1
Struck - GP Shovel0.83 - 0.91
Rated - 6-in-1 Shovel (m³)1.1 - 1.12
Struck - 6in-1 Shovel0.76 - 1.02
