8t Diesel Mini/Micro Tracked Excavators Stage V HFR TU

Name: 8t Diesel Mini Excavators V HFR TU | Sunbelt Rentals
SKU: 10000708

Product Code: 10000708

Discover our advanced 8-tonne diesel mini/micro tracked excavators, equipped with cutting-edge human form recognition technology. Designed for versatility and precision, these excavators are perfect for urban construction and tight spaces. Their compact size allows for easy manoeuvrability, while the powerful diesel engine ensures optimal performance. The innovative safety features enhance operator protection, making it a reliable choice for any project. Product ID: 10000708

We'll pick the exact model you receive, as availability can change day-to-day.

They all perform to the same high standard, so whichever one you receive will do the job perfectly.

Choose a product


Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

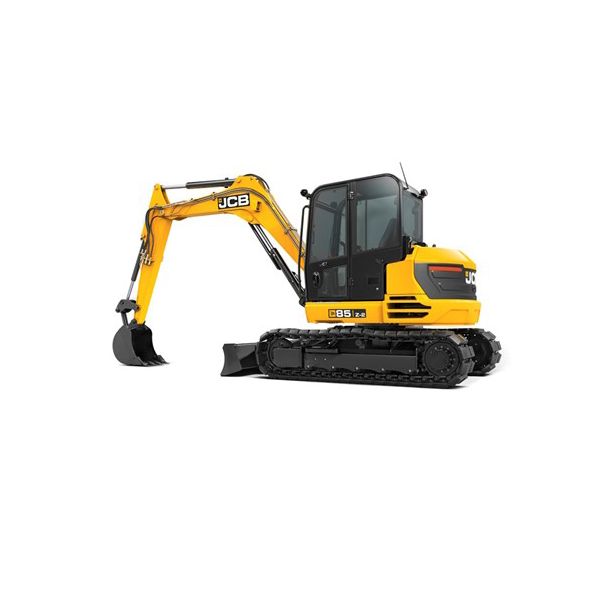

The JCB 85Z-2 Stage V HFR is a robust and efficient mini excavator, designed for versatility in construction tasks. Its compact size allows for easy manoeuvrability in tight spaces, while delivering powerful performance. Ideal for various applications, it’s a reliable choice for any project.

Item ID: 50002907

Reference: 021425

Length (mm)

5830

Height (mm)

2710

Width (mm)

2170

Weight (kg)

8300

Ground Clearance (mm)

350

Bore & Stroke (mm)

88 x 102

Length - Track (mm)

2320

Length - Undercarriage (mm)

2950

Kingpost Clearance (mm)

790

Length - Cab/Canopy (mm)

1940

Width - Cab/Canopy (mm)

1040

Height - Cab/Canopy (mm)

1550

Height - Dump (Range) (m)

4.67

Distance - Sprocket Idler Centres (mm)

2320

Radius - Tailswing (m)

1.15

Height - Dozer (mm)

620

Width - Dozer (mm)

2230

Height - Dozer Blade (mm)

620

Reach - Infront of Tracks (m)

2.17

Width - Over Tracks (mm)

2300

Height - Track (mm)

650

Width - Track (mm)

450

Gauge - Track (m)

1.85

Height - Dig (max) (m)

6.49

Length - Boom (mm)

2.9

Reach - Digging (max) (m)

6.6

Reach - Digging on Ground (max) (m)

6.4

Depth - Dig Below Ground (m)

0.46

Height - Dozer Above Ground (max) (m)

0.47

Depth - Dig Dozer Up (m)

3.23

Depth - Dig Dozer Down (m)

3.62

Height - To Dipper Nose Pivot Pin (mm)

5550

Radius - Front Swing No Offset (m)

2.85

Radius - Front Swing Fully Offset (m)

2.48

Length - Dozer Centre of Boss (mm)

1500

Counterweight Clearance (mm)

760

Length - Dipper (mm)

1650

Depth - Vertical Wallcut (m)

2.23

Capacity - Hydraulic System (L)

118

Capacity - Fuel Tank (L)

112

Capacity - Hydraulic Tank (L)

Torque (Nm @ rpm)

305 @ 1500

No. of Cylinders

Displacement (L)

2.5

Gradeability (%)

Cooling System

Water Cooled

Pressure - Working (bar)

40 - 100

Power - Tractive (kN)

Payload (t)

8.5

Capacity - Cooling Tank (L)

Capacity - Engine Oil (L)

11.2

Output - Nominal (lpm)

158.4

Tailswing Type

Zero

Weight - With Canopy (kg)

+14

Weight - With Long Dipper (kg)

+95

Tearout - Bucket (max) (kN)

57.1

Tearout - Dipper (max) (kN)

49.9

Speed - Slew (rpm)

No. of Bottom Rollers

Pressure - Ground Bearing (kg/cm2)

0.4

Track Tensioning Type

Grease

Angle - Boom Swing Right (°)

Angle - Boom Swing Left (°)

Angle - Dipper Rotation (°)

114

Angle - Approach (°)

27.8

Angle - Bucket Rotation (°)

1888

Capacity - Bucket (m3)

0.14 – 0.62

Weight - With Long Dozer (kg)

+16

Weight - With Mechanical Quickhitch (kg)

+67

Weight - FOPS Guard (kg)

+408

Pressure - Main Relief (bar)

226 - 300

Flow Rate - Hydraulic Aux (L)

190
