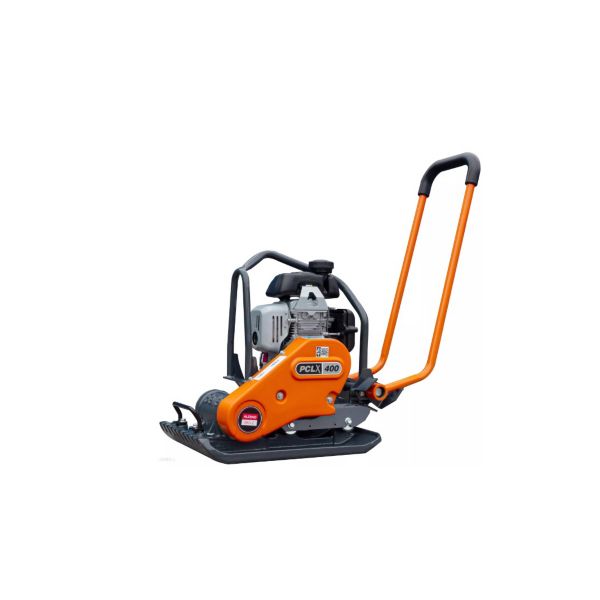

Altrad Belle PCLX 400 400mm Petrol Compaction Plate

Low-maintenance design for low TCO

Low hand-arm vibration

Control handle

Horizontal shaft gasoline (petrol) engine Air cooled 4-stroke OHV petrol engine,

25° inclined cylinder, horizontal shaft,

cast iron sleeve

Low Hand-Arm Vibration design for longer safe usage times.

Tubular frame designed to protect vulnerable components.

Baseplate designed for optimised speed and manoeuvrability.

Lightweight yet durable for easy transport

Removable 12 litre water tank features a quick-release design.

Fitted with manual handling points.

High power 13kN vibration force.

Engineered to be robust and durable for rental and heavy contractor usage.

Easy to operate and control, the baseplate does not dig in when dragged backwards or turned.

Operator Handle: Steel

Base Plate: Steel

Eccentric Weigh: Steel

Hand Grip: Rubber

Engine Housing: Aluminium

Engine Covers: Synthetic Material

Various Parts: Steel & Aluminium

Outstanding guiding characteristics: Whether on asphalt or soil – the BPS can be maneuvered effortlessly and delivers flawless surfaces.

Easy transport: A large lifting eye and wide, ergonomically designed carrying handles make moving and loading the machine easy and convenient.

Maintenance-free: The BPS series is equipped with an extremely sturdy V-belt and features bearings with lifelong lubrication. This makes it practically maintenance-free.

Accessories: wheel set and paving pad round off the application areas of the BPS.

4-stroke single cylinder

OHV petrol engine

25° inclined cylinder

horizontal shaft

• 2000/14/EC
• 2014/30/EU
• EN 500-1:2006 + A1:2009
• EN 500-4:2011 EN ISO 13766-1:2018

Outstanding guiding characteristics: Whether on asphalt or soil – the BPS can be maneuvered effortlessly and delivers flawless surfaces.

Easy transport: A large lifting eye and wide, ergonomically designed carrying handles make moving and loading the machine easy and convenient.

Maintenance-free: The BPS series is equipped with an extremely sturdy V-belt and features bearings with lifelong lubrication. This makes it practically maintenance-free.

Accessories: wheel set and paving pad round off the application areas of the BPS.

• 2000/14/EC
• 2014/30/EU
• EN 500-1:2006 + A1:2009
• EN 500-4:2011 EN ISO 13766-1:2018

A powerful petrol engine is the force behind the exciter unit and the foundation for the plate’s exceptional compaction performance.

A centrifugal clutch and V belt effectively transfer power to the exciter system that delivers the powerful forward movement.

An optional water sprinkling system enables work on bituminous surfaces and greatly enhances the compactor’s versatility.

An extended-life exciter unit stretches service intervals and reduces maintenance costs.

The base plate utilises wear-resistant materials and a self-cleaning design to lengthen the unit’s life.

The vibration-isolated guide handle reduces operator stress, permitting longer working shifts while minimising the risk of injury.

The handle can be folded flush with the machine or even removed, enhancing manoeuvrability in tight spaces and making transport easy.

4-stroke single cylinder

OHV petrol engine

25° inclined cylinder

horizontal shaft
