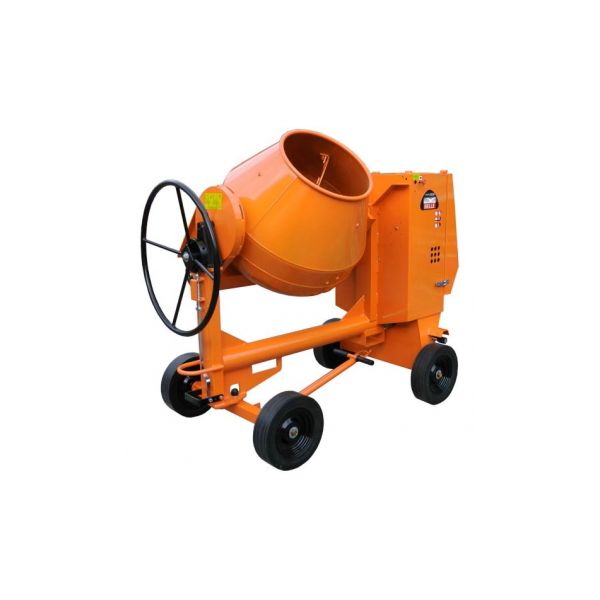

Altrad Belle PM40V Premier 220L 200XT Yanmar E/S Diesel Cement Mixer
The Altrad Belle PM40V Premier 200XT is a robust and reliable site mixer designed for professional use. With its durable construction and efficient mixing capabilities, it ensures a consistent blend for all your construction projects. The machine features an easy-to-use operation and is perfect for tackling both small and large jobs. Its compact design allows for easy transport and storage, making it an ideal choice for any construction site.
Item ID: 50003882
Reference: 009045
Basic Dimensions
Length (mm)1475
Height (mm)1765
Width (mm)900
Weight (kg)353.5
Convenience Features
Features
- Extra heavy-duty and robust chassis designed to withstand the worst site conditions.
- Extra rigid and reinforced drum to prevent distortion.
- Heavy duty wheels designed to operate in the toughest of conditions.
- Stage 5 compliant Yanmar L48 Electric-Start Diesel engine.
- Foot operated tip-lock and large tip wheel for added safety and control with large mixes.
- Enhanced mixing performance with ‘Quick Mix’ replaceable bolt in paddles.
- Easy-to-clean tubular chassis.
- New wider profile wheels for extra stability.
- Sealed, heavy-duty high specification gearbox reduced maintenance.
- Lockable stay cool engine compartment for security and lid down operation.
- Extra short wheel base on 100XT and 150XT to fit on compact vehicle tail lifts.
Power Source
Power Source / Fuel TypeDiesel
Engine/Motor Power (hp/kW)3.4/2.5
Engine Type
- Stage V 4-stroke Vertical Cylinder
- Air Cooled Diesel Engine
Engine MakeYanmar
Engine ModelL48
Technical Dimensions
Bore & Stroke (mm)70 x 57
Technical Specifications
MaterialMetal
ColourOrange
Speed - Drum (rpm)19
Capacity - Drum (L)250
Capacity - Mixing (L)110
Cleaning & MaintenanceWipe off any external material. DO NOT use petrol, turpentine, lacquer or paint thinner, dry cleaning fluids or similar products. Never let any liquids near the engine/motor. Use 1” gravel and clean water to clean the inside of the drum. DO NOT use bricks etc. as this will damage the drum.
Displacement0.219
Power - Continuous Rated3600 (3.1 kW) / 3000 (2.8 kW)
Starter TypeElectric start
Capacity - Fuel Tank (L)1.9
Capacity - Engine Oil (L)0.6
Weight - Engine Dry (kg)32
