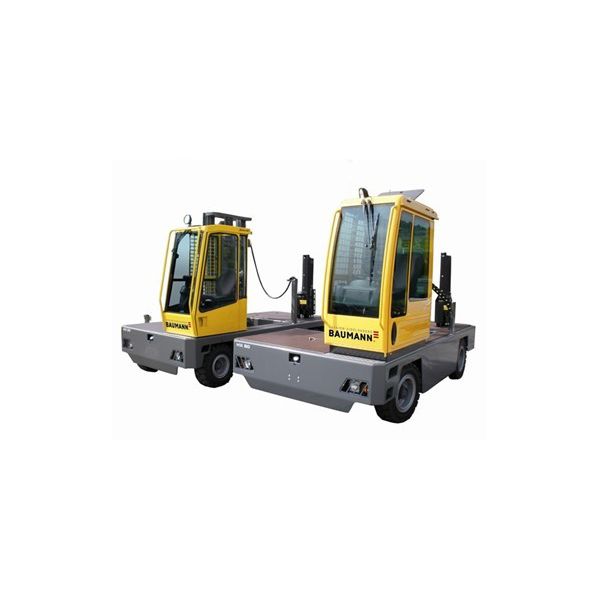

Baumann HX50 5t Diesel Side Loader Forklift
The Baumann HX50 is a robust and versatile material handling solution, designed for efficiency and ease of use on construction sites. With its compact dimensions, it manoeuvres easily in tight spaces while delivering powerful performance. Ideal for various lifting tasks, the HX50 is a reliable choice for your project needs.
Item ID: 50002743
Reference: 026003
Basic Dimensions
Length (mm)4400
Height (mm)2850
Width (mm)1950 - 2150
Weight (kg)7650
Convenience Features
Side-Entry CabYes
Power Source
Power Source / Fuel TypeDiesel
Battery (V/Ah)12V / 100Ah
Voltage - System (V)12
Engine MakeVM
Engine ModelD754E2754E3
Power - Engine (max) (kW)53
Power - I.C. Engine Rating (hp)72
Safety Information
Service BrakeYes
Parking BrakeYes
Technical Dimensions
Height - Lifting (max) (m)4
Size - Tyres635 - 38
Lift - Free (m)0.6
Height - Overall (Mast Extended) (mm)4880
Height - Cab (mm)2630
Width - Platform (mm)1200 - 1400
Height - Platform (mm)880
Movement - Lateral (mm)1500
Load Centre (mm)600 - 700
Load Spacing (mm)100
Length - Fork (mm)1200 - 1400
Width - Fork (mm)200
Thickness - Fork (mm)50
Size - Framework Cut (mm)1370
Fork Spacing (max) (mm)1300
Radius - Turning (Range) (m)0.39 (Inside) / 4.15 - 4.27 (Outside)
Width - Required in Aisle (m)2.3 - 2.5
Width - Required in Aisle 90° Turning (m)4.04 - 4.2
Ground Clearance - Range (mm)1200 - 2000
Wheelbase - Range (m)2.52
Technical Specifications
Capacity - Lifting (kg)5000
Steering & Traction DriveHydrostatic
Transmission TypeDirect
Displacement (L)3.1
Gradeability (%)15 - 21
Tyres TypePneumatic
Angle - Tilt-Up (°)3.5
Angle - Tilt-Down (°)3
Speed - Travel (Range) (mph)12 - 14
Speed - Lifting (Range) (m/sec)0.4 - 0.45
Speed - Lowering (Range) (m/sec)0.4 - 0.35
Speed - Traverse (m/sec)0.3
Power - Tractive (kN)31
Gearbox TypeHydrostatic
Weight - On Front Axle (Laden/Unladen) (kg)6186
Weight - On Rear Axle (Laden/Unladen) (kg)6414
Speed - Rated (Range) (rpm)2300
