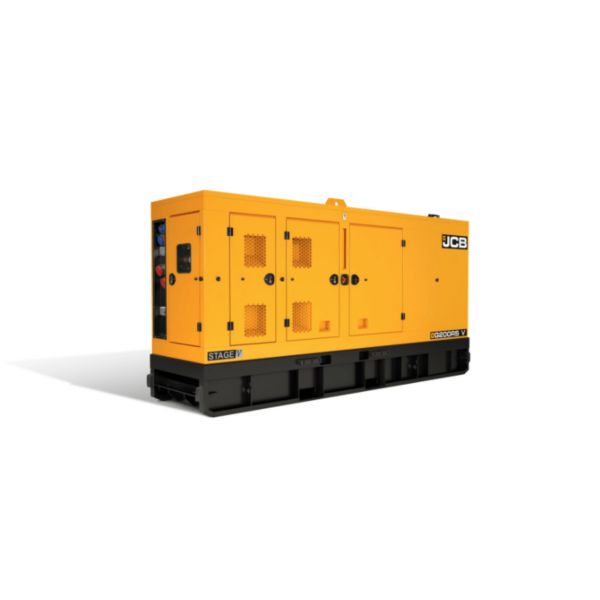

JCB G200RS 200kVA Diesel Generator Stage V Sync
The JCB G200RS is a robust and versatile machine, designed to meet the demanding needs of construction projects. With its compact dimensions and powerful performance, this model excels in both manoeuvrability and efficiency. Ideal for a range of applications, the G200RS combines reliability with advanced technology, ensuring optimal productivity on site. Its user-friendly controls and durable construction make it a favourite among professionals.
Item ID: 50001300
Reference: 029129
Basic Dimensions
Length (cm)422
Width (cm)110
Height (cm)220
Weight (kg)3650
Environmental & Sustainability
Emissions LevelDOC/DPF/SCR/CUCStageV
Consumption - Fuel (l/hr)46.8(100%Standby)/41(100%Prime)/30.8(75%Prime)/22(50%Prime)
Sound Pressure (dB)68
Average Usage Emissions Per Operating Hour (ERA)101.1
Average Consumption Per Operating Hour (ERA)32
Average Engine Operating Hours Over A Rental Day (ERA)5.5
Engine Stage/TierStageV
Power Source
Power Source / Fuel TypeDiesel
Voltage - Options (V)230 / 400
Phase3
Power - Prime (kVA/kW)200kVA / 160kW
Power - Standby (kVA/kW)220kVA / 176kW
Power - Factor (cos)0.8
Current - Rated (RPR)289
Capacity - Fuel Tank (L)468
EngineFPT N67TEVP05.00
Battery (V/Ah)24V
Power - Emergency Standby (kVA/kW)220 / 176
Voltage (V)24
Battery TypeLeadAcid
Engine MakeIvecoFPT
Engine ModelN67TEVP05
Safety Information
Insulation ClassH
Protection Class (IP)23
Temperature - Standby (max) (°C)550
Technical Dimensions
Bore & Stroke (mm)110 x 135
Technical Specifications
Controller OptionsDeep Sea Electronics (DSE) 8610
Frequency50Hz
Alternator TypeECO38-2S4 C
Autonomy
18.4hrs @ 50% load
12.5hrs @ 75% load
10.1hrs @ 100% load
Starting SystemElectric (battery powered)
No. of Cylinders6
Speed - Engine (rpm)1500
AspirationTurbocharged
Displacement (L)6.7
Displacement (cm³)6700
Capacity - Engine Oil (L)18
Ratio - Compression17 : 1
Injection TypeDirect, common rail
No. of Poles4
Exciter SystemBrushless via AVR
No. of Wires4
Air Flow - Fan (No Restriction) (m3/s)3.8
Coolant TypeWater
Capacity - Coolant (L)28
Temperature - Exhaust Gas (°C)550
Current (A)289 (PRP) / 318 (max.)
Rotation - DirectionCounter‑clockwise
Current (max) (A)318
ConnectionStar
ExcitationSelf‑regulating brushless
Air Flow - Standby Intake (kg/hr)690
Air Flow - Standby Cooling (m3/min)3.8
Firing Order1‑5‑3‑6‑2‑4
Capacity - DEF Tank (L)43
Consumption - DEF of Fuel (%)10.3
GovernorElectronic
FilterDry Type, Paper Element
Consumption - Engine Oil0.003
Location - Fuel TankIntegral fuel tank mounted in the base / bed frame
Flow - Exhaust Gas @ Standby (m3/min)14.3
Voltage - Alternator RegulatorAVR
No. of Batteries2
Installation - PlaceOutdoor or indoor installation, subject to adequate ventilation and clearance
Volume - Shipping (Sea Ready) (m3)10.2
Recommended Oil10W-30 (API CJ-4 / SN); 5W-40 (API CK-4)
Output - RPR Rating (kW)160
Output - Standby Rating (kW)176
FinishTotal Protection +
Capacity - AdBlue Tank (L)43
Regulator TypeAVR
Voltage - Regulation @ Steady State (+/- %)1
Charger Type24V
Air Flow
690kg/h (Standby intake)
3.8m3/min (Standby cooling)
3.8m3/s (Fan - no restriction)
