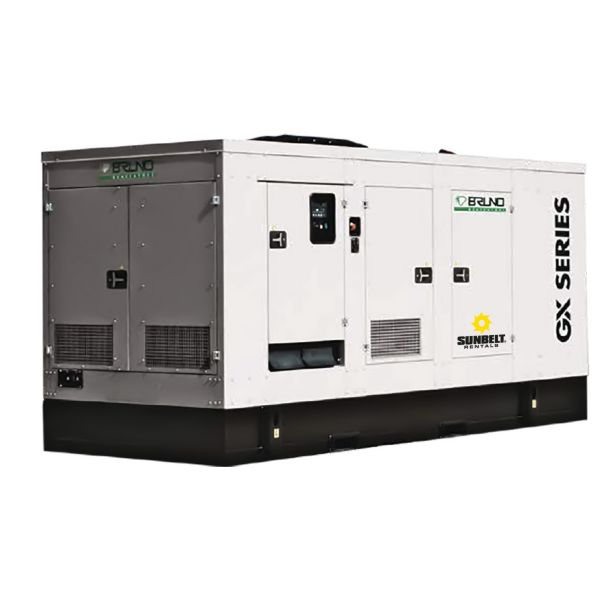

BGG GX725V 660kVA Diesel Generator Stage V Sync
Introducing the BGG GX725V V, a robust and reliable machine designed for demanding construction tasks. This model boasts impressive overall dimensions, ensuring optimal performance and efficiency on site. Enhance your project capabilities with this versatile equipment, tailored to meet the needs of the modern construction environment.
Item ID: 50001309
Reference: 029101
Basic Dimensions
Length (cm)485
Width (cm)200
Height (cm)230
Weight (kg)6,100
Environmental & Sustainability
Emissions LevelStage V
Consumption - Fuel (l/hr)50Hz:88|60Hz:100
Sound Pressure (dB)69
Average Usage Emissions Per Operating Hour (ERA)198.8
Average Consumption Per Operating Hour (ERA)62.9
Average Engine Operating Hours Over A Rental Day (ERA)6.2
Engine Stage/TierStageV
Power Source
Power Source / Fuel TypeDiesel
Voltage - Options (V)230 / 400
Phase3
Power - Prime (kVA/kW)660kVA / 528kW
Power - Standby (kVA/kW)726kVA / 581kW
Power - Factor (cos)0.8
Capacity - Fuel Tank (L)1500
EngineVolvo Penta TWD 1683 GE
Battery (V/Ah)24V
Voltage (V)24
Engine MakeVolvo
Engine ModelTWD1683GE
Safety Information
Insulation ClassH
Protection Class (IP)23
Temperature - Operating (°C)40
Technical Dimensions
Bore & Stroke (mm)144 x 165
Technical Specifications
Controller OptionsDeep Sea Electronics DSE7310 (Standard) / DSE8610 or DSE8610 MKII (Optional)
Frequency50Hz
Alternator TypeLeroy Somer LSA 49.3 S4
Starting SystemElectric (battery powered)
No. of Cylinders6
Speed - Engine (rpm)1500
AspirationTurbocharged
Displacement (cm³)16120
Capacity - Engine Oil (L)55
Ratio - Compression16.8 : 1
Injection TypeDirect
No. of Poles4
Exciter SystemBrushless via AVR
No. of Wires4
Overspeed (rpm)2250
Coolant TypeWater
Current (A)953 (PRP)
Capacity - DEF Tank (L)160
GovernorElectronic
FilterFuel filter with water separator, DOC, DPF, SCR
Altitude (max) (m)1000
Efficiency (%)94.8
Voltage - Alternator RegulatorStandard AVR AREP (D350)
Tolerance - Alternator Voltage (%)0.25
Current - Sustained Short Circuit300 % of rated current (10 s)
Recommended OilAPI CJ‑4 / API CK‑4
Output - RPR Rating (kW)528
Output - Standby Rating (kW)581
FinishSoundproof canopy in galvanised steel, powder‑coated
Main Tension400 / 230 V (3‑phase, 50 Hz)
Capacity - AdBlue Tank (L)160
Regulator TypeAVR
Power Factor (kVA)0.8
