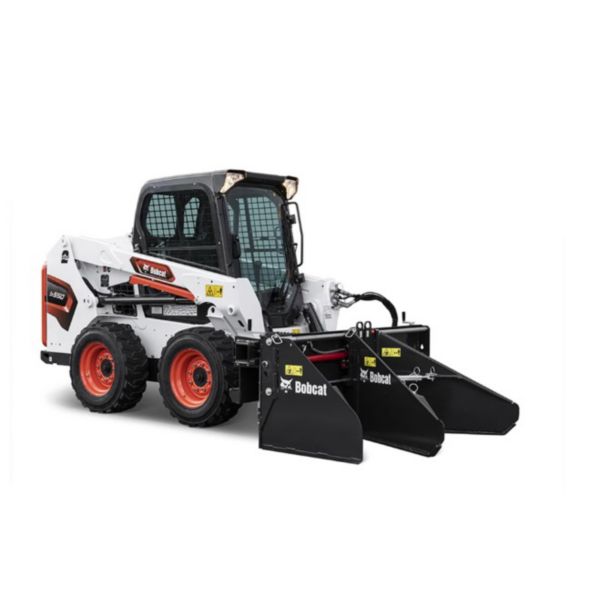

Bobcat S550 Diesel Skid Steer Loader
The Bobcat S550 is a robust and versatile skid-steer loader, ideal for various construction tasks. With its compact design and powerful performance, it easily navigates tight spaces while delivering exceptional lifting capabilities. Enhance your project's efficiency with this reliable machine, perfect for both small and large-scale applications.
Item ID: 50002739
Reference: 022023
Basic Dimensions
Weight (kg)2841
Environmental & Sustainability
Consumption - Fuel (l/hr)12.9 (100%) / 10.2 (70%) / 9.1 (50%) / 7.9 (30%)
Average Usage Emissions Per Operating Hour (ERA)19.2
Average Consumption Per Operating Hour (ERA)6.1
Average Engine Operating Hours Over A Rental Day (ERA)2.9
Convenience Features
Road LightingYes
Hydraulic ControlsYes
Power Source
Power Source / Fuel TypeDiesel
Engine MakeKubota
Engine ModelV2607DITE3BBC2
Power - Engine (max) (kW)45.5
Power - I.C. Engine Rating (hp)61
Safety Information
Service BrakeYes
Parking BrakeYes
Vibration - Whole Body (m/s2)0.89
Vibration - Hand-Arm (m/s2)1.58
Noise Level (dB)101
Technical Dimensions
Height - Lifting (max) (m)2.9
Wheelbase (m)1.08
Width - Over Tyres (mm)1520 - 1640
Size - Tyres10 x 16.5, 10-ply, Heavy duty, offset rims
Height - Dump (m)2.21
Height - To Hinge Pin (Fully Raised) (m)2.91
Reach - At Full Height Fully Dumped (m)0.5
Radius - Turning (Bucket Corner) (m)2.03
Technical Specifications
Capacity - At Full Lift Height (kg)894
Transmission TypeInfinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors
Torque (Nm @ rpm)201@1800
Displacement (L)2.6
Cooling SystemLiquid
Speed - Travel (Range) (mph)7.3 (Forward) / 11 (Reverse)
Angle - Of Departure (°)24.2
Angle - Ground Rollback (°)30
Angle - Dump (°)42
Load - Tipping (kg)1788
