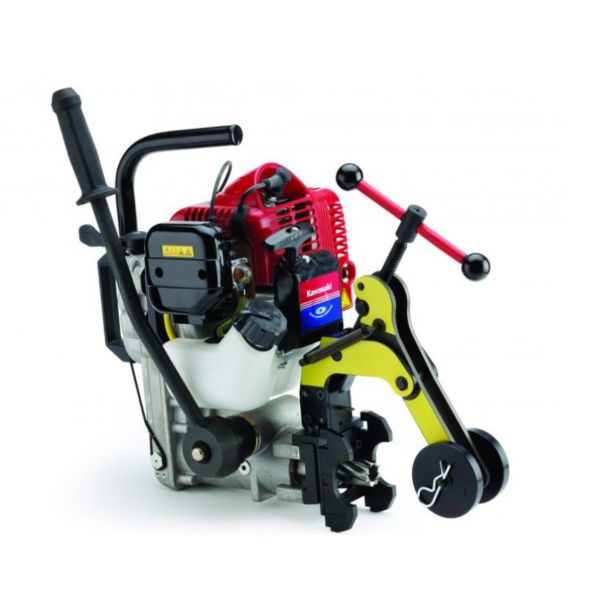

Cembre LD-1P Eco Petrol Rail Drill
Introducing the Cembre LD-1P Eco, an efficient and durable tool designed for precision in electrical connections. Its compact design ensures ease of handling, making it ideal for both professional and DIY projects. Experience reliability and performance with this top-tier product from Cembre.
Item ID: 50001568
Reference: 044135
Basic Dimensions
Length (mm)995
Width (mm)1076
Height (mm)454
Weight (kg)15.7 (Weight with DBG-F2: 18.9)
Environmental & Sustainability
Consumption - Fuel (l/hr)0.00178
Emissions Level
According to "Phase V" European regulation
2016/1628 and EPA regulation for engine in class V
Sound Power (dB)107.6
Sound Pressure (dB)99.5
Power Source
Power Source / Fuel TypePetrol
EngineCombustion Engine/Petrol (2-stroke, horizontal shaft, single cylinder)
Power1.4 kW (1.9 HP) / 7500 rpm
Starting SystemRope pull
Engine MakeKawasaki
Engine ModelTJ45E
Technical Dimensions
Capacity - Drill (mm)7-40
Diameter - Hole (max) (mm)40
Diameter - Hole (min.) (mm)7
Thickness - Rail (max) (mm)50
Thickness - Rail (min) (mm)0
Technical Specifications
Capacity - Fuel Tank (L)0.9
ClutchCentrifugal with automatic intervention
Displacement (cm³)45.4
Fuel Ratio (%)2 (1:50 ratio)
Gear SumpSHELL SPIRAX S4 TXM
IgnitionSolid state ignition (none breaker)
Recommended OilMOBIL SUPERMULTIGRADE 10-30-SAE or equivalents
Revolutions - Motor (per/min)7500
Spark Plug TypeNGK BPMR7A (or equivalent)
Speed - No Load (rpm)270
