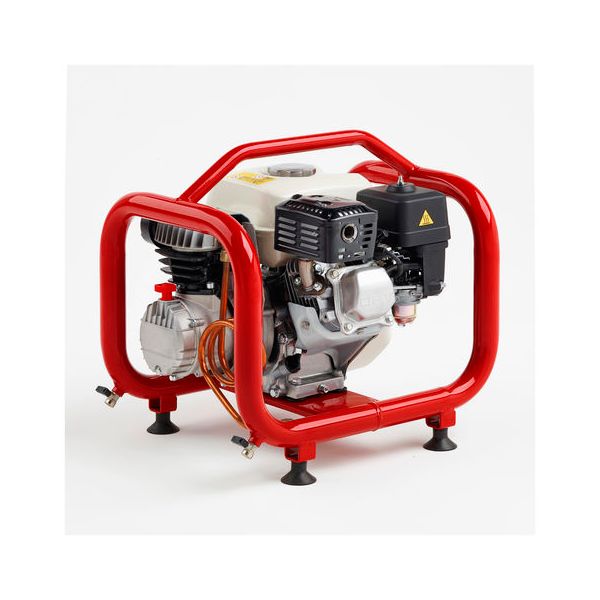

Clarke CFP11F 4.8HP 7.8CFM Petrol Air Compressor
The Clarke CFP11F is a robust and versatile tool, ideal for various DIY and construction tasks. Its compact design ensures easy handling, making it perfect for both professional and home use. Experience reliability and performance with this essential addition to your toolkit.
Item ID: 50004969
Reference: 002035
Basic Dimensions
Length (mm)380
Height (mm)470
Width (mm)490
Weight (kg)26.4
Environmental & Sustainability
Consumption - Fuel (L/hr)1.4
Emission LevelEURO 5 Compliant EU/2016/1628 regulations
Convenience Features
FeaturesClarke CFP11F Portable EURO 5 Compliant 4.8HP Petrol Engine Driven Compressor
TowableNo
Power Source
Power Source / Fuel TypePetrol
Engine/Motor Power (hp/kW)4.8hp / 3.3kW
Engine Type
Horizontal shaft gasoline (petrol) engine Air cooled 4-stroke OHV petrol engine,
25° inclined cylinder, horizontal shaft,
cast iron sleeve
Electrical SystemNegative earth
Engine MakeHonda
Engine ModelGX160
Safety Information
Temperature - Operating (℃)-5 to +40
Sound Power (dB)97
Safety SwitchNo
Technical Dimensions
Bore & Stroke (mm)68 x 45
Dimensions - Engine LxWxH (mm)312 x 362 x 346
Size - Air Outlet Thread (")1/4” BSP Male
Technical Specifications
MaterialSteel frame, steel air receiver tank, cast‑iron compressor cylinder block, aluminium cylinder head, cast‑iron engine block, aluminium engine components, steel fuel tank, steel exhaust, steel belt guard, rubber feet, rubber tyres (if fitted), plastic control components, brass/aluminium air fittings
Cylinder Sleeve Type25° inclined cylinder
Displacement0.163L (163 cm3 / 163cc)
Compression9.0:1
Power - Net3.6 kW (4.8 HP) / 3 600 rpm
Power - Continuous Rated
2.5 kW (3.4 HP) / 3 000 rpm
2.9 kW (3.9 HP) / 3 600 rpm
Torque - Net (Nm)10.3
Ignition TypeTransistorised
Starter TypeRecoil Starter (electric start optional)
Capacity - Fuel Tank (L)3.1
Capacity - Engine Oil (L)0.6
Weight - Engine Dry (kg)15.1
Cooling TypeAir
Capacity - Coolant (L)0
No. of Cylinders1
Flow Rate - Air (CFM)7.8
Pressure (bar)6.9
Pump TypeMK238
Pressure - Tyre (bar/psi)1.7 bar (25 psi) - only if fitted with small, pneumatic trolley wheels
Wheel TypePneumatic trolley wheels (if fitted to unit)
No. of Wheels2
Speed - Tow (mph)0
Capacity - Air Receiver (L)3.1
