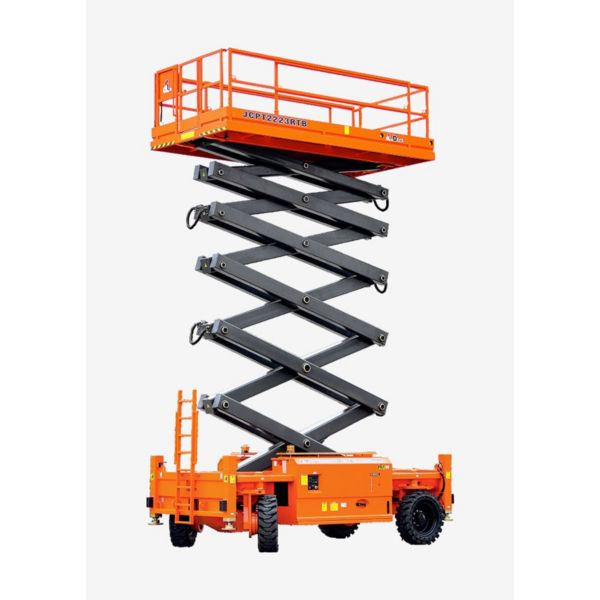

Dingli 2223DC RTE 72' Electric Scissor Lift
Basic Dimensions
Length (m)4.95
Width (m)2.46
Height (m)3.86
Weight (kg)13400
Environmental & Sustainability
Sound Power (dB)80
Convenience Features
All Motion AlarmYes
Non Marking TyresYes
Power To CageYes
Proportional ControlsYes
All-Wheel SteeringYes
Extended PlatformYes
Fold Down Hinged Railing SystemYes
Self Locking GateYes
OutriggersYes
HourmeterYes
Manual DescentYes
Proportional Lift UpYes
Tilt SensorYes
Power Source
Power Source / Fuel TypeElectric
Battery (V/Ah)48V / 630Ah
Engine - Stage 3AYes
Voltage (V)48
Safety Information
Flashing BeaconYes
Harness RingsYes
HornYes
Tilt AlarmYes
Emergency Stop ButtonYes
Technical Dimensions
Area - Platform (m²)10.3275
Ground Clearance (m)0.025
Ground Clearance - Stowed (mm)25
Height - Drive (m)20
Height - Stowed (m)3.86
Height - Working (m)22
Length - Platform (m)4.59
Length - Stowed (m)4.95
Size - Tyre36 × 14-20
Turning Radius - Inside (m)1.25
Turning Radius - Outside (m)3.4
Wheelbase (m)3.3
Width - Platform (m)2.25
Height - Hand Rails Down (m)3
Height - Platform (m)20
Height - Platform (max) (m)20
Height - Working (max) (m)22
Deck Extension (m)2.7
Technical Specifications
Capacity - Hydraulic Tank (L)150
Gradeability (%)30
Load - Safe Working (kg)750
Load - Wheel (max) (kg)539
No. of Lifting Eyes3.86
No. of Persons (Max)4
Pressure - Per Tyre Contact (psi/kPa)740
Slope (Max) (%)30
Speed - Drive (Elevated) (mph)0.25
Speed - Drive (Lowered) (mph)3.1
Speed - Drive (Raised) (mph)0.25
Speed - Drive (Stowed) (mph)3.1
Speed - Falling (Loaded) (s)75
Speed - Rising (Loaded) (s)90
Speed - Wind (max) (mph)27.97
Tyre TypeSolid rubber tyres
Charger Type48 V / 60 A
Drive Type48 V / 60 A
Hydraulic System150
Capacity - Total (kg)750
Weight - Total Aerial Platform (max) (kg)13.4
