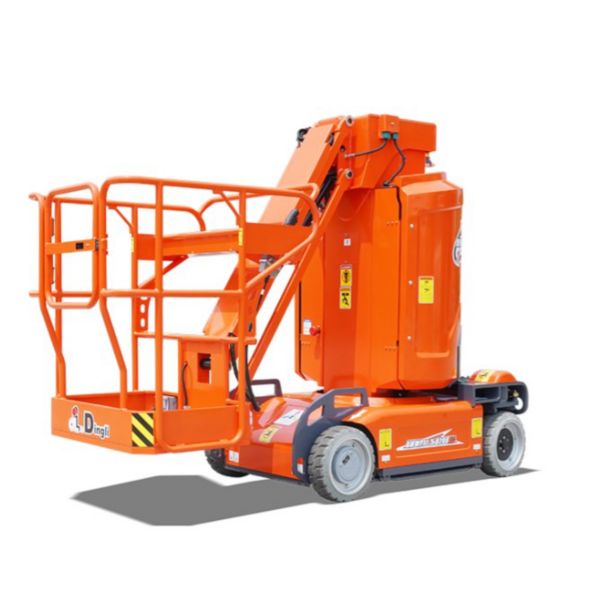

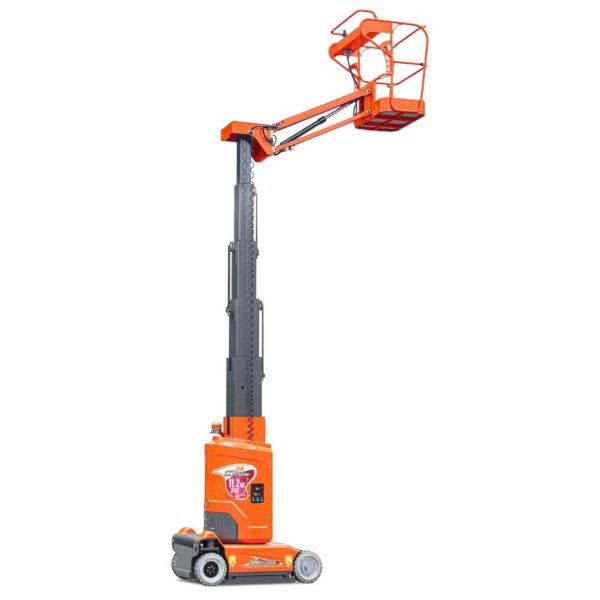

Dingli AMWP11.5-8200AC 32' Self-propelled Vertical Lift Harness On
The Dingli AMWP11.5-8200AC offers exceptional reach and stability for various construction projects. Its compact design enhances manoeuvrability, making it ideal for tight spaces. Experience superior performance with this robust access platform, tailored for efficient work at height.
Item ID: 50001269
Reference: 080210
Basic Dimensions
Length (m)2.62
Width (m)1
Weight (kg)2970
Environmental & Sustainability
Sound Power (dB)70
Convenience Features
All Motion AlarmYes
Articulating JibYes
Descent & Travel AlarmYes
Platform Load Sense SystemYes
Fork PocketsYes
On Board Diagnostic SystemYes
2WD Electric DriveYes
Manual Descent SystemYes
Strobe LightYes
Power Source
Power Source / Fuel TypeElectric
Voltage (V)24
Battery (V/Ah)24V/200Ah
Safety Information
Harness RingsYes
HornYes
Operating Temperature-20 to 40
Tilt AlarmYes
Technical Dimensions
Ground Clearance (m)0.07
Height - Closed (m)1.99
Height - Guardrail (m)1.10
Height - Stowed (m)1.99
Length - Platform (m)0.69
Length - Stowed (m)2.62
Size - Tyre381×127mm
Turning Radius - Inside (m)0
Turning Radius - Outside (m)1.80
Wheelbase (m)1.22
Width - Platform (m)0.93
Height - Platform (max) (m)9.2
Height - Working (max) (m)11.2
Length - Platform (max) (m)0.93
Width - Frame (m)1.00
Technical Specifications
Capacity - Hydraulic Tank (L)9
Capacity - Lift (kg)200
ControlsProportional joystick controls
Gradeability (%)25
Load - Safe Working (kg)200
Load - Tyre (max) (kg)1600
No. of Lifting Eyes2
No. of Persons (Max)2
Pressure - Ground Bearing (max) (kg/cm2)2250
Pressure - Per Tyre Contact (psi/kPa)16.2kg/cm2 1591.5kPa
Range - Articulated Jib (°)130
Rotation - Cage Working Area (°)345
Rotation - Direction345°
Rotation - Horizontal Jib (°)130
Speed - Drive (Elevated) (mph)0.31
Speed - Drive (Lowered) (mph)2.80
Speed - Wind (max) (mph)28
Tyre TypeSolid Tyres
Capacity (max) (kg)200
Motor TypeDriving Motor 2x15VAC/0.87kW (Lifting Motor 15VAC/3kW)
Speed - Lower/Raise Function (s)42/38
