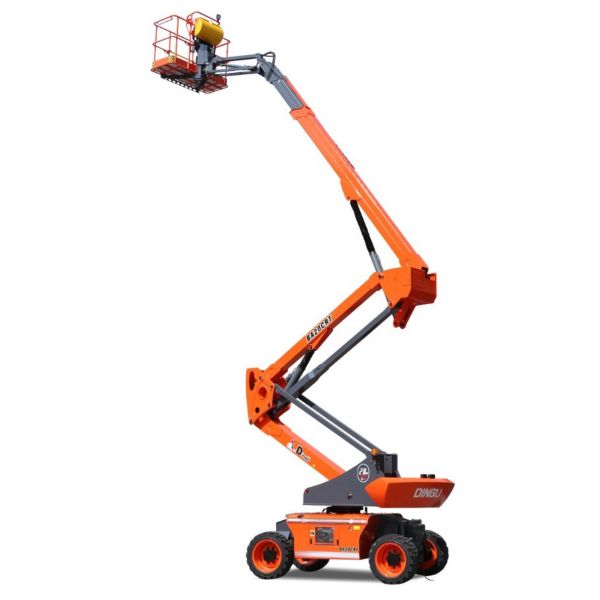

Dingli BA20CRT2 60' Diesel Articulating Boom Lift Stage V
The Dingli BA20CRT2 is a robust and reliable access platform, designed for efficient work at height. With its compact dimensions, it easily navigates tight spaces while providing excellent stability and safety. Ideal for construction projects, this machine enhances productivity without compromising on performance.
Item ID: 50000136
Reference: 079327
Basic Dimensions
Length (m)6.41
Width (m)2.44
Height (m)2.59
Weight (kg)8450
Environmental & Sustainability
Average Usage Emissions Per Operating Hour (ERA)10.6
Average Consumption Per Operating Hour (ERA)3.4
Average Engine Operating Hours Over A Rental Day (ERA)2.7
Engine Stage/TierStageV
Average Usage Emissions Per Operating Hour (ERA)10.6
Average Consumption Per Operating Hour (ERA)3.4
Average Engine Operating Hours Over A Rental Day (ERA)2.7
Convenience Features
All Motion AlarmYes
Articulating JibYes
4WDYes
Descent & Travel AlarmYes
Features
- Front Oscillating Axle
- Two-Wheel Steering
- Thumb Rocker Steer
- Drive Enable
- Ac Power Cord To Platform
- Hour Meter
- Integral Integrated Special Drive Axle
- Fault Diagnosis System
- Operator Anti-crushing Protection System
- Harsh Environment Kits
- Hydraulic Oil Radiator
- Anti-restart Engine Protection
- Anti-reverse Engine Device
- Auto Engine Fault Shutdown
Platform Load Sense SystemYes
Proportional ControlsYes
Self Levelling PlatformYes
Power Source
Power Source / Fuel TypeDiesel
EngineKubota D1105 18kW 2600rpm Diesel Engine
Engine - Stage 3ANo
Engine - Stage 3B Tier 4No
Engine - Stage 5Yes
Voltage (V)12
Engine MakeKubota
Engine ModelD1105
Safety Information
Flashing BeaconYes
Harness RingsYes
HornYes
Tilt AlarmYes
Technical Dimensions
Area - Platform (m²)1.45
Ground Clearance (m)0.31
Height - Elevated Platform (m)18.15
Height - Stowed (m)2.59
Height - Up & Over (m)8.18
Height - Working (m)20.15
Length - Jib (Overall) (m)1.5
Length - Platform (m)1.83
Outreach - Horizontal (m)11.13
Outreach (max) (m)11.13
Outreach - Working (m)10.53
Reach - Below Ground (m)1.25
Tail Swing (m)0.65
Turning Radius - Inside (m)3
Turning Radius - Outside (m)4.73
Wheelbase (m)2.4
Width - Platform (m)0.79
Technical Specifications
Capacity - Fuel Tank (L)115
Capacity - Hydraulic Tank (L)145
Capacity - Platform (kg)320
Gradeability (%)40
Load - Safe Working (kg)320
No. of Persons (Max)2
Range - Articulated Jib (°)132
Rotation - Hydraulic Platform (°)180
Rotation - Turntable (°)73
Rotation - Jib (°)132
Speed - Drive (Elevated) (mph)0.7
Speed - Drive (Lowered) (mph)3.7
Speed - Wind (max) (mph)28
Tyre TypeRough Terrain-RT 315/55D20
