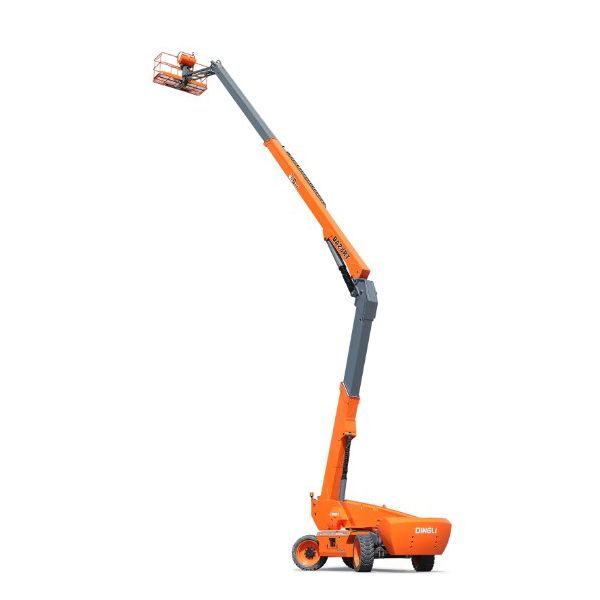

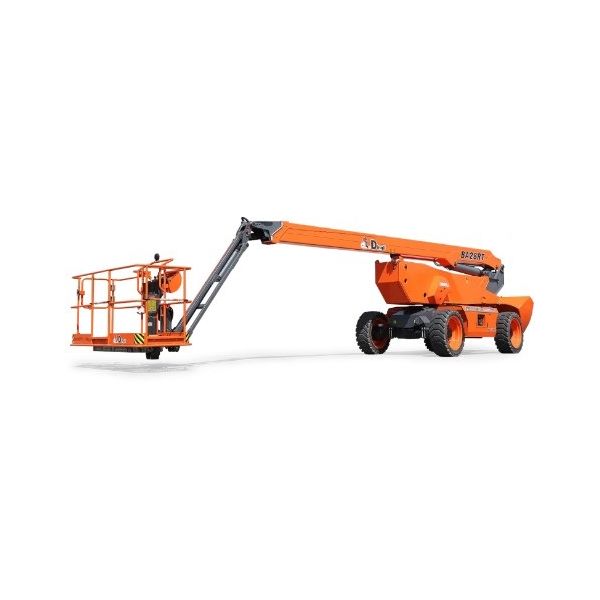

Dingli BA28RT 80' Diesel Articulating Boom Lift Stage V
The Dingli BA28RT is a robust and versatile aerial work platform, designed for maximum efficiency in construction tasks. With its compact dimensions, it is ideal for both indoor and outdoor use, enabling access to elevated areas with ease. This reliable equipment ensures safety and productivity on site, making it an essential addition to your project.
Item ID: 50000142
Reference: 079318
Basic Dimensions
Length (m)12.03
Width (m)2.5
Height (m)2.61
Weight (kg)18400
Environmental & Sustainability
Average Usage Emissions Per Operating Hour (ERA)17
Average Consumption Per Operating Hour (ERA)5.4
Average Engine Operating Hours Over A Rental Day (ERA)2.7
Engine Stage/TierStageV
Average Usage Emissions Per Operating Hour (ERA)17
Average Consumption Per Operating Hour (ERA)5.4
Average Engine Operating Hours Over A Rental Day (ERA)2.7
Convenience Features
All Motion AlarmYes
Articulating JibYes
4WDYes
Non Marking TyresYes
Platform Load Sense SystemYes
Platform WorklightsYes
Power Source
Power Source / Fuel TypeDiesel
EngineDeutz TD2.9 L4/55.4kW
Engine - Stage 3ANo
Engine - Stage 3B Tier 4No
Engine - Stage 5Yes
Voltage (V)12
Engine MakeDeutz
Engine ModelTD29L4
Safety Information
Harness RingsYes
Technical Dimensions
Area - Platform (m²)2.22
Ground Clearance (m)0.41
Height - Elevated Platform (m)26.1
Height - Stowed (m)2.89
Height - Up & Over (m)9.14
Height - Working (m)28.1
Length - Platform (m)2.44
Length - Stowed (m)11.83
Outreach - Horizontal (m)19.4
Outreach (max) (m)18.8
Outreach - Working (m)19.4
Reach - Below Ground (m)6.61
Size - Tyre385/45-28
Tail Swing (m)1.61
Turning Radius - Inside (m)1.87
Turning Radius - Outside (m)3.22
Wheelbase (m)2.8
Width - Platform (m)0.91
Technical Specifications
Capacity - Fuel Tank (L)135
Capacity - Hydraulic Tank (L)165
Capacity - Platform (kg)250
Gradeability (%)45
Load - Safe Working (kg)250
No. of Persons (Max)2
Pressure - Hydraulic (bar)420
Range - Articulated Jib (°)135
Rotation - Horizontal Jib (°)360
Rotation - Hydraulic Platform (°)180
Rotation - Jib (°)72 - 360
Speed - Drive (Elevated) (mph)0.7
Speed - Drive (Lowered) (mph)3.7
Speed - Wind (max) (mph)28
Tyre TypeRough Terrain
