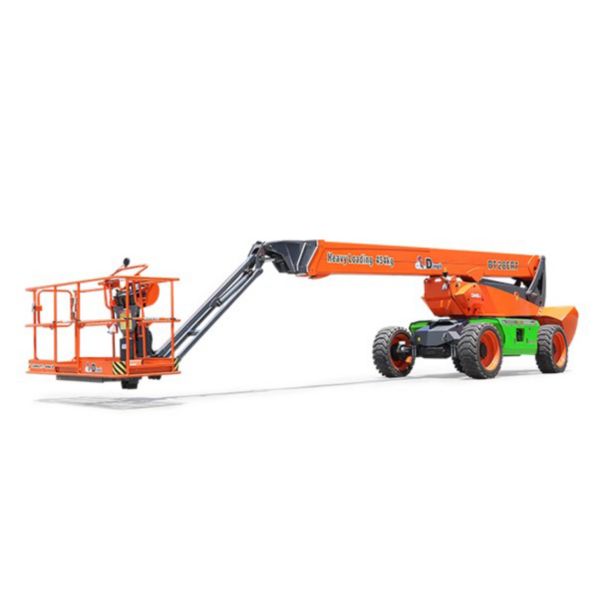

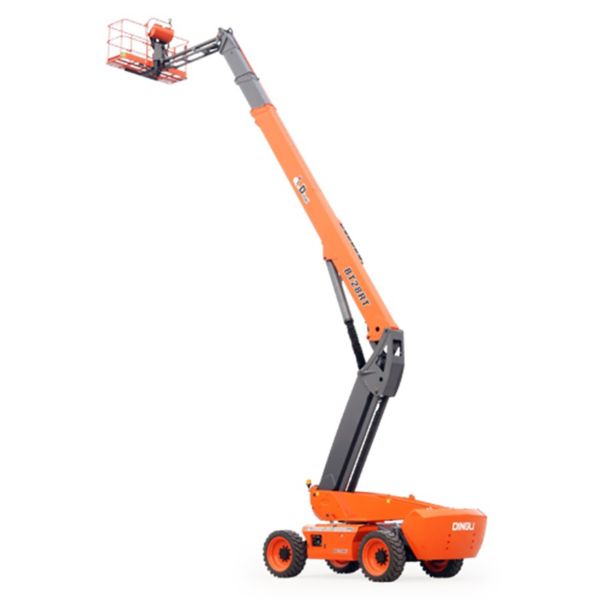

Dingli BT28RT 85' Diesel Articulating Boom Stage V
The Dingli BT28RT is a robust and versatile self-propelled boom lift, perfect for reaching heights safely and efficiently. Its compact design allows for easy navigation in tight spaces, making it ideal for construction and maintenance tasks. Experience reliability and performance with the BT28RT, engineered for optimal productivity on any job site.
Item ID: 50000143
Reference: 079328
Basic Dimensions
Length (m)11.82
Width (m)2.5
Height (m)2.59
Weight (kg)18400
Environmental & Sustainability
Average Usage Emissions Per Operating Hour (ERA)19.2
Average Consumption Per Operating Hour (ERA)6.1
Average Engine Operating Hours Over A Rental Day (ERA)2.5
Engine Stage/TierStageV
Average Usage Emissions Per Operating Hour (ERA)19.2
Average Consumption Per Operating Hour (ERA)6.1
Average Engine Operating Hours Over A Rental Day (ERA)2.5
Convenience Features
All Motion AlarmYes
Articulating JibYes
4WDYes
Descent & Travel AlarmYes
Features
- Front Oscillating Axle
- Two-Wheel Steering
- Thumb Rocker Steer
- Drive Enable
- Ac Power Cord To Platform
- Hour Meter
- Integral Integrated Special Drive Axle
- Fault Diagnosis System
- Operator Anti-crushing Protection System
- Harsh Environment Kits
- Hydraulic Oil Radiator
- Anti-restart Engine Protection
- Anti-reverse Engine Device
- Auto Engine Fault Shutdown
Platform Load Sense SystemYes
Proportional ControlsYes
Self Levelling PlatformYes
Power Source
Power Source / Fuel TypeDiesel
EngineDeutz D2.9 L4 55.4kW 2600rpm Diesel Engine
Voltage (V)12
Engine MakeDeutz
Engine ModelTD29L4
Safety Information
Flashing BeaconYes
Harness RingsYes
HornYes
Tilt AlarmYes
Technical Dimensions
Area - Platform (m²)2.22
Ground Clearance (m)0.41
Height - Elevated Platform (m)26.6
Height - Stowed (m)2.89
Height - Vertical Platform (max) (m)21.9
Height - Working (m)28.6
Length - Platform (m)2.44
Length - Stowed (m)11.66
Outreach - Horizontal (m)21.3
Outreach - Working (m)21.3
Size - Tyre385/45-28
Tail Swing (m)1.61
Turning Radius - Inside (m)1.87
Turning Radius - Outside (m)3.22
Wheelbase (m)2.8
Width - Platform (m)0.91
Technical Specifications
Capacity - Fuel Tank (L)135
Capacity - Hydraulic Tank (L)165
Capacity - Platform (kg)454
Gradeability (%)45
Load - Safe Working (kg)454
No. of Persons (Max)3
Range - Articulated Jib (°)360
Rotation - Horizontal Jib (°)135
Rotation - Hydraulic Platform (°)180
Rotation - Jib (°)135
Speed - Drive (Elevated) (mph)0.7
Speed - Drive (Lowered) (mph)3.7
Speed - Wind (max) (mph)28
Tyre TypeRough Terrain
