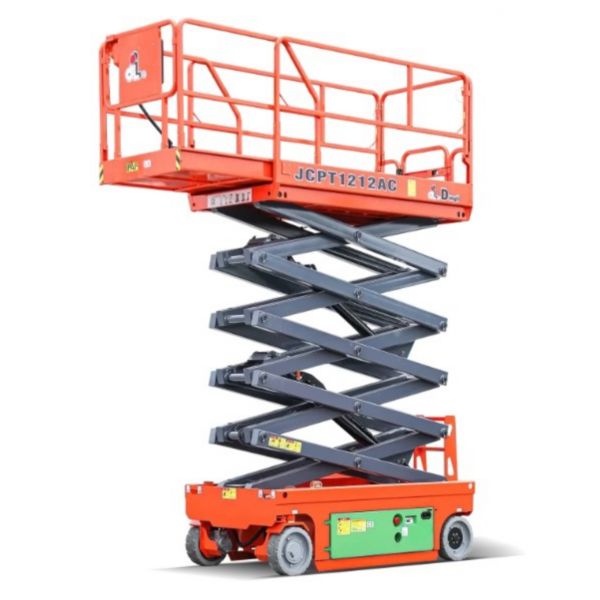

Dingli JCPT1212AC 32' Electric Scissor Lift Earth Bonded
The Dingli JCPT1212AC is a compact and reliable lift, ideal for construction sites requiring efficient vertical access. With its robust design and user-friendly controls, it ensures safety and productivity. Perfect for various applications, this model combines performance with ease of use.
Item ID: 50000033
Reference: 075301
Basic Dimensions
Length (m)2.48
Width (m)1.15
Height (m)2.49
Weight (kg)3060
Environmental & Sustainability
Sound Power (dB)70
Convenience Features
All Motion AlarmYes
Non Marking TyresYes
Power To CageNo
Proportional ControlsYes
All-Wheel SteeringNo
Extended PlatformYes
Fold Down Hinged Railing SystemYes
Self Locking GateYes
OutriggersNo
Dual Flow HydraulicsNo
HourmeterYes
Lifting Check ValvesYes
Manual DescentYes
Oscillating Axle ChassisNo
Proportional Direct DC Electric DriveNo
Proportional Lift UpYes
Quad Holding BrakesNo
Single Pump HydraulicsYes
Slide-Out Engine TrayNo
Tilt SensorYes
Power Source
Power Source / Fuel TypeBatteryElectric
Battery (V/Ah)4x 6V / 200Ah
Voltage (V)24
Safety Information
Flashing BeaconYes
Harness RingsYes
HornYes
Tilt AlarmYes
Vibration Level (m/s2)2.5
Dual Holding BrakesYes
Emergency Stop ButtonYes
Overload Sensing SystemYes
Technical Dimensions
Area - Platform (m²)2.5424
Ground Clearance (m)0.10
Ground Clearance - Stowed (mm)100
Height - Drive (m)14.02
Height - Guardrail (m)2.49
Height - Stowed (m)2.49

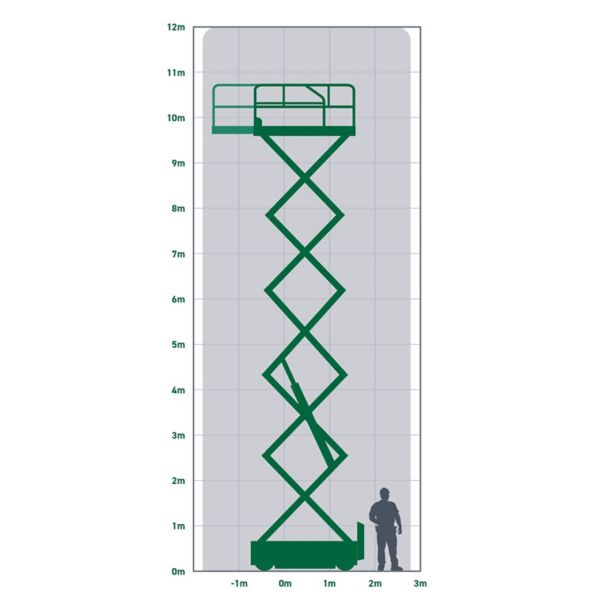

Height - Working (m)12
Length - Platform (m)2.27
Outreach - Horizontal (m)0.0
Size - Tyre381 x 127
Turning Radius - Inside (m)0
Turning Radius - Outside (m)2.2
Wheelbase (m)1.87
Width - Platform (m)1.12
Height - Hand Rails Down (m)1.96
Height - Platform (m)9.75
Height - Working (max) (m)12
Deck Extension (m)0.9
Technical Specifications
Capacity - Hydraulic Tank (L)20
Gradeability (%)25
Load - Safe Working (kg)320
No. of Lifting Eyes2.49
No. of Persons (Max)2
Slope (Max) (%)25
Speed - Drive (Elevated) (mph)0.5
Speed - Drive (Lowered) (mph)2.17
Speed - Drive (Raised) (mph)0.5
Speed - Drive (Stowed) (mph)3.1
Speed - Falling (Loaded) (s)45
Speed - Rising (Loaded) (s)54
Speed - Wind (max) (mph)28
Tyre TypeSolid, Non‑Marking
Charger Type24 V / 30 A (On‑board charger)
Drive Type4×2 Drive
Hydraulic SystemHydraulic (electric motor‑driven)
Capacity - Distributed (Extension Deck) (kg)113
Capacity - Distributed (Main Platform) (kg)320
Capacity - Total (kg)320
Weight - Total Aerial Platform (max) (kg)3060
