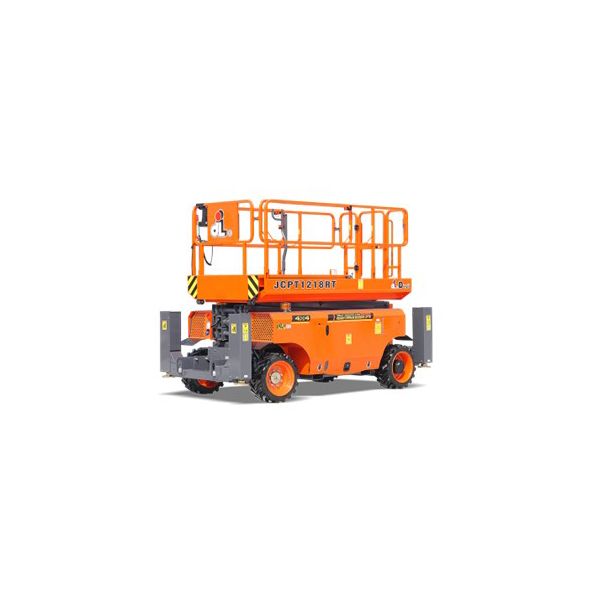

Dingli JCPT1218RT 32' Diesel Scissor Lift Stage V
The Dingli JCPT1218RT is a robust and versatile scissor lift, ideal for construction projects requiring elevation. With impressive total dimensions, it offers stability and manoeuvrability in tight spaces. Perfect for both indoor and outdoor applications, this lift ensures safety and efficiency on site.
Item ID: 50000061
Reference: 078004
Basic Dimensions
Length (m)3.19-3.84
Width (m)1.76
Height (m)2.59
Weight (kg)3900-4300
Environmental & Sustainability
Sound Power (dB)80
Average Usage Emissions Per Operating Hour (ERA)7.7
Average Consumption Per Operating Hour (ERA)2.5
Average Engine Operating Hours Over A Rental Day (ERA)1.6
Engine Stage/TierStageV
Convenience Features
All Motion AlarmYes
Non Marking TyresYes
Power To CageYes
Proportional ControlsYes
All-Wheel SteeringNo
Extended PlatformYes
Fold Down Hinged Railing SystemYes
Self Locking GateYes
OutriggersYes
Dual Flow HydraulicsNo
HourmeterYes
Lifting Check ValvesYes
Manual DescentYes
Oscillating Axle ChassisYes
Proportional Direct DC Electric DriveNo
Proportional Lift UpYes
Quad Holding BrakesNo
Single Pump HydraulicsYes
Slide-Out Engine TrayYes
Tilt SensorYes
Power Source
Power Source / Fuel TypeDiesel
EngineKubota D1105 18.6kW/2400rpm Diesel Engine
Engine - Stage 5Yes
Engine MakeKubota
Engine ModelD1105
Safety Information
Flashing BeaconYes
Harness RingsYes
HornYes
Tilt AlarmYes
Dual Holding BrakesNo
Emergency Stop ButtonYes
Overload Sensing SystemYes
Technical Dimensions
Area - Platform (m²)4.3776
Ground Clearance (m)0.24
Ground Clearance - Stowed (mm)240
Height - Drive (m)10
Height - Guardrail (m)0.70
Height - Working (m)12
Length - Platform (m)2.88
Outreach - Horizontal (m)1.43
Size - Tyre305 / 26 × 12‑16.5
Turning Radius - Inside (m)2.15
Turning Radius - Outside (m)4.85
Wheelbase (m)2.29
Width - Platform (m)1.52
Height - Hand Rails Down (m)1.82
Height - Platform (m)10
Height - Working (max) (m)12
Deck Extension (m)1.43
Technical Specifications
Capacity - Fuel Tank (L)47
Capacity - Hydraulic Tank (L)71
Gradeability (%)40
Load - Safe Working (kg)454
No. of Lifting Eyes4
No. of Persons (Max)4
Pressure - Per Tyre Contact (psi/kPa)945.5 kPa
Slope (Max) (%)40
Speed - Drive (Elevated) (mph)0.28
Speed - Drive (Lowered) (mph)3.1
Speed - Drive (Raised) (mph)0.28
Speed - Drive (Stowed) (mph)3.1
Speed - Falling (Loaded) (s)46
Speed - Rising (Loaded) (s)38
Speed - Wind (max) (mph)28
Tyre TypeFoam‑filled solid tyres
Drive Type4 wheel drive
Output - Power18.6kW (24.9hp)
Hydraulic SystemHydraulic lift cylinders (diesel‑powered), Hydraulic wheel motors
Capacity - Distributed (Extension Deck) (kg)136
Capacity - Distributed (Main Platform) (kg)318
Capacity - Total (kg)454
Weight - Total Aerial Platform (max) (kg)4300
