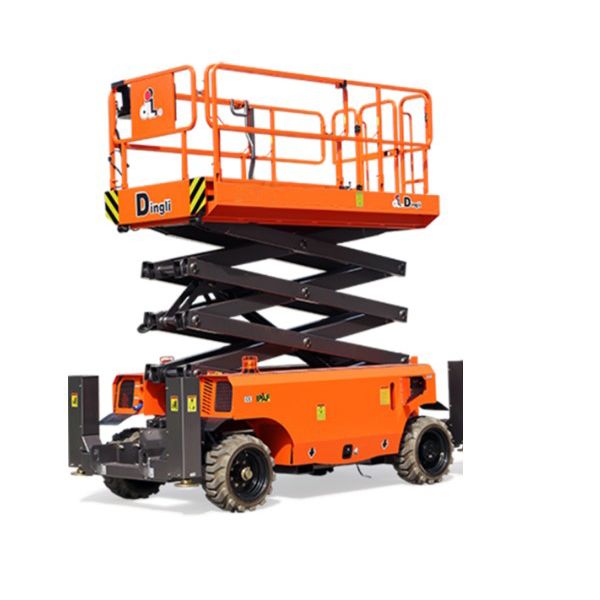

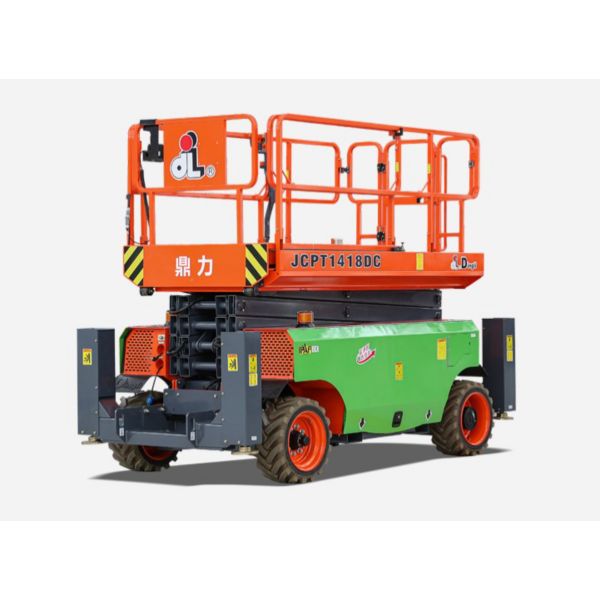

Dingli JCPT1418DC 40' Electric Scissor Lift RT
The Dingli JCPT1418DC is a versatile and robust scissor lift, ideal for various construction tasks. With a compact design, it offers exceptional manoeuvrability and stability, ensuring safety and efficiency on site. Perfect for both indoor and outdoor applications.
Item ID: 50000042
Reference: 075013
Basic Dimensions
Length (m)3.84
Width (m)1.76
Height (m)2.74
Weight (kg)5050
Environmental & Sustainability
Sound Power (dB)70
Convenience Features
All Motion AlarmYes
Non Marking TyresYes
Power To CageYes
Proportional ControlsYes
All-Wheel SteeringNo
Extended PlatformYes
Fold Down Hinged Railing SystemYes
Self Locking GateYes
OutriggersYes
Dual Flow HydraulicsNo
HourmeterYes
Lifting Check ValvesYes
Manual DescentYes
Oscillating Axle ChassisYes
Proportional Direct DC Electric DriveYes
Proportional Lift UpYes
Quad Holding BrakesNo
Single Pump HydraulicsYes
Slide-Out Engine TrayNo
Tilt SensorYes
Power Source
Power Source / Fuel TypeBatteryElectric
Battery (V/Ah)48V / 320Ah
Voltage (V)48
Safety Information
Flashing BeaconYes
Harness RingsYes
HornYes
Tilt AlarmYes
Dual Holding BrakesYes
Emergency Stop ButtonYes
Overload Sensing SystemYes
Technical Dimensions
Area - Platform (m²)4.3776
Ground Clearance (m)0.024
Ground Clearance - Stowed (mm)2.4
Height - Drive (m)12.19
Height - Guardrail (m)2.74
Height - Stowed (m)2.74

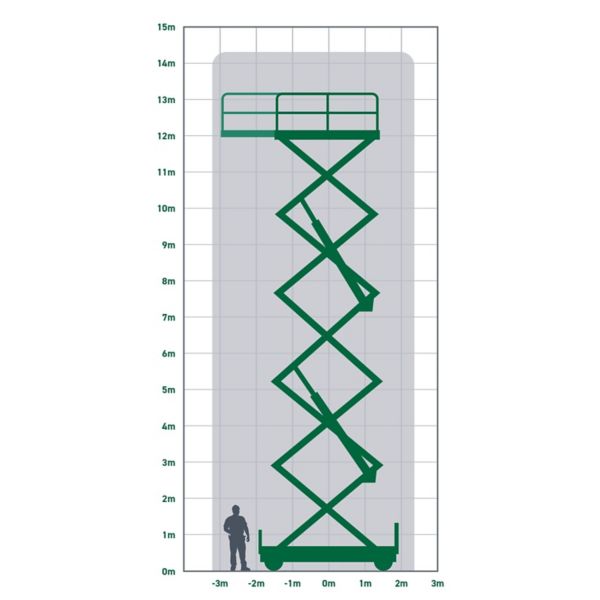

Height - Working (m)14.3
Length - Platform (m)2.88
Size - Tyre26 x 12 - 16.5
Turning Radius - Inside (m)2.15
Turning Radius - Outside (m)4.85
Wheelbase (m)2.29
Width - Platform (m)1.52
Height - Hand Rails Down (m)1.97
Height - Platform (m)12.19
Height - Working (max) (m)14.3
Deck Extension (m)1.43
Technical Specifications
Capacity - Hydraulic Tank (L)71
Gradeability (%)40
Load - Safe Working (kg)363
No. of Lifting Eyes4
No. of Persons (Max)3
Pressure - Per Tyre Contact (psi/kPa)1065
Slope (Max) (%)40
Speed - Drive (Elevated) (mph)0.28
Speed - Drive (Lowered) (mph)3.1
Speed - Falling (Loaded) (s)46
Speed - Rising (Loaded) (s)45
Speed - Wind (max) (mph)27.96
Tyre TypeSolid, non‑marking (foam‑filled)
Charger TypeIntegrated (on‑board) battery charger
Drive TypeElectric, 2‑Wheel Drive (2WD)
Output - Power2 × 32 VAC / 3.3kW
Hydraulic SystemElectro‑hydraulic (electric‑powered hydraulic system)
Capacity - Distributed (Extension Deck) (kg)136
Capacity - Distributed (Main Platform) (kg)363
Capacity - Total (kg)363
Weight - Total Aerial Platform (max) (kg)5150
