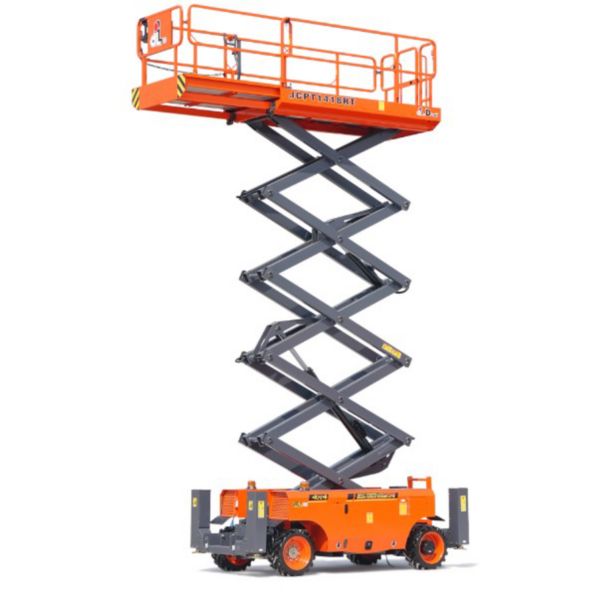

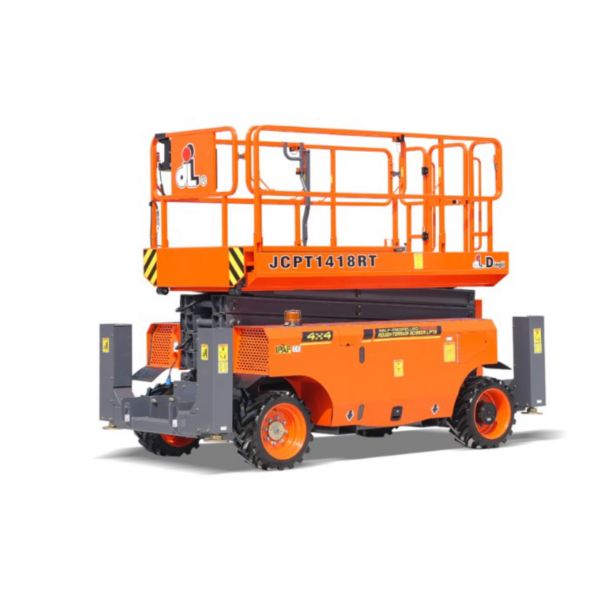

Dingli JCPT1418RT 40' Diesel Scissor Lift Stage V
The Dingli 1418RT is a robust and versatile rough terrain scissor lift, designed for optimal performance on construction sites. With excellent manoeuvrability and a compact design, it provides a safe and efficient platform for various tasks. Ideal for outdoor projects, it ensures reliability in challenging environments.
Item ID: 50000083
Reference: 078006
Basic Dimensions
Length (m)3.19-3.84
Width (m)1.76
Height (m)2.74
Weight (kg)5050
Environmental & Sustainability
Sound Power (dB)80
Average Usage Emissions Per Operating Hour (ERA)9.7
Average Consumption Per Operating Hour (ERA)3.1
Average Engine Operating Hours Over A Rental Day (ERA)2.1
Engine Stage/TierStageV
Convenience Features
All Motion AlarmYes
Non Marking TyresYes
Extended PlatformYes
OutriggersYes
Slide-Out Engine TrayYes
Power Source
Power Source / Fuel TypeDiesel
EngineDiesel Kubota V2403-M-DI 18.6kW/2400rpm
Engine MakeKubota
Engine ModelV2403MDI
Safety Information
Harness RingsYes
HornYes
Tilt AlarmYes
Emergency Stop ButtonYes
Technical Dimensions
Area - Platform (m²)4.3776
Ground Clearance (m)0.24
Ground Clearance - Stowed (mm)240
Height - Drive (m)12.192
Height - Guardrail (m)1.1
Height - Stowed (m)2.74

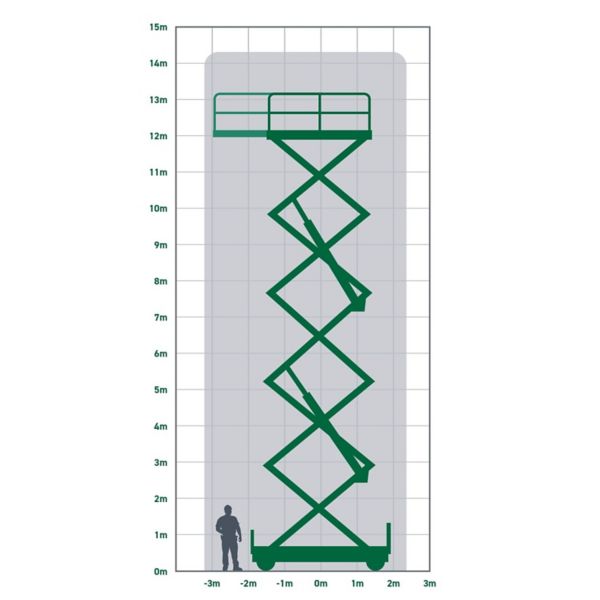

Height - Working (m)14.3
Length - Platform (m)2.88
Size - Tyre26 x 12 - 16.5
Turning Radius - Inside (m)2.15
Turning Radius - Outside (m)4.85
Wheelbase (m)2.29
Width - Platform (m)1.52
Height - Hand Rails Down (m)1.97
Height - Platform (m)12.192
Height - Working (max) (m)14.3
Deck Extension (m)1.43
Technical Specifications
Capacity - Fuel Tank (L)47
Capacity - Hydraulic Tank (L)71
Gradeability (%)40
Load - Safe Working (kg)363
Load - Wheel (max) (kg)2210
No. of Lifting Eyes4
No. of Persons (Max)3
Pressure - Per Tyre Contact (psi/kPa)945.5
Slope (Max) (%)40
Speed - Drive (Elevated) (mph)0.28
Speed - Drive (Lowered) (mph)3.1
Speed - Falling (Loaded) (s)46
Speed - Rising (Loaded) (s)45
Speed - Wind (max) (mph)28
Tyre TypeFoam Filled
Drive Type4WD
Output - Power18.6kW (24.9hp)
Capacity - Distributed (Extension Deck) (kg)136
Capacity - Total (kg)363
