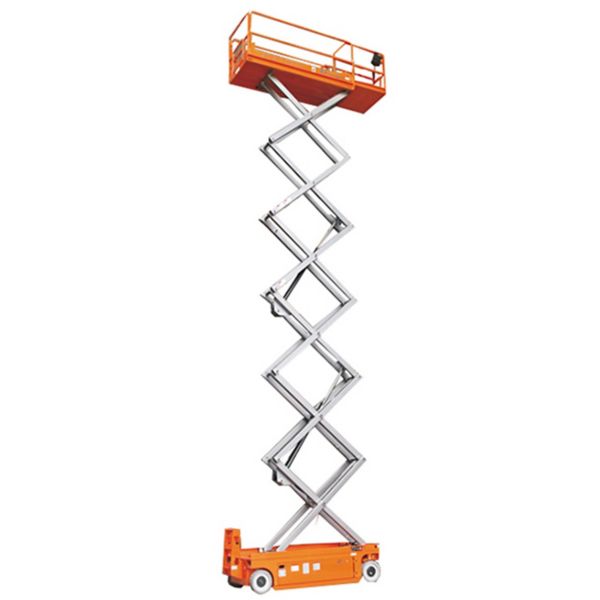

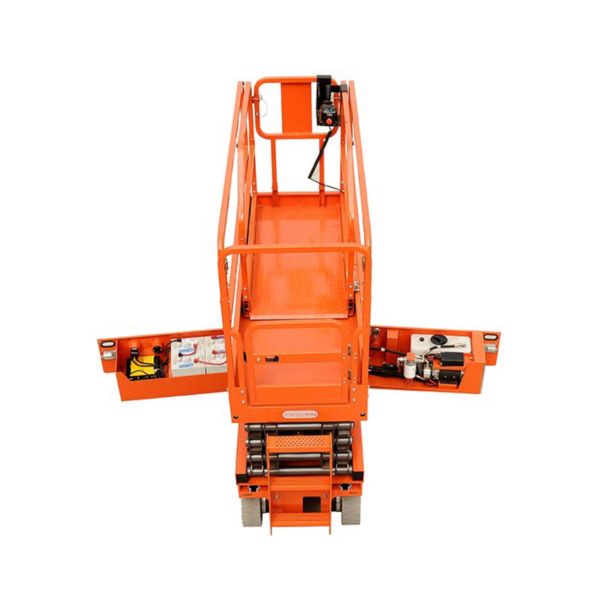

Dingli JCPT1612DC 46' Electric Scissor Lift
The Dingli JCPT1612DC is a robust electric scissor lift, designed for safe and efficient working at height. With compact dimensions, it offers excellent manoeuvrability on construction sites, making it ideal for both indoor and outdoor applications. Enhance your productivity with this reliable access solution.
Item ID: 50000049
Reference: 075345
Basic Dimensions
Length (m)2.84
Width (m)1.25
Height (m)2.59
Weight (kg)3180
Environmental & Sustainability
Sound Power (dB)70
Convenience Features
All Motion AlarmYes
Non Marking TyresYes
Power To CageNo
Proportional ControlsYes
All-Wheel SteeringNo
Extended PlatformYes
Fold Down Hinged Railing SystemYes
Self Locking GateYes
OutriggersNo
Dual Flow HydraulicsNo
HourmeterYes
Lifting Check ValvesYes
Manual DescentYes
Oscillating Axle ChassisNo
Proportional Direct DC Electric DriveYes
Proportional Lift UpYes
Quad Holding BrakesNo
Single Pump HydraulicsYes
Slide-Out Engine TrayNo
Tilt SensorYes
Power Source
Power Source / Fuel TypeElectric
Battery (V/Ah)4x 12V / 300Ah
Voltage (V)24
Safety Information
Flashing BeaconYes
HornYes
Tilt AlarmYes
Dual Holding BrakesYes
Emergency Stop ButtonYes
Overload Sensing SystemNo
Technical Dimensions
Area - Platform (m²)2.9568
Ground Clearance (m)0.019
Ground Clearance - Stowed (mm)0.19
Height - Drive (m)13.7
Height - Guardrail (m)2.59
Height - Stowed (m)2.59

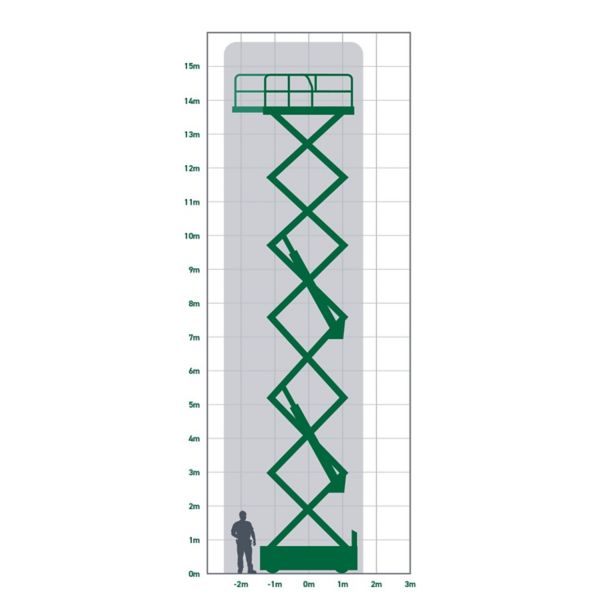

Height - Working (m)15.7
Length - Platform (m)2.64
Outreach - Horizontal (m)0.0
Size - Tyre381 x 127
Turning Radius - Inside (m)0
Turning Radius - Outside (m)2.65
Wheelbase (m)2.22
Width - Platform (m)1.12
Height - Hand Rails Down (m)2.05
Height - Platform (m)14.02
Height - Working (max) (m)15.7
Deck Extension (m)0.9
Technical Specifications
Capacity - Hydraulic Tank (L)20
Gradeability (%)25
Load - Safe Working (kg)200
No. of Lifting Eyes4
No. of Persons (Max)2
Slope (Max) (%)25
Speed - Drive (Elevated) (mph)0.5
Speed - Drive (Lowered) (mph)2.5
Speed - Falling (Loaded) (s)60
Speed - Rising (Loaded) (s)88
Speed - Wind (max) (mph)28
Tyre TypeSolid Non Marking
Charger TypeIntegrated 24V / 25A
Drive Type2WD (Electric Drive)
Output - Power24V 1.5kW
Capacity - Distributed (Extension Deck) (kg)113
Capacity - Distributed (Main Platform) (kg)250
Capacity - Total (kg)250
Weight - Total Aerial Platform (max) (kg)3180
