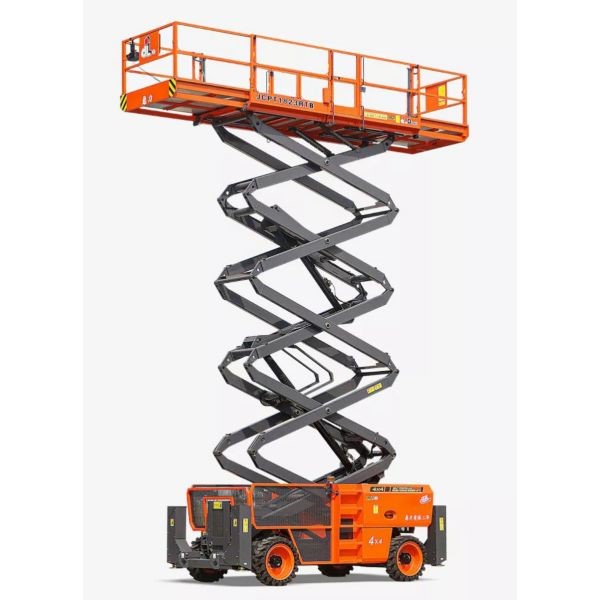

Dingli JCPT1823RT 53' Diesel Scissor Lift Stage V
The Dingli JCPT1823RT is a robust and versatile electric scissor lift, designed for efficient indoor and outdoor use. With its compact dimensions, it ensures easy manoeuvrability in tight spaces while providing a reliable working platform for various construction tasks. Ideal for maintenance and installation jobs.
Item ID: 50000070
Reference: 078007
Basic Dimensions
Length (m)4.88
Width (m)2.27
Height (m)2.49
Weight (kg)9190 - 9520
Environmental & Sustainability
Sound Power (dB)80
Average Usage Emissions Per Operating Hour (ERA)9.7
Average Consumption Per Operating Hour (ERA)3.1
Average Engine Operating Hours Over A Rental Day (ERA)2.1
Engine Stage/TierStageV
Convenience Features
All Motion AlarmYes
Non Marking TyresYes
Power To CageYes
Proportional ControlsYes
All-Wheel SteeringYes
Extended PlatformYes
Fold Down Hinged Railing SystemYes
Self Locking GateYes
OutriggersYes
Dual Flow HydraulicsNo
HourmeterYes
Lifting Check ValvesYes
Manual DescentYes
Oscillating Axle ChassisYes
Proportional Direct DC Electric DriveNo
Proportional Lift UpYes
Quad Holding BrakesNo
Single Pump HydraulicsYes
Slide-Out Engine TrayYes
Tilt SensorYes
Power Source
Power Source / Fuel TypeDiesel
Battery (V/Ah)48V
EngineKubota D1105 V2403-M-DI 36.5kW/2600rpm Diesel / Hydraulic 375AH
Engine - Stage 5Yes
Voltage (V)48
Engine MakeKubota
Engine ModelV2403MDI
Safety Information
Flashing BeaconYes
Harness RingsYes
HornYes
Tilt AlarmYes
Dual Holding BrakesYes
Emergency Stop ButtonYes
Overload Sensing SystemYes
Technical Dimensions
Area - Platform (m²)7.2834
Ground Clearance (m)0.30
Ground Clearance - Stowed (mm)300
Height - Drive (m)16
Height - Guardrail (m)3.23
Height - Stowed (m)3.19

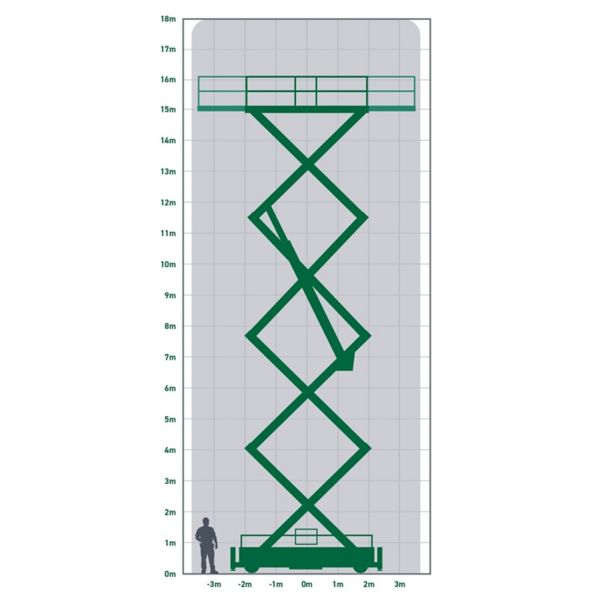

Height - Working (m)18
Length - Platform (m)3.98
Size - Tyre315
Turning Radius - Inside (m)2.35
Turning Radius - Outside (m)5.2
Wheelbase (m)2.86
Width - Platform (m)1.83
Height - Hand Rails Down (m)2.49
Height - Platform (m)16
Height - Working (max) (m)18
Technical Specifications
Capacity - Fuel Tank (L)100
Capacity - Hydraulic Tank (L)130
Gradeability (%)40
Load - Safe Working (kg)680
No. of Lifting Eyes4
No. of Persons (Max)6
Slope (Max) (%)30
Speed - Drive (Elevated) (mph)0.68
Speed - Drive (Lowered) (mph)3.79
Speed - Falling (Loaded) (s)74
Speed - Rising (Loaded) (s)75
Speed - Wind (max) (mph)28
Tyre TypeSolid Non Marking
Drive Type4WD
Output - Power36.5kW (48.9hp)
Hydraulic SystemHydraulic oil cooler
Capacity - Total (kg)680
Weight - Total Aerial Platform (max) (kg)9190
