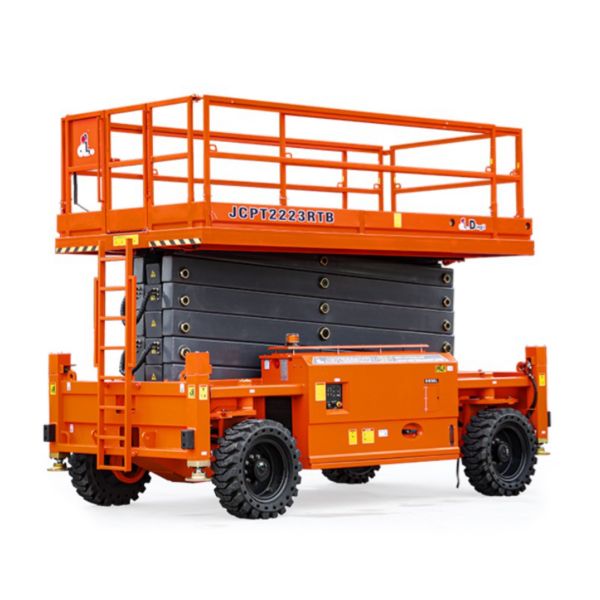

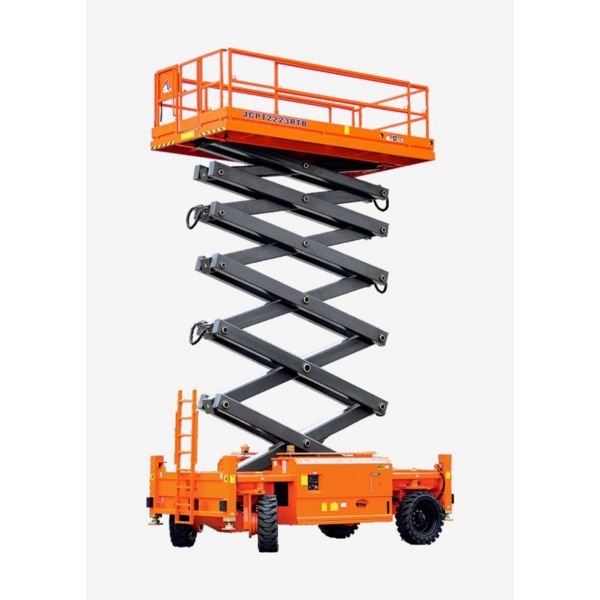

Dingli JCPT2223 RTB 72' Diesel Scissor Lift Stage V
The Dingli JCPT2223 RTB is a robust and reliable powered access platform, designed for superior performance on construction sites. Its compact dimensions ensure easy manoeuvrability in tight spaces while providing excellent reach. Ideal for various applications, this machine enhances productivity and safety.
Item ID: 50000075
Reference: 078008
Basic Dimensions
Length (m)4.95
Width (m)2.46
Height (m)3.86
Weight (kg)13000
Environmental & Sustainability
Consumption - Fuel (l/hr)Low throttle 1.7L/h at 900rpm / High throttle 10.8L/h at 2500rpm
Sound Power (dB)80
Average Usage Emissions Per Operating Hour (ERA)13.7
Average Consumption Per Operating Hour (ERA)4.3
Average Engine Operating Hours Over A Rental Day (ERA)1.9
Engine Stage/TierStageV
Convenience Features
All Motion AlarmYes
Non Marking TyresYes
Power To CageYes
Proportional ControlsYes
All-Wheel SteeringYes
Extended PlatformYes
Fold Down Hinged Railing SystemYes
Self Locking GateYes
HourmeterYes
Manual DescentYes
Proportional Lift UpYes
Tilt SensorYes
Power Source
Power Source / Fuel TypeDiesel
Battery (V/Ah)48V / 450Ah
EngineDiesel Deutz TD2.9 L4/36.4kW/2600rpm / Kubota v2403-M-DI 36.5kW/2600 rpm
Engine MakeDeutz
Engine ModelTD29L4
Safety Information
Flashing BeaconYes
Harness RingsYes
HornYes
Tilt AlarmYes
Vibration Level (m/s2)2.5
Emergency Stop ButtonYes
Overload Sensing SystemYes
Technical Dimensions
Area - Platform (m²)10.3275
Ground Clearance (m)0.40
Ground Clearance - Stowed (mm)400
Height - Closed (m)3
Height - Drive (m)20
Height - Guardrail (m)1.1
Height - Stowed (m)3.86

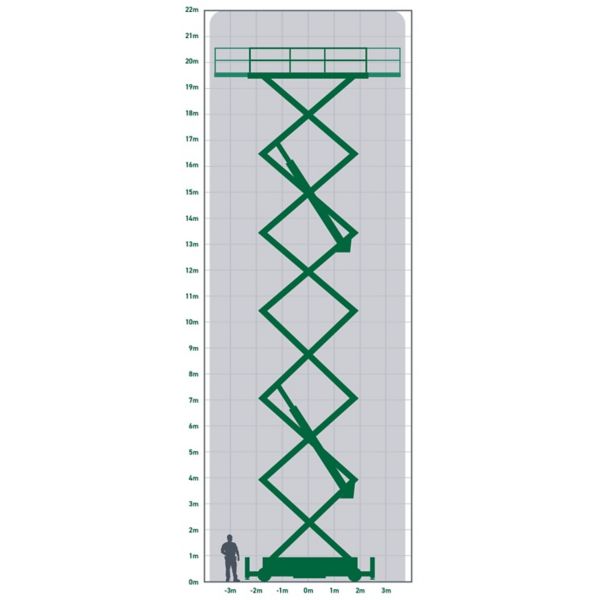

Height - Working (m)22
Length - Platform (m)4.59
Length - Stowed (m)4.49
Size - Tyre355/55D625 3
Turning Radius - Inside (m)1.25
Turning Radius - Outside (m)3.40
Wheelbase (m)3.13
Width - Platform (m)2.25
Height - Hand Rails Down (m)3
Height - Working (max) (m)22
Height - Platform Stowed (m)2.02
Technical Specifications
Capacity - Fuel Tank (L)100
Capacity - Hydraulic Tank (L)150
Gradeability (%)40
Load - Safe Working (kg)750
Load - Wheel (max) (kg)4030
No. of Lifting Eyes4
No. of Persons (Max)4
Pressure - Per Tyre Contact (psi/kPa)11.8 kPa
Speed - Drive (Elevated) (mph)0.25
Speed - Drive (Lowered) (mph)2.92
Speed - Drive (Raised) (mph)0.25
Speed - Drive (Stowed) (mph)2.92
Speed - Falling (Loaded) (s)75
Speed - Rising (Loaded) (s)75
Speed - Wind (max) (mph)28
Tyre Type355/55D625 3
Drive Type4WD
Output - Power36.4kW (48.8hp)
Hydraulic SystemHydraulic Oil Cooling System
