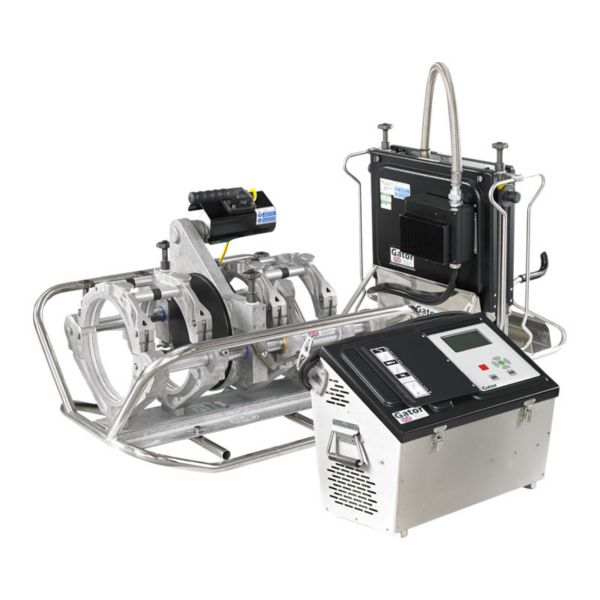

Fusion Equipment Gator 2 Automatic 250 Butt Fusion Machine (90-250mm)
The Fusion Equipment Gator 2 Automatic 250 Butt Fusion Machine offers advanced features for efficient pipe fusion, including Bluetooth connectivity, SD card backup, and precise temperature control. Designed to meet industry standards, it boasts dimensions of 950mm height and 1420mm length for optimal performance.
Item ID: 50000562
Reference: 072762
Basic Dimensions
Weight (kg)127 (133 inc. Removable Protective Cradle)
Convenience Features
Heater Plate Temperature ControlYes
Heater RetractionYes
Initial Bead Up Distance ControlYes
Machine SequencingYes
MovementYes
Peak & Dynamic Drag MeasurementYes
Pipe SlippageYes
Pipe Slippage CheckYes
PressureYes
Pressure Control at: Bead Up / Soak / Fusion / Cool TimeYes
TimeYes
Trim & Feather CycleYes
Trimmer CurrentYes
Power Source
Power Source / Fuel TypeElectric
Voltage - Input (Nominal) (V)110 or 220
Safety Information
Out of Specification Early WarningsYes
TemperatureYes
Technical Dimensions

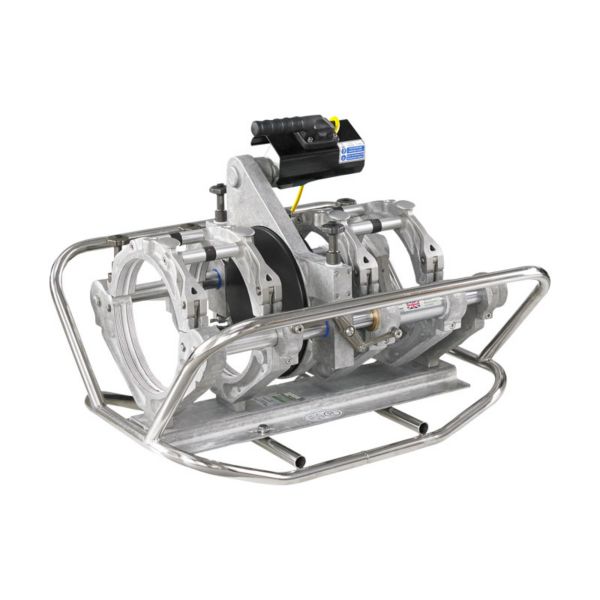

Height - Chassis (mm)430

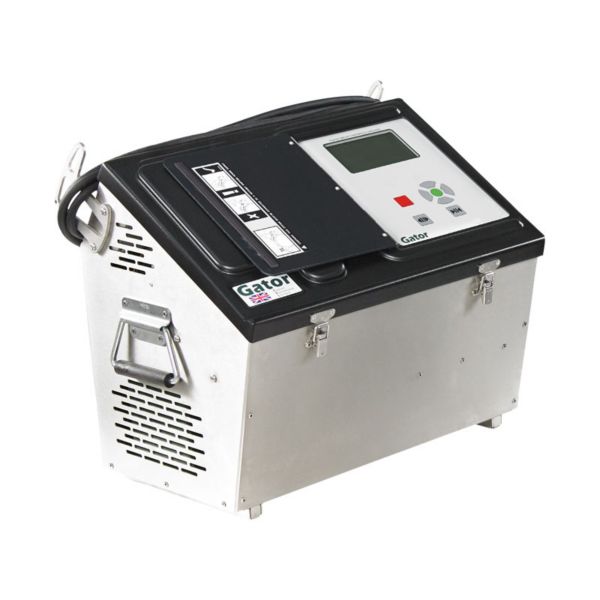

Height - Controller (mm)470

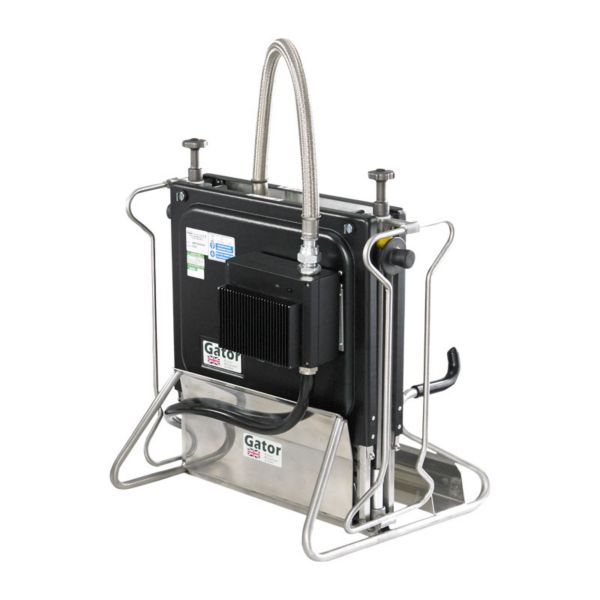

Height - Heater (mm)800
Height - Trimmer (mm)490
Length - Chassis (mm)650
Length - Controller (mm)430
Length - Heater (mm)250
Length - Trimmer (mm)270
Range - Pipe (mm)63 - 250
Width - Chassis (mm)760
Width - Controller (mm)560
Width - Heater (mm)530
Width - Trimmer (mm)450
Technical Specifications
Back Up to SD CardUp to 400,000 Records
BluetoothCalderSafe® Mobile
CalderSafe MobileUnlimited
ComplianceISO 12176-3 & ISO 12176-4
Designed & Manufactured toGas Industry Standard (GIS/PL2-3) and ISO 12176-1
Frequency (Hz)50
Oil LevelYes
Output - Generator (kVA)5
Power - Controller (kW)1.2
Power - Heater (kW)1.8
Power - Trimmer (kW)0.75
PrinterThermal paper
USB Memory DeviceText file / CalderSafe® Weld Analyser
Weight - Chassis (kg)51
Weight - Controller (kg)46
Weight - Heater (kg)21.5
Weight - Trimmer (kg)14.5
