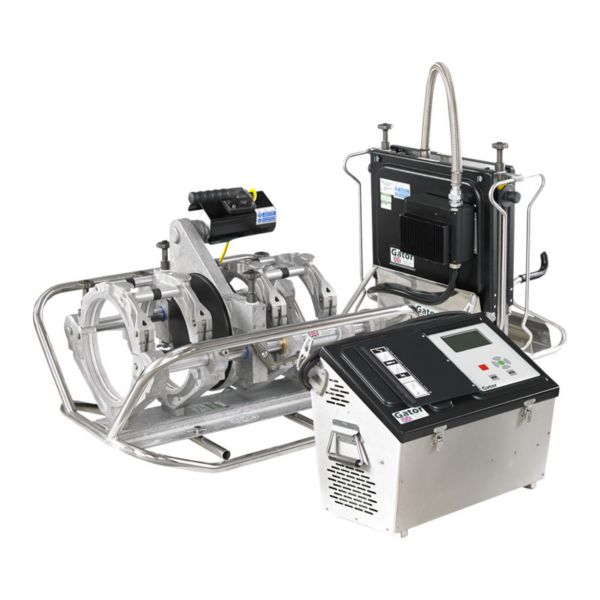

Fusion Equipment Gator 2 Automatic 315 Butt Fusion Machine (90-315mm)
The Fusion Equipment Gator 2 Automatic 315 Butt Fusion Machine is designed for efficiency, supporting up to 400,000 records on SD card and compliant with ISO standards. Ideal for the gas industry, it features precise temperature control and seamless Bluetooth connectivity.
Item ID: 50000563
Reference: 072735
Basic Dimensions
Weight (kg)156.5 (163 Inc. Removable Protective Cradle)
Convenience Features
Heater Plate Temperature ControlYes
Heater RetractionYes
Initial Bead Up Distance ControlYes
Machine SequencingYes
MovementYes
Peak & Dynamic Drag MeasurementYes
Pipe SlippageYes
Pipe Slippage CheckYes
PressureYes
Pressure Control at: Bead Up / Soak / Fusion / Cool TimeYes
TimeYes
Trim & Feather CycleYes
Trimmer CurrentYes
Power Source
Power Source / Fuel TypeElectric
Voltage - Input (Nominal) (V)110 or 220
Safety Information
Out of Specification Early WarningsYes
TemperatureYes
Technical Dimensions
Height - Chassis (mm)500
Height - Controller (mm)470
Height - Heater (mm)900
Height - Trimmer (mm)560
Length - Chassis (mm)860
Length - Controller (mm)430
Length - Heater (mm)250
Length - Trimmer (mm)270
Range - Pipe (mm)90 - 315
Width - Chassis (mm)860
Width - Controller (mm)560
Width - Heater (mm)630
Width - Trimmer (mm)550
Technical Specifications
Back Up to SD CardUp to 400,000 Records
BluetoothCalderSafe® Mobile
CalderSafe MobileUnlimited
ComplianceISO 12176-3 & ISO 12176-4
Designed & Manufactured toGas Industry Standard (GIS/PL2-3) and ISO 12176-1
Frequency (Hz)50
Oil LevelYes
Output - Generator (kVA)7.5
Power - Controller (kW)1.2
Power - Heater (kW)303
Power - Trimmer (kW)0.75
PrinterThermal Paper
USB Memory DeviceText File / CalderSafe® Weld Analyser
Weight - Chassis (kg)68.5
Weight - Controller (kg)46
Weight - Heater (kg)29.5
Weight - Trimmer (kg)19
