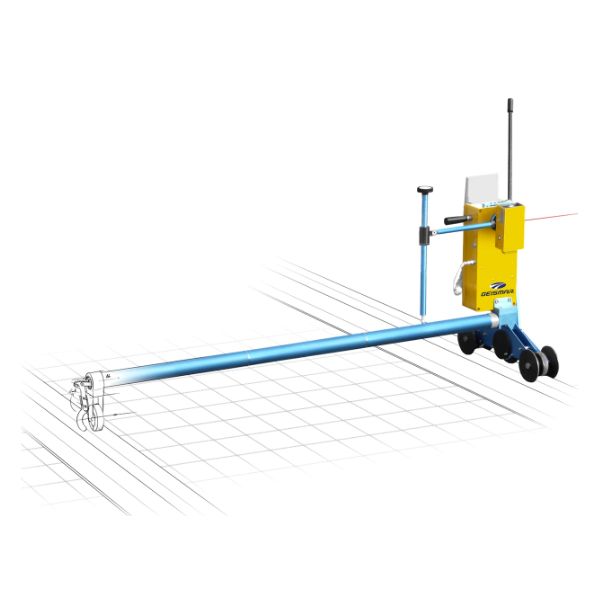

Geismar Mephisto Laser Survey Recorder
The Geismar Mephisto Laser Survey Recorder offers advanced measurement capabilities for accurate surveying in construction projects. Its user-friendly and durable design make it ideal for both professionals and DIY enthusiasts. Ensure precision and efficiency on-site with this essential surveying tool.
Item ID: 50000518
Reference: 159090
Basic Dimensions
Weight (kg)13
Depth (mm)560
Length (mm)490
Width (mm)1500
Convenience Features
Features
- Precise track positional measurement taking reference from marker posts or fixed infrastructure to calculate track line and level;
- Polyvalent measurement of structure gauge and critical points of infrastructure (bridges, tunnels, noise barrier…);
- Clear OHL position measurement (height/offset) with a swivelling laser fitted with an accurate adjuster;
- Intuitive operation controlled by the ergonomic wired remote keypad;
- Light and easily assembled elements that are stored and transported in its customized transit case.
GPS Signal / TraceabilityYes
Non-ConductiveYes
Power Source
Power Source / Fuel TypeBattery
Battery Life8 hour
Voltage (V)15
Safety Information
Temperature - Operating (°C)-5 to +50
Technical Dimensions
Range - Measuring (m)up to 10 m (33ft) with 300°angle
Technical Specifications
AccuracyMillimetric accuracy
Materials
Lightweight aluminium/steel frame
High‑precision optical/laser components
Insulated rollers for safe track contact
Options
- Module for low measurements and software;
- Software for TopoRail systems (RG files);
- Additional measurement modes (SBB, SNCF, PALAS UK).
Purpose/Made for
- Position of track (fixed point, low point)
- Track structure gauge
- Infringements to track structure gauge
- Position of reception areas (platform edges, walls)
- Bridges curvature
- OHL position
- Position of the edge of platforms
- Distance between tracks
Resolutionperformance described as millimetric.
DisplayAll measurements displayed on system screen.
Time - Charging (hrs)8 h maximum
Connectivity
Wired remote keypad
Internal system interface
Memory - DataSystem stores measurement cycles internally (300+ cycles).
Laser ClassSafe Class 2 laser.
GaugeFrom 1,000 to 1,435 mm
