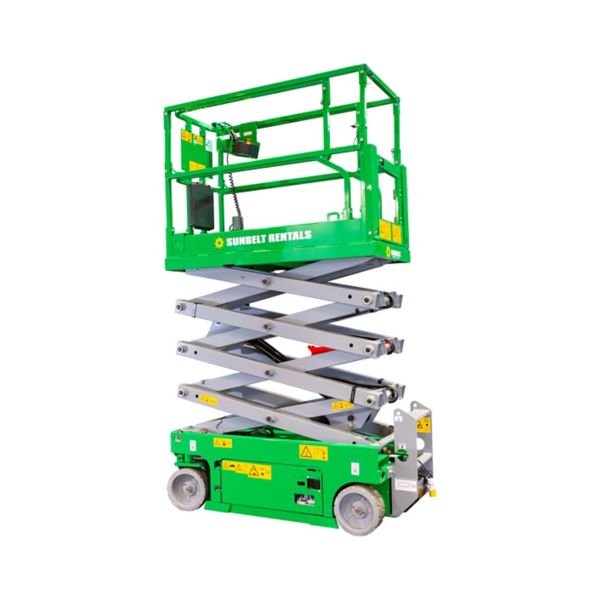

Genie GS1932 19' Electric Scissor Lift
The Genie GS1932 is a compact electric scissor lift, ideal for indoor construction projects. With an overall height of 2.8m and a working platform that extends up to 7.8m, it ensures safety and efficiency in tight spaces. Lightweight and easy to manoeuvre, it's perfect for any construction site.
Item ID: 50000007
Reference: 075220
Basic Dimensions
Length (m)1.82
Width (m)0.74
Height (m)2.11
Weight (kg)1503
Environmental & Sustainability
Sound Power (dB)70
Convenience Features
All Motion AlarmYes
Non Marking TyresYes
Power To CageYes
Proportional ControlsYes
All-Wheel SteeringNo
Extended PlatformYes
Fold Down Hinged Railing SystemYes
Self Locking GateYes
OutriggersNo
Dual Flow HydraulicsNo
HourmeterYes
Lifting Check ValvesYes
Manual DescentYes
Oscillating Axle ChassisNo
Proportional Direct DC Electric DriveYes
Proportional Lift UpYes
Quad Holding BrakesNo
Single Pump HydraulicsYes
Slide-Out Engine TrayYes
Tilt SensorYes
Power Source
Power Source / Fuel TypeBatteryElectric
Battery (V/Ah)4x 6V / 225Ah
Voltage (V)24
Amps (A)25
Safety Information
Flashing BeaconYes
Harness RingsYes
HornYes
Tilt AlarmYes
Dual Holding BrakesYes
Emergency Stop ButtonYes
Overload Sensing SystemYes

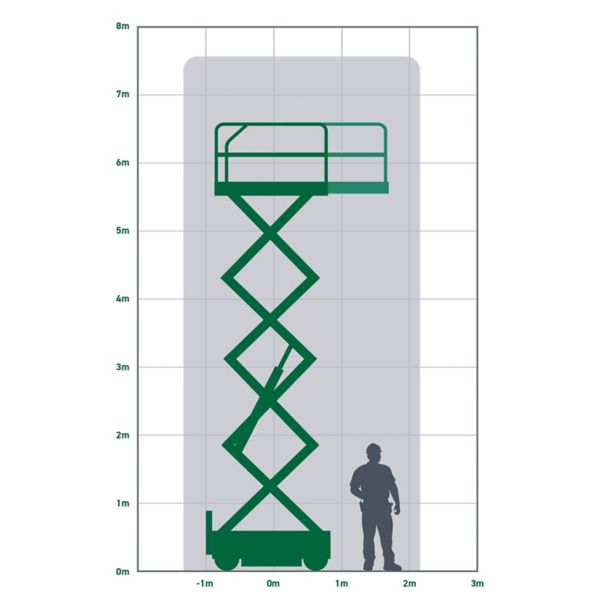

Technical Dimensions
Area - Platform (m²)1.2136
Ground Clearance (m)0.061
Ground Clearance - Stowed (mm)61
Height - Closed (m)0.81
Height - Drive (m)5.79
Height - Guardrail (m)2.03
Height - Stowed (m)2.11
Height - Working (m)7.8
Length - Platform (m)1.64
Outreach - Horizontal (m)7.65
Size - Tyre12 × 4.5 × 8
Turning Radius - Inside (m)0
Turning Radius - Outside (m)1.55
Wheelbase (m)1.32
Width - Platform (m)0.74
Height - Hand Rails Down (m)1.76
Height - Platform (m)5.79
Height - Working (max) (m)7.8
Technical Specifications
Capacity - Hydraulic Tank (L)14.2
Charging Time8–10 hours
Gradeability (%)30
Load - Safe Working (kg)227
Load - Wheel (max) (kg)582
No. of Lifting Eyes2.11
No. of Persons (Max)2
Pressure - Per Tyre Contact (psi/kPa)Solid tyres → no inflation pressure
Slope (Max) (%)3
Speed - Drive (Elevated) (mph)0.5
Speed - Drive (Lowered) (mph)2.49
Speed - Falling (Loaded) (s)23
Speed - Rising (Loaded) (s)16
Speed - Wind (max) (mph)28
Tyre TypeSolid non‑marking
Charger Type100–240V AC input / 25A output
Drive TypeFront‑wheel drive, rear‑wheel steer
Output - Power24V DC electric drive system
Hydraulic SystemSingle‑pump hydraulic lift
Capacity - Distributed (Extension Deck) (kg)113
Capacity - Distributed (Main Platform) (kg)227
Capacity - Total (kg)227
Weight - Total Aerial Platform (max) (kg)1503
