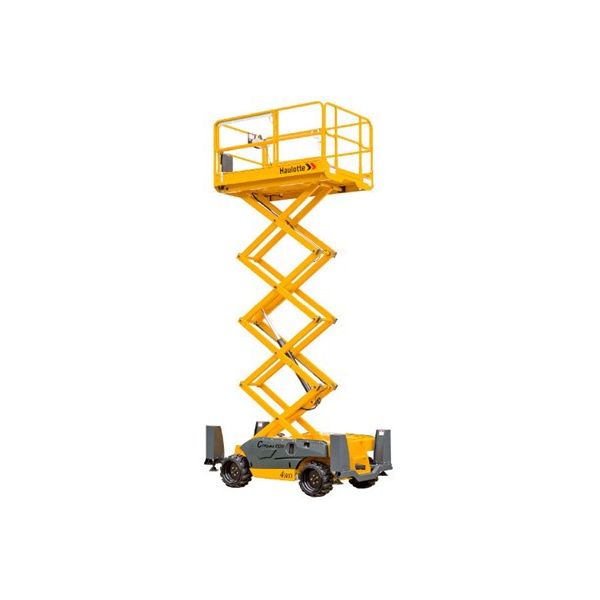

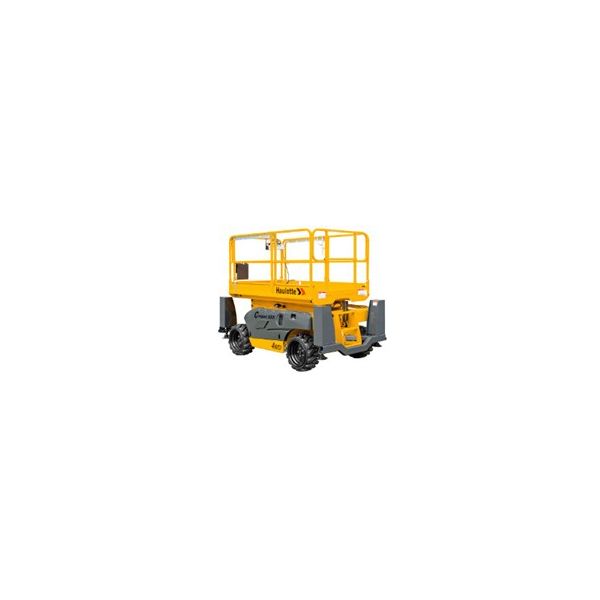

Haulotte COMPACT 12 DX RT 33' Diesel Scissor Lift
Basic Dimensions
Length (m)3.17
Width (m)1.78
Height (m)2.56
Weight (kg)4110
Environmental & Sustainability
Average Usage Emissions Per Operating Hour (ERA)7.7
Average Consumption Per Operating Hour (ERA)2.5
Average Engine Operating Hours Over A Rental Day (ERA)1.6
Engine Stage/TierStageV
Convenience Features
All Motion AlarmYes
Non Marking TyresYes
Power To CageYes
Proportional ControlsYes
All-Wheel SteeringNo
Extended PlatformYes
OutriggersYes
HourmeterYes
Manual DescentYes
Quad Holding BrakesNo
Power Source
Power Source / Fuel TypeDiesel
Battery (V/Ah)12V / 74Ah
EngineKubota 18.5 kW/24.8 hp Stage 5
Engine - Stage 5Yes
Voltage (V)12
Engine MakeKubota
Engine ModelD1105
Safety Information
Harness RingsYes
HornYes
Tilt AlarmYes
Dual Holding BrakesYes
Emergency Stop ButtonYes
Technical Dimensions
Area - Platform (m²)3.5525
Ground Clearance (m)0.28
Ground Clearance - Stowed (mm)280
Height - Drive (m)10.0584
Height - Stowed (m)2.56
Height - Working (m)12.06
Length - Platform (m)2.45
Length - Stowed (m)3.17
Size - Tyre26 x 12 - 16.5
Turning Radius - Outside (m)3.5
Wheelbase (m)1.84
Width - Platform (m)1.45
Height - Hand Rails Down (m)2.56
Height - Platform (m)10.06
Height - Platform (max) (m)10.06
Height - Working (max) (m)12.06
Deck Extension (m)1.2
Technical Specifications
Capacity - Hydraulic Tank (L)75
Gradeability (%)40
Load - Safe Working (kg)450
No. of Lifting Eyes4
Speed - Drive (Elevated) (mph)0.5
Speed - Drive (Lowered) (mph)3.4
Speed - Drive (Raised) (mph)0.5
Speed - Drive (Stowed) (mph)3.4
Speed - Falling (Loaded) (s)51
Speed - Rising (Loaded) (s)35
Speed - Wind (max) (mph)28
Tyre TypeFoam Filled
Drive Type4 wheel drive, 2 wheel steer
Output - Power18.5kW (24.8hp)
Capacity - Total (kg)450
