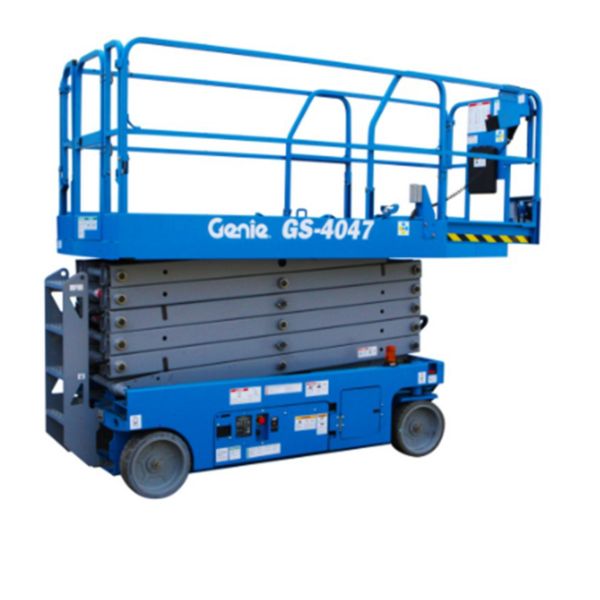

Genie GS4047 40' Electric Scissor Lift
The Genie GS4047 is a robust and versatile electric scissor lift, ideal for construction projects requiring elevated access. With compact dimensions and exceptional stability, it ensures efficiency and safety on site. Perfect for both indoor and outdoor use.
Item ID: 50000039
Reference: 075330
Basic Dimensions
Length (m)2.48
Width (m)1.19
Height (m)2.54
Weight (kg)3221
Environmental & Sustainability
Sound Power (dB)70
Convenience Features
All Motion AlarmYes
Non Marking TyresYes
Proportional ControlsYes
All-Wheel SteeringNo
Extended PlatformYes
Fold Down Hinged Railing SystemYes
OutriggersNo
HourmeterYes
Manual DescentYes
Proportional Direct DC Electric DriveYes
Proportional Lift UpYes
Slide-Out Engine TrayNo
Tilt SensorYes
Power Source
Power Source / Fuel TypeElectric
Battery (V/Ah)4x 24V / 300Ah
Voltage (V)24
Safety Information
Flashing BeaconYes
Harness RingsYes
HornYes
Tilt AlarmYes
Vibration Level (m/s2)2.5
Emergency Stop ButtonYes
Overload Sensing SystemYes
Technical Dimensions
Area - Platform (m²)2.6216
Ground Clearance (m)0.019
Ground Clearance - Stowed (mm)19

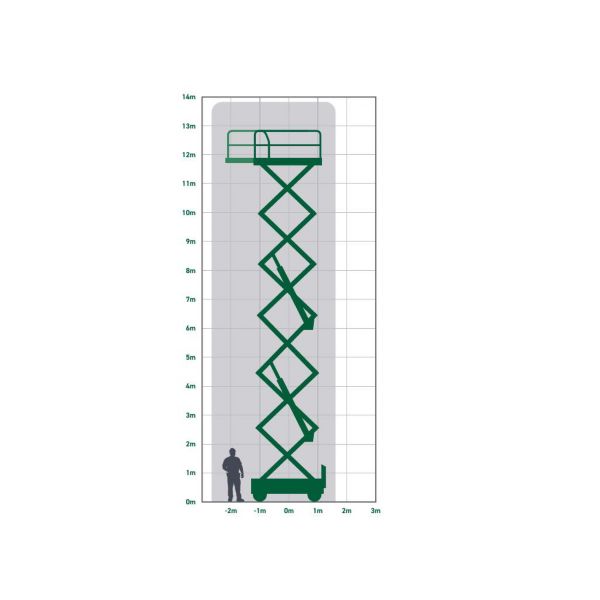

Height - Drive (m)12.19
Height - Guardrail (m)1.10
Height - Stowed (m)2.54
Height - Working (m)13.7
Length - Platform (m)2.26
Size - Tyre38 × 13 × 28 cm
Turning Radius - Inside (m)0
Turning Radius - Outside (m)2.3
Wheelbase (m)1.85
Width - Platform (m)1.16
Height - Hand Rails Down (m)1.95
Height - Platform (m)12.19
Height - Working (max) (m)13.7
Deck Extension (m)0.91
Technical Specifications
Capacity - Hydraulic Tank (L)28.4
Gradeability (%)25
Load - Safe Working (kg)350
Load - Wheel (max) (kg)1289
No. of Lifting Eyes2.54
No. of Persons (Max)3
Slope (Max) (%)25
Speed - Drive (Elevated) (mph)0.5
Speed - Drive (Lowered) (mph)2
Speed - Falling (Loaded) (s)41
Speed - Rising (Loaded) (s)71
Speed - Wind (max) (mph)0
Tyre TypeSolid Non-marking
Charger TypeUniversal 20 amp smart charger
Drive TypeDual front wheel drive
Hydraulic System28.4 L
Capacity - Distributed (Extension Deck) (kg)113
Capacity - Distributed (Main Platform) (kg)350
Capacity - Total (kg)350
Weight - Total Aerial Platform (max) (kg)3221
