JLG 860SJ 85' Diesel Telescopic Boom Lift
The JLG 860SJ is a robust and versatile self-propelled boom lift, designed for exceptional manoeuvrability and durable performance. Ideal for construction and maintenance tasks, this reliable piece of equipment will enhance your project efficiency.
Item ID: 50000169
Reference: 079214
Basic Dimensions
Length (m)12.19
Width (m)2.49
Weight (kg)17200
Environmental & Sustainability
Consumption - Fuel (l/hr)Light Usage 25% - 49% - 4.80 T4i/ 5.49 T4F / Average Usage 50% - 74% - 9.71 T4i/ 12.08 T4F / Heavy Usage 75% - 100% - 13.98 T4i/ 16.01T4F
Average Usage Emissions Per Operating Hour (ERA)19.2
Average Consumption Per Operating Hour (ERA)6.1
Average Engine Operating Hours Over A Rental Day (ERA)2.5
Convenience Features
All Motion AlarmYes
Articulating JibYes
4WDYes
Tow Bar AssemblyYes
Power Source
Power Source / Fuel TypeDiesel
EngineDeutz stage IVi, TD2.9 L4 W (68HP, 50Kw) (Dual Fuel: GM Vortec 3000 MPFI 61 kW 82 hp)
Engine MakeDeutz
Engine ModelTD29L4
Safety Information
Flashing BeaconYes
Harness RingsYes

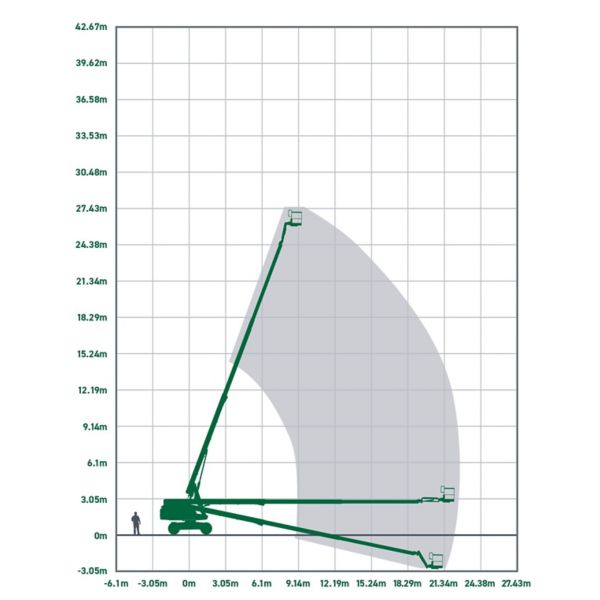

Technical Dimensions
Ground Clearance (m)0.28
Height - Guardrail (m)1.1
Height - Lowered Platform (m)3.02
Height - Stowed (m)3.05
Height - Working (m)28.21
Length - Platform (m)0.92
Length - Stowed (m)12.2
Outreach - Horizontal (m)22.86
Outreach - Working (m)23.51
Tail Swing (m)1.42
Turning Radius - Inside (m)3.8
Turning Radius - Outside (m)6.02
Wheelbase (m)3.06
Width - Platform (m)2.49
Length - Articulated Jib (m)1.83
Reach (max) (m)21.64
Width - Working (m)2.49
Technical Specifications
Capacity - Fuel Tank (L)117.3
Capacity - Hydraulic Tank (L)235
Capacity - Platform (kg)340
Capacity - Platform Unrestricted (kg)230
Gradeability (%)25-45
Load - Safe Working (kg)350
Load - Wheel (max) (kg)9163
No. of Persons (Max)2
Oscillation - Axle (m)0.2
Pressure - Ground Bearing (max) (kg/cm2)5.69
Range - Articulated Jib (°)130
Rotation - Horizontal Jib (°)0
Speed - 2WD (mph)3.48
Speed - 4WD (mph)3.48
Speed - Drive (Elevated) (mph)0.5
Speed - Drive (Lowered) (mph)3.6
Speed - Wind (max) (mph)28
Swing Non Continuous (°)360
Tyre TypeFoam Filled Lug Tread Tyres
Drive TypeHydraulic Drive
Output - Power12V
Rotation - Platform (°)180
